ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373718
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 700 2007-2008
REAR LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Tightening spacer
2510039-1-30-4000 2
2
Rubber bushing
2510039-1-30-6000 6
3
Bushing spacer tube
2510039-3-20-2000 2
4
Rear anti-rotation tube
2810153-20-1000 2
5
Rear A-arm clamping plate
2810202-7000
2
6
Rear right A-arm bracket
2810237-3000
1
Rear left A-arm bracket
2810237-4000
1
7
3/8” nc X 1” hex bolt
S1711-00608-052 2
8
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 8
9
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
10
5/8” nc nut
S4111-11000-022 2
Ref. Description
Item No.
Qty
11
3/8” nc self-locking nut
S4186-10600-022 10
12
5/8” nc self-locking nut
S4186-11000-022 2
13
3/8” dia lock washer
S4511-00600-002 2
14
3/8” dia flat washer
S4612-00600-002 2
15
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
16
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
17
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4

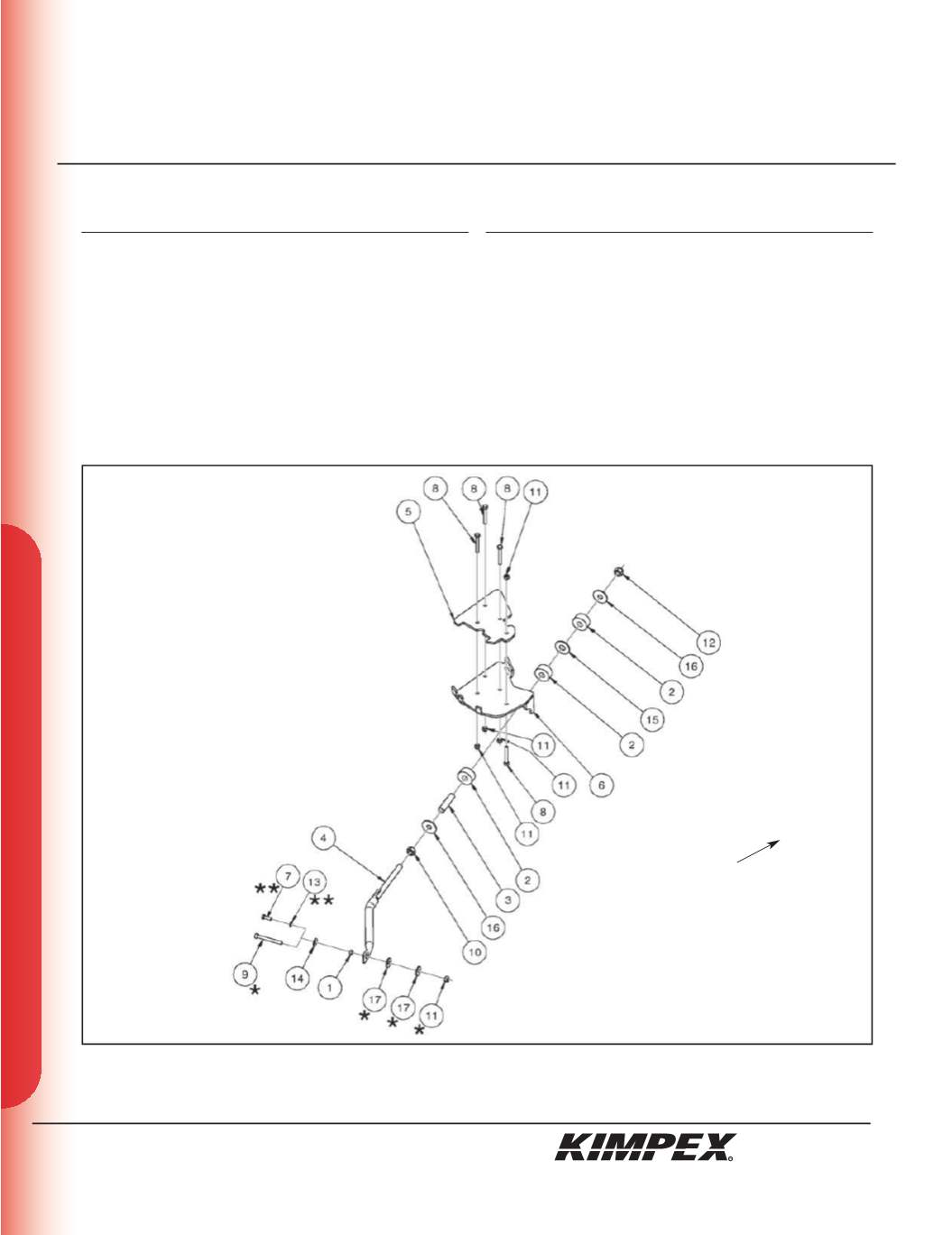

sketch B
RIGHT SIDE VIEW
Front of
the ATV
*
“Commander Wide Track” Models Only.
**
“Commander Trek” Models Only.
