ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373718
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 700 2007-2008
FRONT LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Front right A-arm bracket
2810202-5000
1
Front left A-arm bracket
2810202-6000
1
5
Front anti-rotation assembly
2810203-50
2
6
Front right A-arm clamping plate 2810237-1000
1
Front left A-arm clamping plate 2810237-2000
1
7
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 6
8
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
9
1/4” nc X 2” U-bolt
S2215-C1832-002 2
10
5/16” nc X 2-1/4” U-bolt
S2215-D2436-002 2
Ref. Description
Item No.
Qty
11
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
12
1/2” nf nut
S4111-20800-022 2
13
1/4” nc self-locking nut
S4186-10400-022 4
14
5/16” nc self-locking nut
S4186-10500-022 4
15
3/8” nc self-locking nut
S4186-10600-022 8
16
1/2” nc self-locking nut
S4186-10800-022 2
17
1/4” dia flat washer
S4612-00400-002 2
18
5/16” dia flat washer
S4612-00500-002 2
19
3/8” dia flat washer
S4612-00600-002 2
20
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
21
1/2” nf ball joint
S9113-C0500-002 2

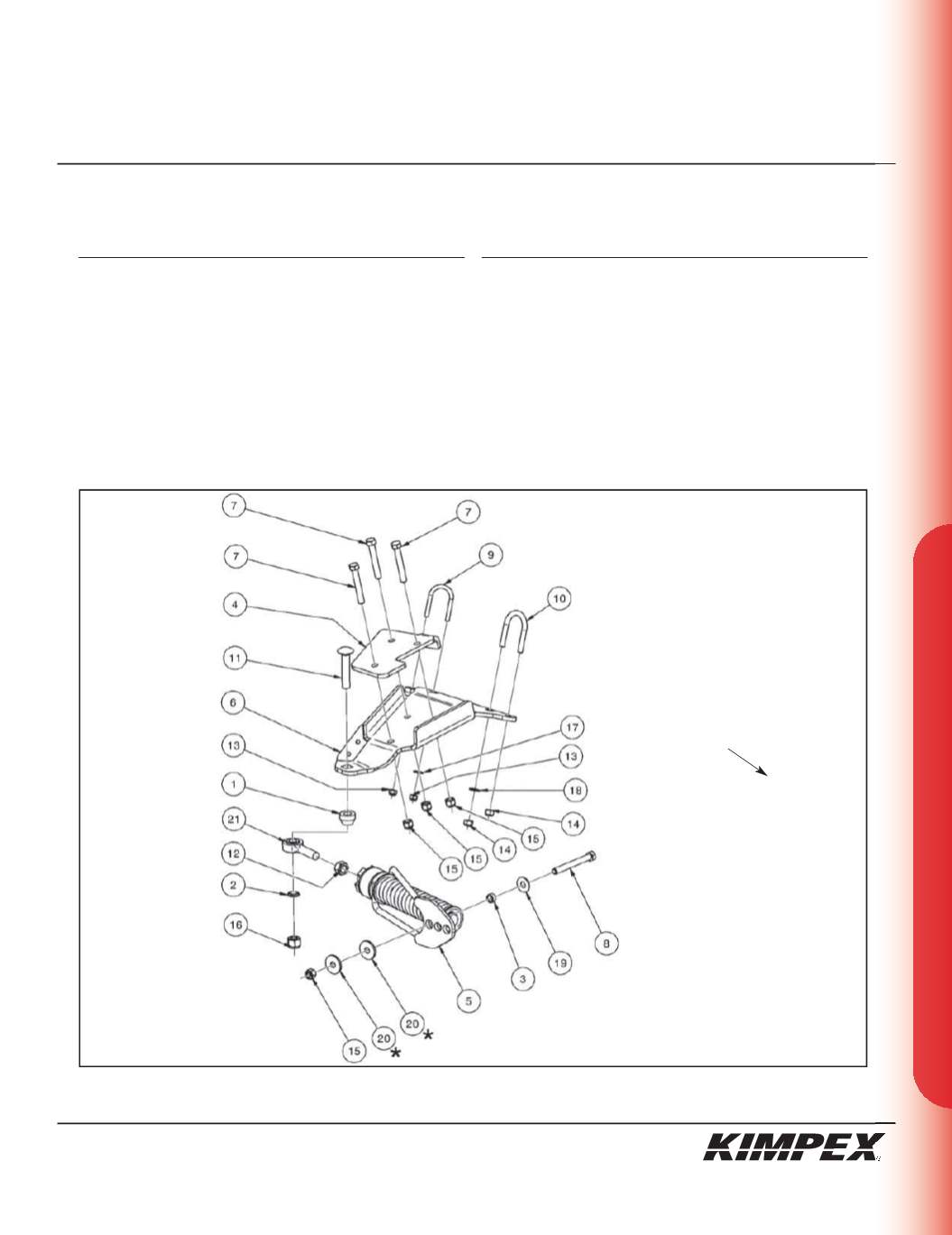

sketch A
RIGHT SIDE VIEW
Front of
the ATV
*
“Commander Wide Track” Models Only.
