ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373718
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 700 2007-2008
REAR A-ARM BRACKET INSTALLATION
(see sketch H)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Position the rear left A-arm bracket (#
6
) under the lower rear
A-arm so that the two parts fit snugly.
4)
Install the rear A-arm clamping plate (#
5
) over the lower rear A-
arm and fasten it to the A-arm bracket (#
6
) using
(4)
3/8” nc X 2-1/2”
hex bolts (#
8
) and
(4) 3/8” nc
self-locking nuts (#
11
).
Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.

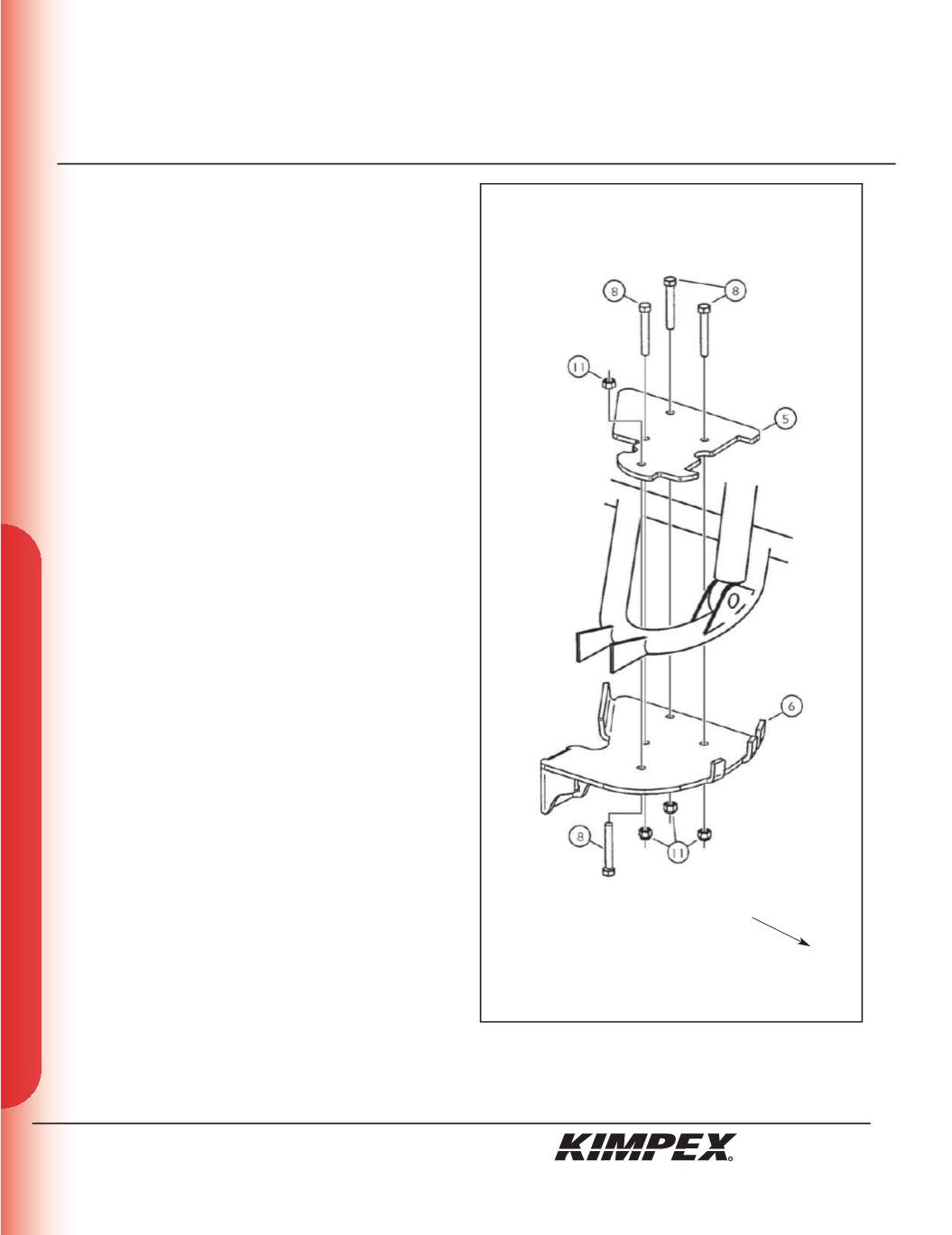

sketch H
LEFT
REAR VIEW
Rear of the ATV
