3/9
ATV
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810398
A-2810398 Rev. A
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374465
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
3

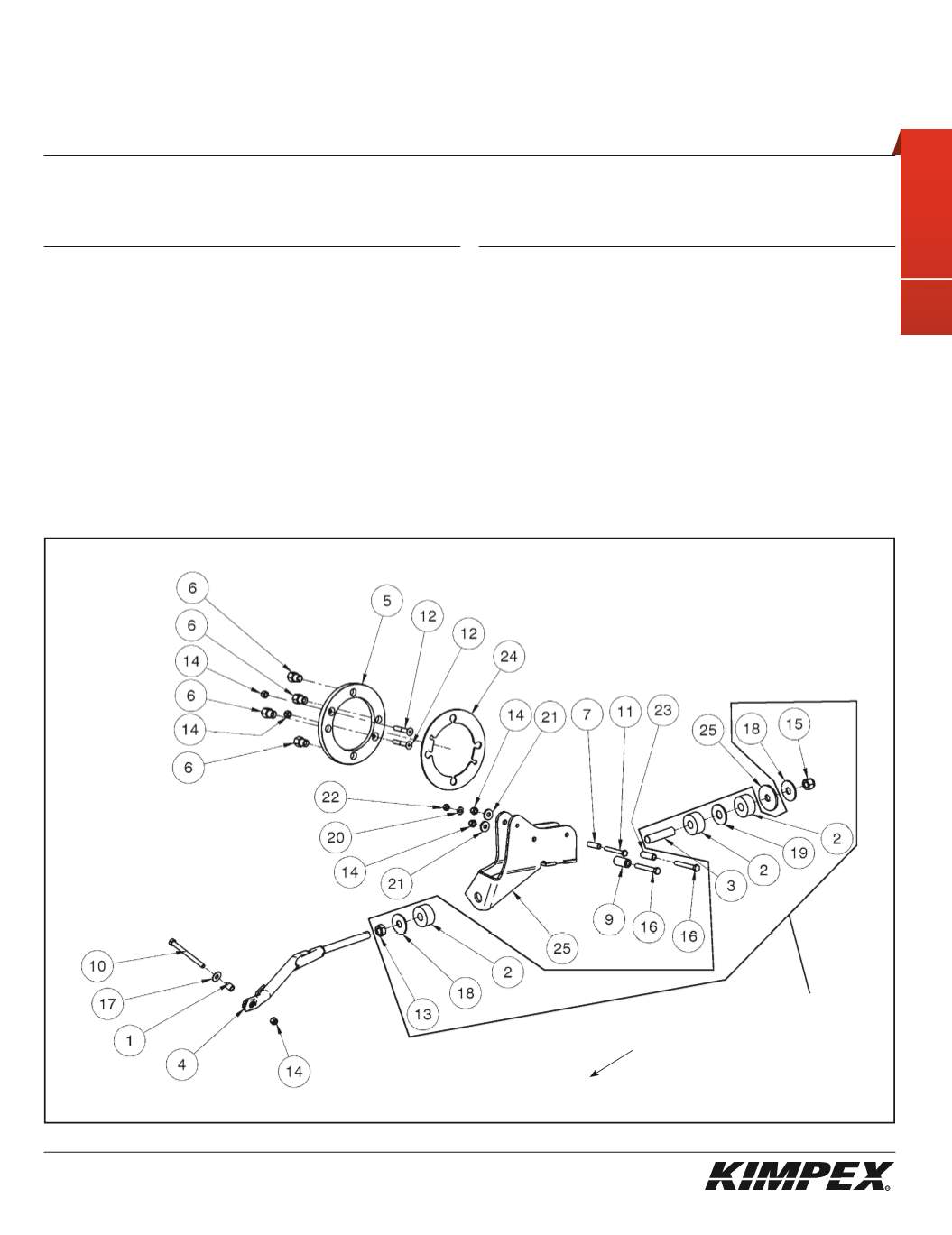

REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Tightening spacer
Q2212-10093
2
2
Rubber bushing
2510039-1-30-6000
6
3
Bushing spacer tube
2510039-3-20-2000
2
4
Rear anti-rotation tube
7810304-30-1000
2
5
Main axle adapter
2810153-5000
2
6
3/8”-24 “T” nut
2810153-9000
8
7
Rear tightening sleeve
2810398-3-4000
2
8
Rear left A-arm bracket
2810398-4-1000
1
Rear right A-arm bracket
2810398-3-1000
1
9
Middle tightening sleeve
2810398-3-3000
2
10
3/8” nc X 4-1/2” hex bolt
S1711-00636-052
2
11
5/16” nc X 2-1/2” hex bolt
S1711-00520-052
2
12
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000
4
13
5/8” nc nut
S4111-11000-022
2
Ref. Description
Item No.
Qty
14
3/8” nc self-locking nut
S4186-10600-022
10
15
5/8” nc self-locking nut
S4186-11000-022
2
16
3/8” nc X 2-3/4” hex bolt
S1711-00622-052
4
17
3/8” dia flat washer
S4612-00600-0S1
2
18
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022
4
19
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W
2
20
5/16” dia flat washer
S4612-00500-002
2
21
10mm I.D. X 25mm O.D. X 4mm
flat washer
S4651-M1000-0F1
4
22
5/16” nc self-locking nut
S4186-10500-022
2
23
Front tightening sleeve
2810398-3-2000
2
24
Wheel spacer
2810398-3-5000
2
25
Flat washer
2810371-3-6000
2
Rear of
the ATV
7810182-1
sketch B
LEFT SIDE VIEW
