FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374445
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
9
MAIN AXLE ADAPTER INSTALLATION
(see sketch K)
1)
Remove and discard two bolts retaining the sprocket to the main
axle of the track kit. Retain the flat washers.
NOTE:
Pay special attention to the orientation given to
the main axle adapter (#5) during installation. The lip, of
the main axle adapter, must fit perfectly the circumfer-
ence of the main axle.
2)
Position the main axle adapter (#
5
) and fasten using the
(2) 3/8” nc
X 2-1/4”
Allen socket machine screws (#
12
), the flat washers (#
A
)
removed in
step 1
, and the
(2) 3/8" nc
self-locking nuts (#
14
).
Torque to 20 ft-lbs.
3)
Install the track kit onto the hub of the ATV using the
(4) 3/8”-24
“T”
nuts (#
6
). Torque to 25 ft-lbs.
NOTE:
Recheck torque of the “T” nuts (#6) after one hour
of use.
4)
Repeat
steps 1
to
3
for the opposite side.

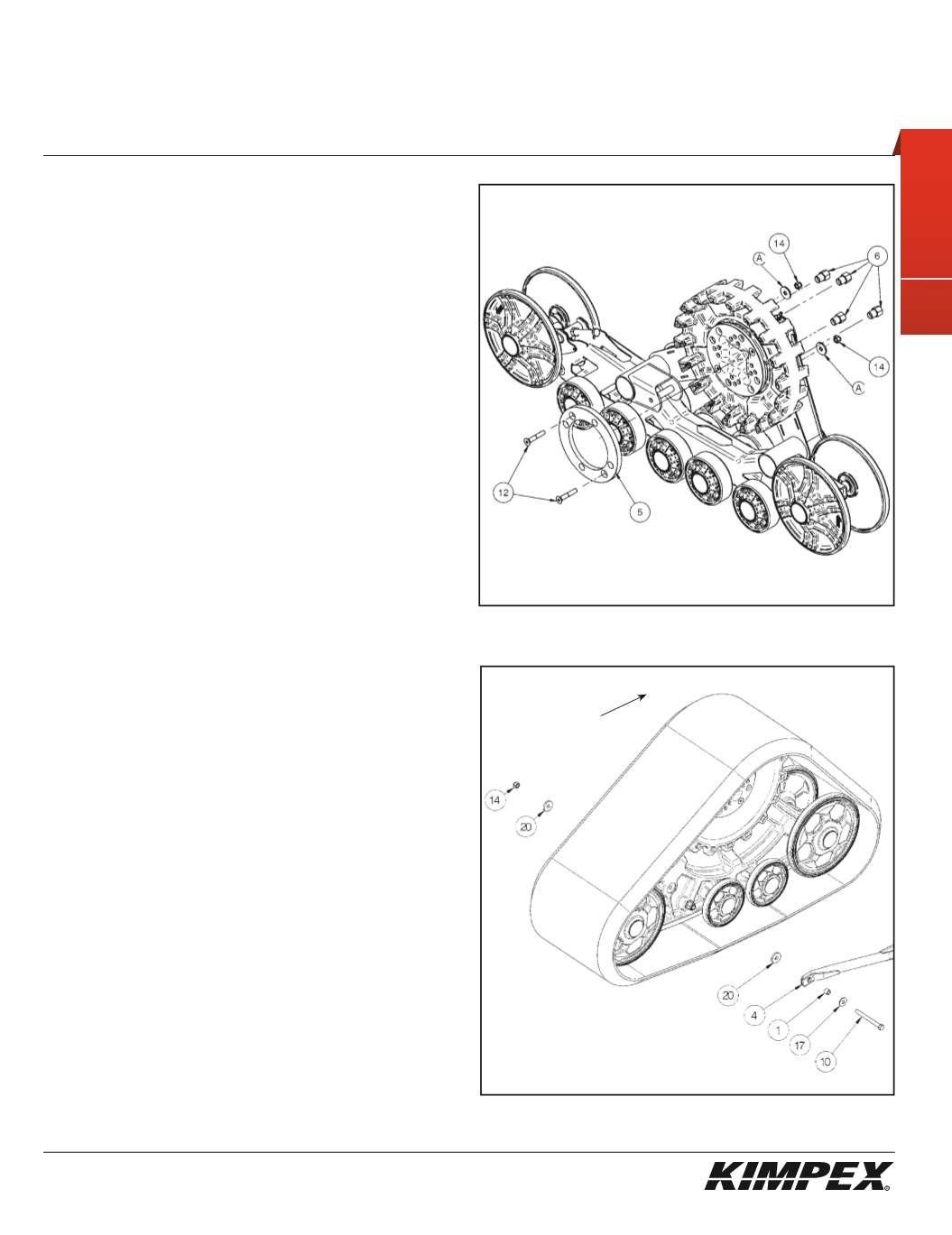

sketch K
COMMANDER WIDE TRACK AND WTX
REAR ANTI-ROTATION INSTALLATION
(see sketch L)
1)
Assemble the free extremity of the rear anti-rotation (#
4
) to the
hole made for this purpose in the plastic frame of the Track Kit
using the
3/8” nc X 4-1/2”
hex bolt (#
10
), the
3/8” dia
flat washer
(#
17
), the tightening spacer (#
1
), the
(2)
support washers (#
20
),
and the
3/8” nc
self-locking nut (#
14
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE:
Refer to the track kit manual to complete the
installation.
sketch L
LEFT
REAR VIEW
Front of
the ATV
