3/10
ATV
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810374
A-2810374 Rev. A
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374445
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
3
REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Tightening spacer
Q2212-10093
2
2
Rubber bushing
2510039-1-30-6000
6
3
Bushing spacer tube
2510039-3-20-2000
2
4
Rear anti-rotation tube
7810304-30-1000
2
5
Main axle adapter
2810153-5000
2
6
3/8”-24 “T” nut
2810153-9000
8
7
Rear A-arm clamping plate
2810374-3-2000
2
8
Rear left A-arm bracket
2810374-4-1000
1
Rear right A-arm bracket
2810374-3-1000
1
9
3/8” nc X 1-1/2” hex bolt
S1711-00612-052
2
10
3/8” nc X 4-1/2” hex bolt
S1711-00636-052
2
11
3/8” nc X 2-1/2” carriage bolt
S2412-0E040-0A2
8
Ref. Description
Item No.
Qty
12
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000
4
13
5/8” nc nut
S4111-11000-022
2
14
3/8” nc self-locking nut
S4186-10600-022
14
15
5/8” nc self-locking nut
S4186-11000-022
2
16
3/8” dia lock washer
S4511-00600-002
2
17
3/8” dia flat washer
S4612-00600-0S1
2
18
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022
4
19
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W
2
20
Support washer
2510235-10-1000
4

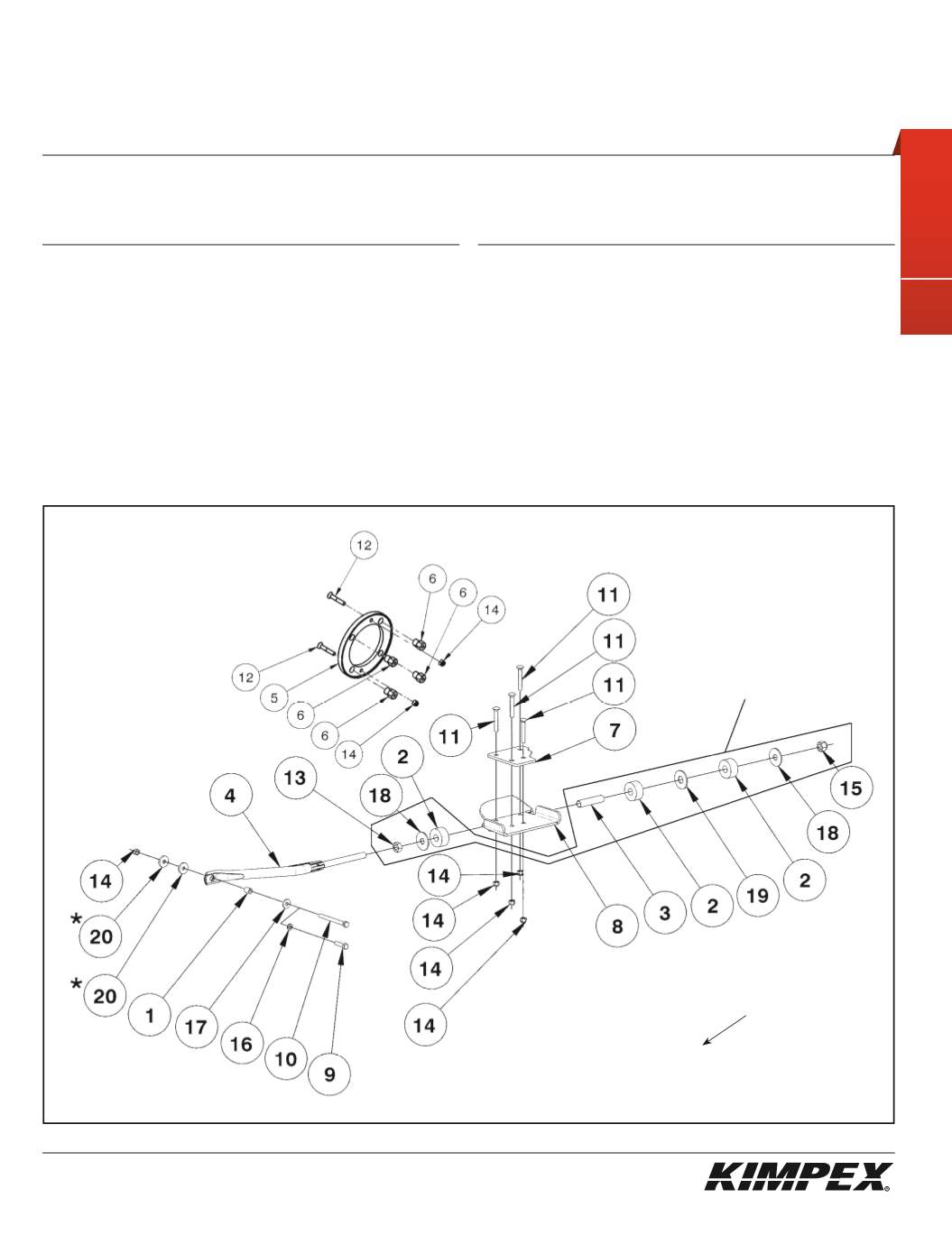

sketch B
LEFT SIDE VIEW
Rear of
the ATV
373032
*
Commander WIDE TRACK and WTX Models Only.
