FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374440
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
9
COMMANDER WIDE TRACK AND WTX
REAR ANTI-ROTATION INSTALLATION
(see sketch L)
1)
Assemble the free extremity of the rear anti-rotation
(#
7
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4-1/4”
hex bolt
(#
13
), the
3/8” dia
flat washer (#
20
), the tightening
spacer (#
11
), the
(2)
washers (#
4
), and the
3/8” nc
self-
locking nut (#
17
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual to complete
the installation.

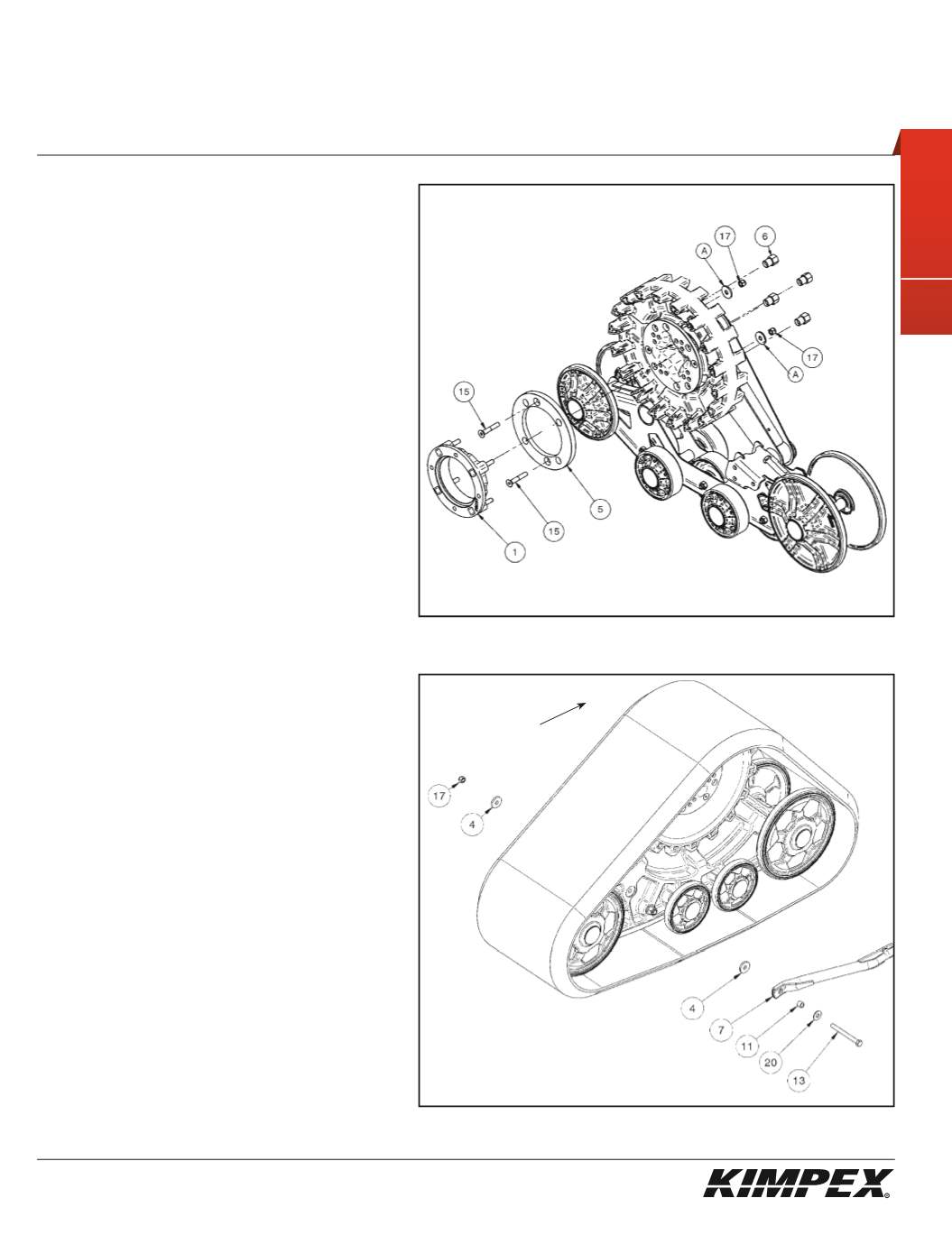

sketch L
LEFT
REAR VIEW
Front of
the ATV
MAIN AXLE ADAPTER INSTALLATION
(see sketch K)
1)
Remove and discard two bolts retaining the sprocket
to the main axle of the Track Kit. Retain the flat
washers.
NOTE :
Pay special attention to the orientation
given to the main axle adapter (#5) during
installation. The lip, of the main axle adapter,
must fit perfectly the circumfer-ence of the main
axle.
2)
Position the spacer (#
1
) onto the hub and secure with
the existing nuts.
3)
Position the main axle adapter (#
5
) and fasten using
the
(2) 3/8” nc X 2-1/4”
Allen socket machine screws (#
15
),
the flat washers (#
A
) removed in
step 1
, and the
(2)
3/8” nc
self-locking nuts (#
17
). Torque to 20 ft-lbs.
4)
Install the Track Kit onto the hub of the ATV using the
(4) 3/8” nf
“T” nuts (#
6
). Torque to 25 ft-lbs.
NOTE :
Recheck torque of the “T” nuts (#6) after
one hour of use.
5)
Repeat
steps 1
to
4
for the opposite side.
sketch K
