FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374440
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
7
COMMANDER WIDE TRACK ET WTX
FRONT ANTI-ROTATION INSTALLATION
(see sketch G)
1)
Assemble the free extremity of the front anti-rotation
(#
7
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 3-3/4”
hex bolt
(#
24
), the
3/8” dia
flat washer (#
21
), the tightening
spacer (#
3
), the neoprene flat washer (#
23
), the
(2)
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washers (#
4
), and the
3/8” nc
self-locking nut (#
18
).
Apply a tightening torque of 23 ft-lbs.
WARNING :
Attention, many holes are available
on the anti-rotation fixation plate. Take the one
which will make so that the track kit is correctly
in contact with the ground.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual to complete
the installation.

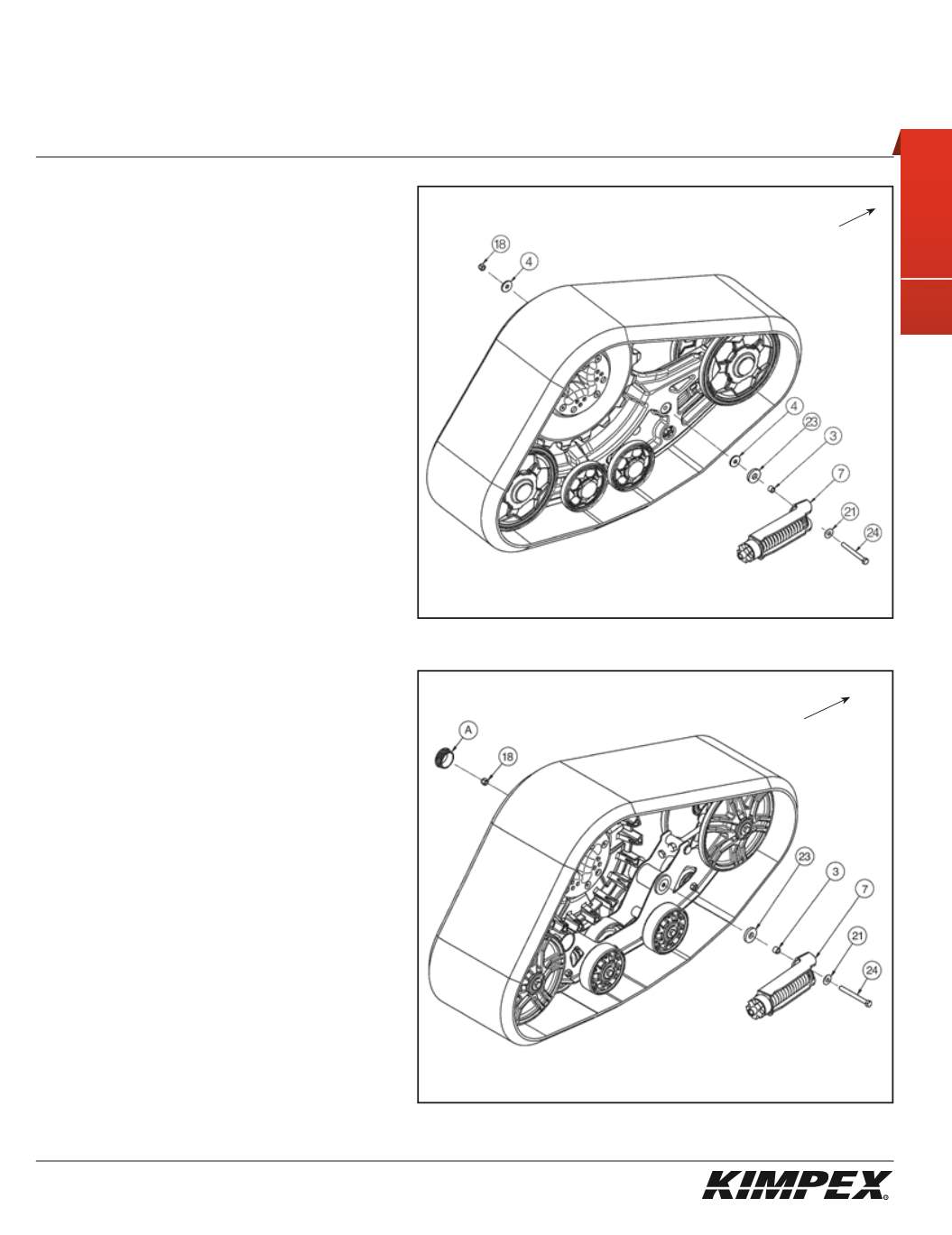

sketch G
LEFT FRONT VIEW
Front of
the ATV
COMMANDER TREX UTV
FRONT ANTI-ROTATION INSTALLATION
(see sketch H)
1)
Remove the wheel cap (#
A
).
2)
Assemble the free extremity of the front anti-rotation
(#
7
) to the hole made for this purpose in the frame of
the Track Kit using the
3/8” nc X 3-3/4”
hex bolt (#
24
), the
3/8” dia
flat washer (#
21
), the tightening spacer (#
3
),
the neoprene flat washer (#
23
), and the
3/8” nc
self-
locking nut (#
18
).
Apply a tightening torque of 23 ft-lbs.
WARNING :
Attention, many holes are available
on the anti-rotation fixation plate. Take the one
which will make so that the track kit is correctly
in contact with the ground.
3)
Reinstall the wheel cap (#
A
) removed in
step 1
.
4)
Repeat
steps 1
to
3
for the opposite side.
NOTE :
Refer to the track kit manual to complete
the installation.
sketch H
LEFT
FRONT VIEW
Front of the ATV
