FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374440
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
10

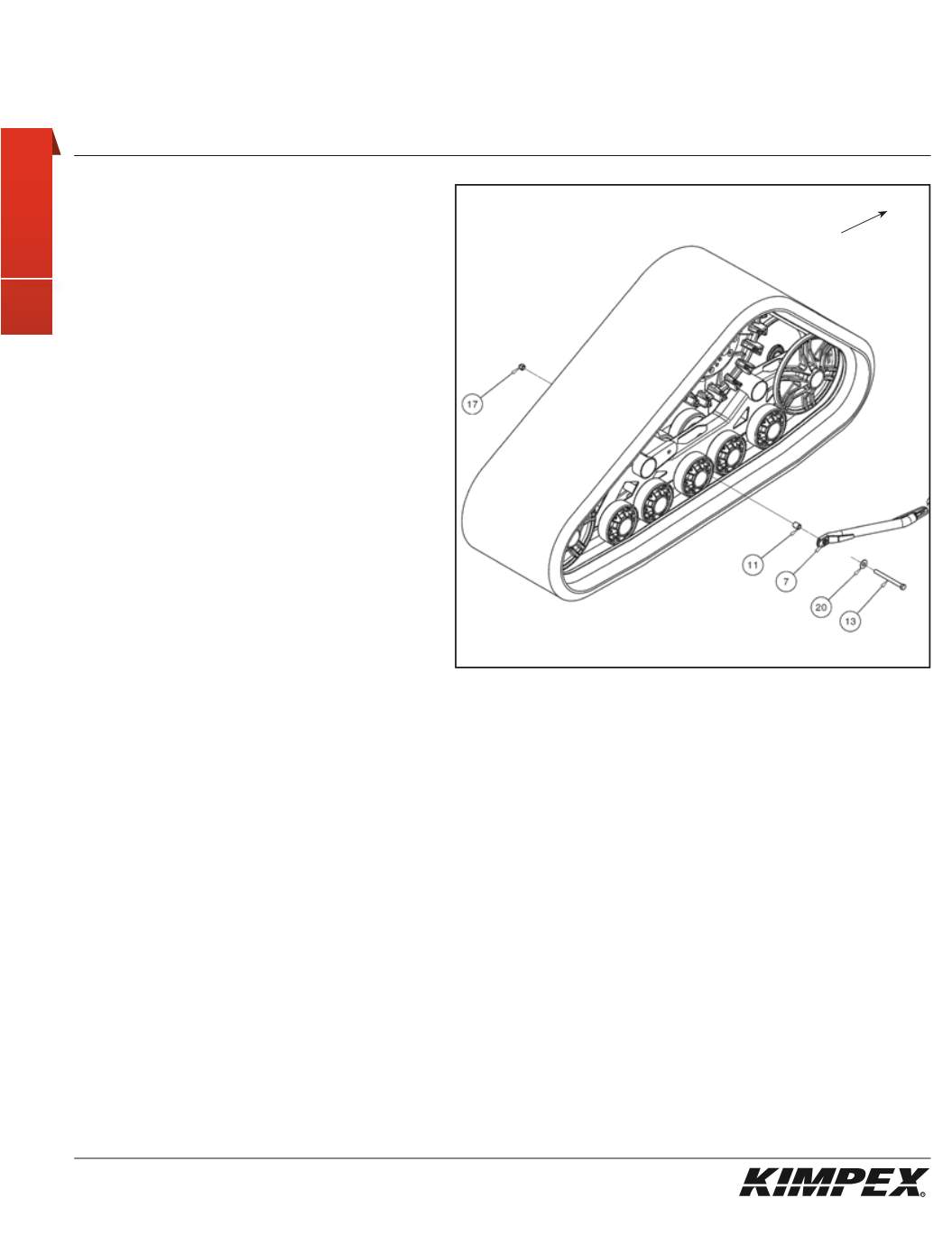

sketch M
LEFT
REAR VIEW
COMMANDER TREX UTV
REAR ANTI-ROTATION INSTALLATION
(see sketch M)
1)
Assemble the free extremity of the rear anti-rotation
(#
7
) to the hole made for this purpose in the frame of
the Track Kit using the
3/8” nc X 4-1/2”
hex bolt (#
13
), the
3/8” dia
flat washer (#
20
), and the tightening spacer
(#
11
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual to complete
the installation.
Front of the ATV
