FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374445
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
6
MAIN AXLE ADAPTER INSTALLATION
(see sketch F)
1)
Remove and discard two bolts retaining the sprocket to the
main axle of the track kit. Retain the flat washers.
NOTE:
Pay special attention to the orientation given to
the main axle adapter (#4) during installation. The lip, of
the main axle adapter, must fit perfectly the circumfer-
ence of the main axle.
2)
Position the main axle adapter (#
4
) and fasten using the
(2) 3/8” nc X 2-1/4”
Allen socket machine screws (#
12
), the flat
washers (#
A
) removed in
step 1
, and the
(2) 3/8" nc
self-locking
nuts (#
15
). Torque to 20 ft-lbs.
3)
Install the Track Kit onto the hub of the ATV using the
(4) M10-1.25
“T” nuts (#
7
). Torque to 25 ft-lbs.
NOTE:
Recheck torque of the “T” nuts (#7) after one
hour of use.
4)
Repeat
steps 1
to
3
for the opposite side.

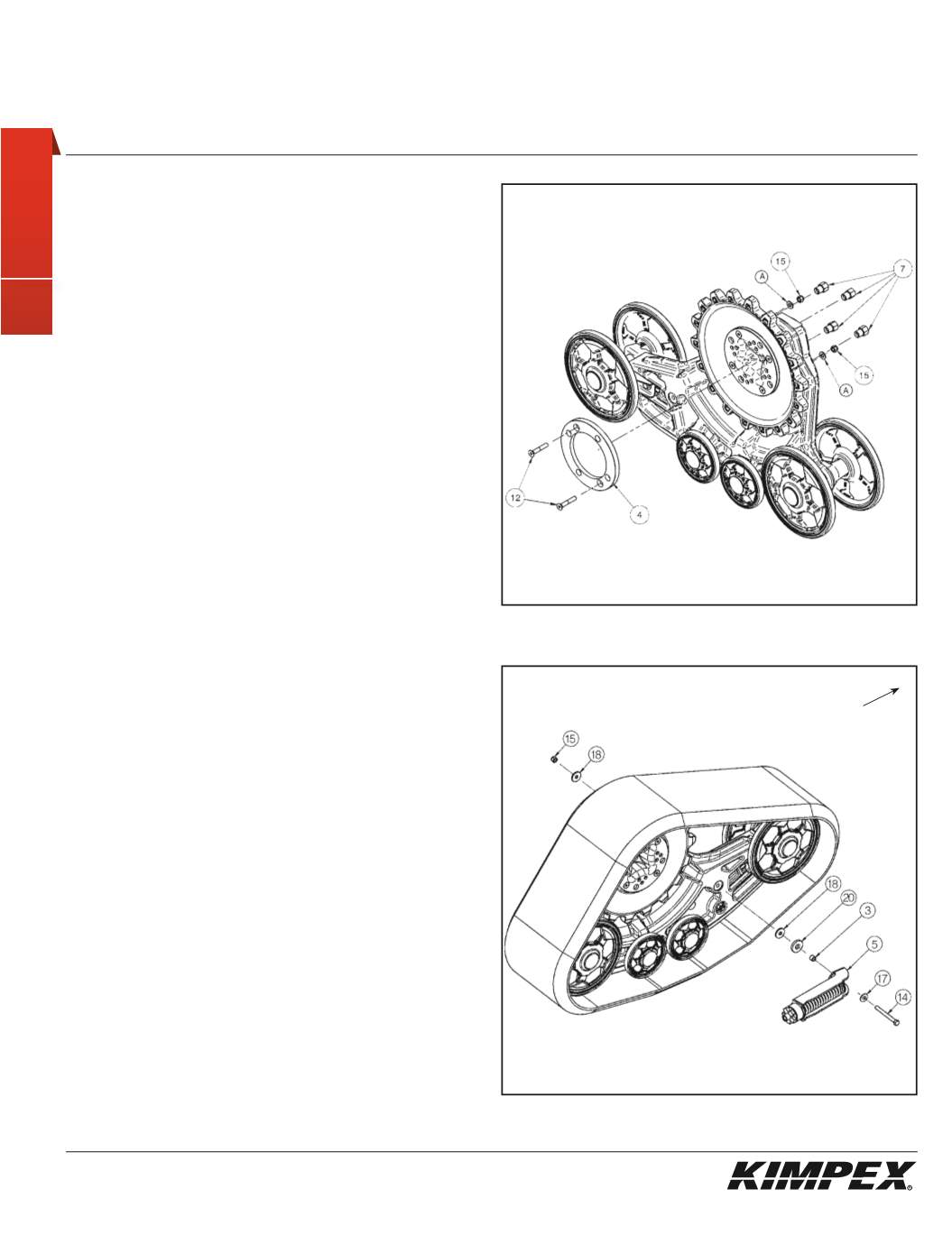

sketch F
COMMANDER WIDE TRACK AND WTX
FRONT ANTI-ROTATION INSTALLATION
(see sketch G)
1)
Assemble the free extremity of the front anti-rotation (#
5
) to the
hole made for this purpose in the plastic frame of the Track Kit
using the
3/8” nc X 4”
hex bolt (#
14
), the
3/8” dia
flat washer (#
17
),
the tightening spacer (#
3
), the neoprene flat washer (#
20
), the
(2)
support washers (#
18
), and the
3/8” nc
self-locking nut (#
15
).
Apply a tightening torque of 23 ft-lbs.
WARNING:
Attention, many holes are available on the
anti-rotation fixation plate. Take the one which will make
so that the track kit is correctly in contact with the
ground.
2)
Repeat
step 1
for the opposite side.
NOTE:
Refer to the track kit manual to complete the
installation.
sketch G
LEFT FRONT VIEW
Front of
the ATV
