FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374445
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
10
COMMANDER TREX UTV
REAR ANTI-ROTATION INSTALLATION
(see sketch M)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4-1/4”
hex bolt
(#
10
), the
3/8” dia
flat washer (#
17
), the tightening
spacer (#
1
), and the
3/8” nc
self-locking nut (#
14
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE:
Refer to the track kit manual to complete
the installation.

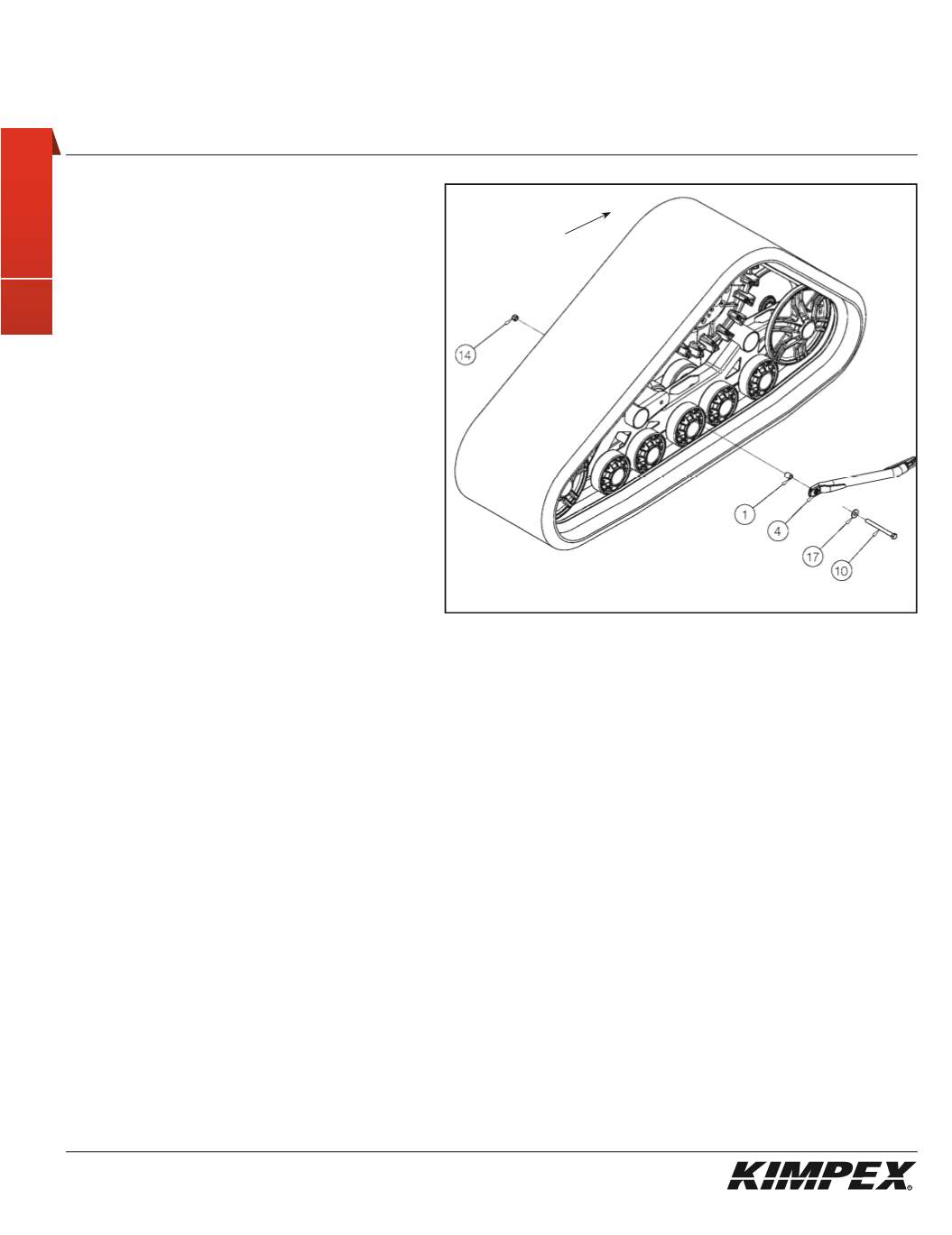

sketch M
LEFT
REAR VIEW
Front of
the ATV
