FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374465
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
8
REAR ANTI-ROTATION INSTALLATION
(see sketch I)
1)
Screw the
5/8” nc
nut (#
13
) onto the threaded part of the anti-rotation tube (#
4
).
2)
Install the
3/4” I.D. X 2” O.D. X 1/8”
flat washer (#
18
) and the bushing spacer tube (#
3
) onto the threaded part of the anti-rotation tube (#
4
).
3)
Install the rubber bushing (#
2
) over the bushing spacer tube (#
3
).
4)
Slide the anti-rotation assembly into the hole on the bottom of the rear A-arm bracket (#
8
).
5)
Install the rubber bushing (#
2
), the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
19
), and the other rubber bushing (#
2
) over the bushing spacer
tube (#
3
).
6)
Install the
3/4” I.D. X 2” O.D. X 1/8”
flat washer (#
18
) onto the threaded part of the anti-rotation tube (#
4
).
7)
Screw the
5/8” nc
self-locking nut (#
15
) onto the threaded part of the anti-rotation tube (#
4
). Do not overtighten.
NOTE:
Refer to the Track Kit manual to complete the installation.
8)
Repeat
steps 1
to
7
for the opposite side.

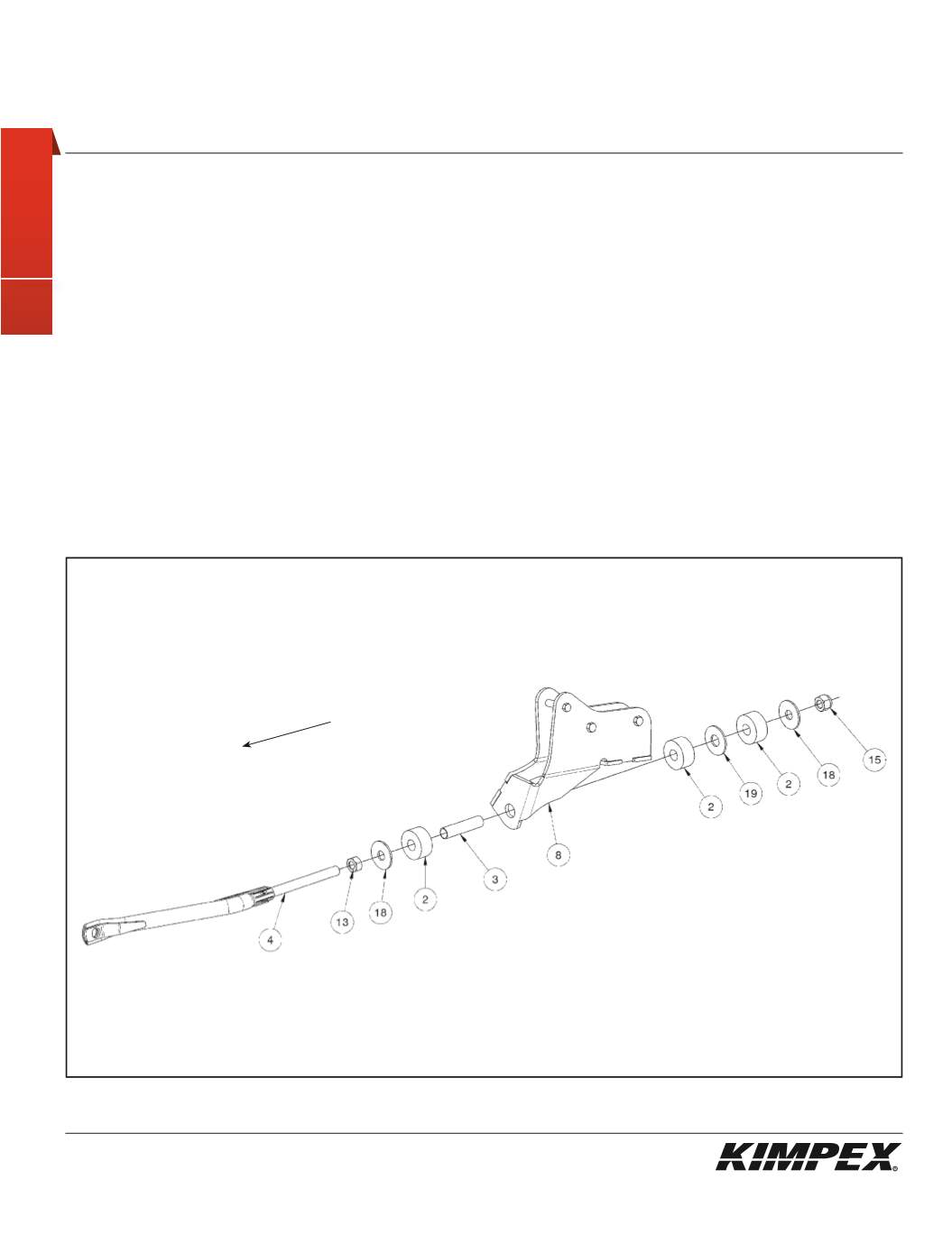

sketch I
LEFT
REAR VIEW
Rear of the ATV
