FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375412
For Commander Wide Track, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
6
Front of the ATV

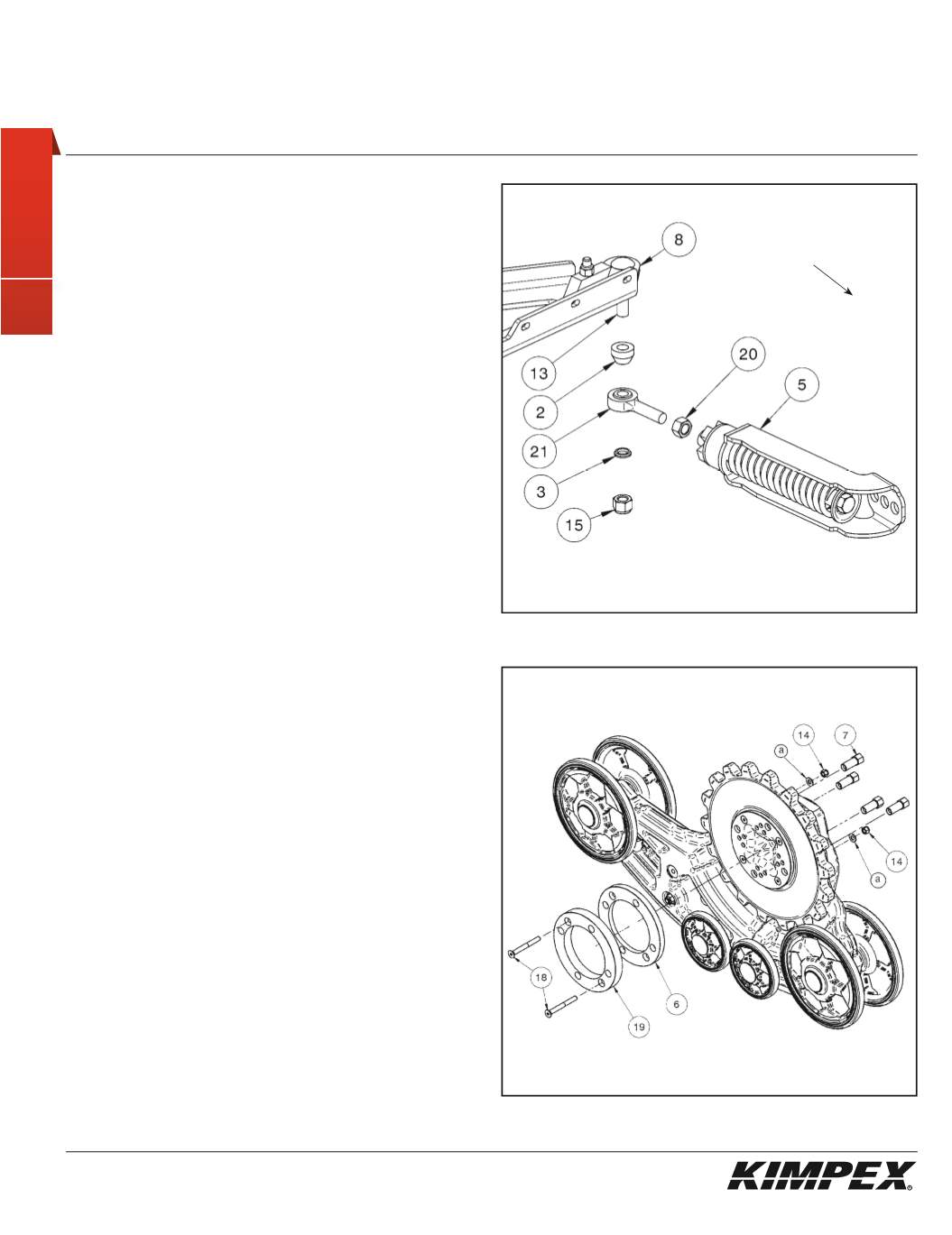

sketch E
LEFT
FRONT VIEW
FRONT ANTI-ROTATION INSTALLATION
(see sketch E)
NOTE:
Pay special attention to the orientation given to
spacers (#2 and #3) during installation.
1)
Assemble the ball joint (#
21
) and the
1/2” nf
nut (#
20
) to the
front anti-rotation assembly (#
5
).
2)
Install the large ball joint spacer (#
2
) with the narrow part facing
down onto the
1/2” nc X 2-1/2”
carriage bolt (#
13
) installed in
step
3 at the “FRONT A-ARM BRACKET INSTALLATION” section
.
3)
Install the ball joint of the anti-rotation assembly (#
21
) onto the
bolt (#
13
), below the large ball joint spacer (#
2
).
Install the short ball joint spacer (#
3
) with the narrow part facing
up, below the anti-rotation assembly (#
5
).
4)
Tighten the assembly with the
1/2” nc
self-locking nut (#
15
).
Torque to 65 ft-lbs.
WARNING:
If the bolts are not sufficiently tightened,
there is a risk of them becoming loose, of parts detaching
and risk of loss of control over the vehicle, as well as risk
of personal injury.
5)
Rotate the anti-rotation assembly (#
5
) towards the center of the
ATV to prevent it from interfering with the installation of the
track kit.
6)
Repeat
steps 1
to
5
for the opposite side.
MAIN AXLE ADAPTER INSTALLATION
(see sketch F)
1)
Remove and discard two bolts retaining the sprocket to the
main axle of the track kit. Retain the flat washers.
NOTE:
Pay special attention to the orientation given to
the main axle adapter (#6) during installation. The lip, of
the main axle adapter, must fit perfectly the circumfer-
ence of the main axle.
2)
Position the main axle adapter (#
6
) and the additional main axle
adapter (#
19
). Fasten using the
(2) 3/8” nc X 3-1/2”
Allen socket
machine screws (#
18
), the flat washers (#
A
) removed in
step 1
,
and the
(2) 3/8" nc
self-locking nuts (#
14
).
Torque to 20 ft-lbs.
3)
Install the Track Kit onto the hub of the ATV using the
(4) 3/8” nc
“T” nuts (#
7
). Torque to 25 ft-lbs.
NOTE:
Recheck torque of the “T” nuts (#7) after one
hour of use.
4)
Repeat
steps 1
to
3
for the opposite side.
