FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375412
For Commander Wide Track, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
10
COMMANDER WIDE TRACK AND WTX

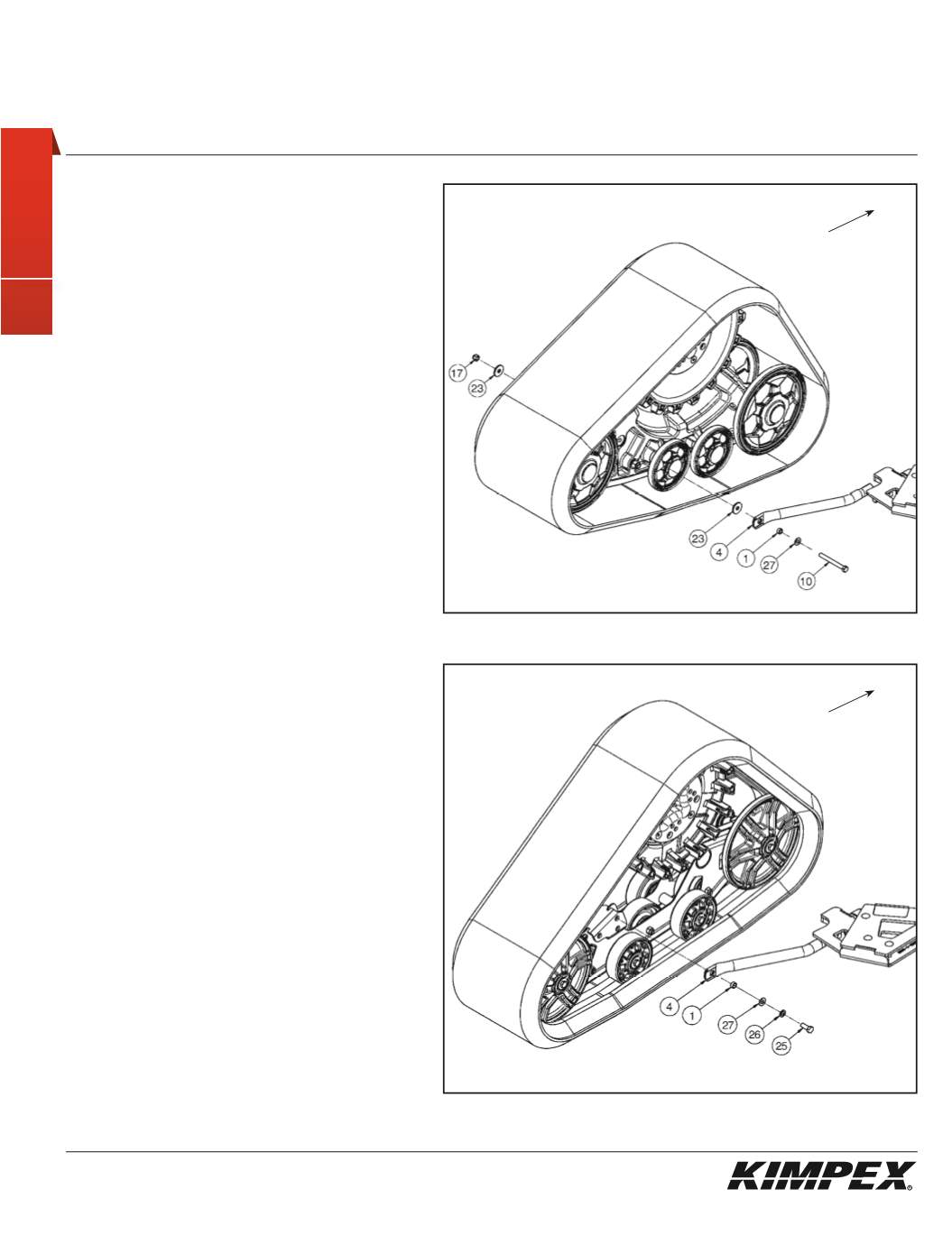

REAR ANTI-ROTATION INSTALLATION
(see sketch M)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4”
hex bolt
(#
10
), the
3/8” dia
flat washer (#
27
), the tightening
spacer (#
1
), the
(2) 3/8” I.D. X 1-1/4” O.D. X .120”
Fender
washers (#
23
), and the
3/8” nc
self-locking nut (#
17
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE:
Refer to the track kit manual to complete
the installation.
sketch M
LEFT
REAR VIEW
Front of the ATV
COMMANDER TREX 2.0
REAR ANTI-ROTATION INSTALLATION
(see sketch N)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the frame of
the Track Kit using the
3/8” nc X 1-1/4”
hex bolt (#
25
), the
3/8” dia
lock washer (#
26
), the
3/8” dia
flat washer (#
27
),
and the tightening spacer (#
1
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE:
Refer to the track kit manual to complete
the installation.
sketch N
LEFT
REAR VIEW
Front of the ATV
