FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375412
For Commander Wide Track, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
2
FRONT LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Clamping block
2510039-1-20-1000
2
2
Large ball joint spacer
2510039-1-20-2000
2
3
Short ball joint spacer
2510039-1-20-4000
2
4
Tightening spacer
Q2212-10082
2
5
Front anti-rotation assembly
7810304-10A
2
6
Main axle adapter
2810153-5000
2
7
3/8” nc “T” nut
2810174-6000
8
8
Front left A-arm bracket
2810174-2000
1
Front right A-arm bracket
2810174-1000
1
9
Front left A-arm clamping plate
2810174-4000
1
Front right A-arm clamping plate 2810174-3000
1
10
3/8” nc X 1-3/4” hex bolt
S1711-00614-052
4
11
3/8” nc X 2” hex bolt
S1711-00616-052
2
Ref. Description
Item No.
Qty
12
3/8” nc X 3-3/4” hex bolt
S1711-00630-052
2
13
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2
2
14
3/8” nc self-locking nut
S4186-10600-022
12
15
1/2” nc self-locking nut
S4186-10800-022
2
16
3/8” dia flat washer
S4612-00600-0S1
2
17
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082
4
18
3/8” nc X 3-1/2”
Allen socket machine screw
S3161-20D56-050
4
19
Additional main axle adapter
2810174-5000
2
20
1/2” nf nut
S4111-20800-022
2
21
1/2” nf ball joint
S9113-C0500-002
2
22
Neoprene flat washer
7810304-2000
2

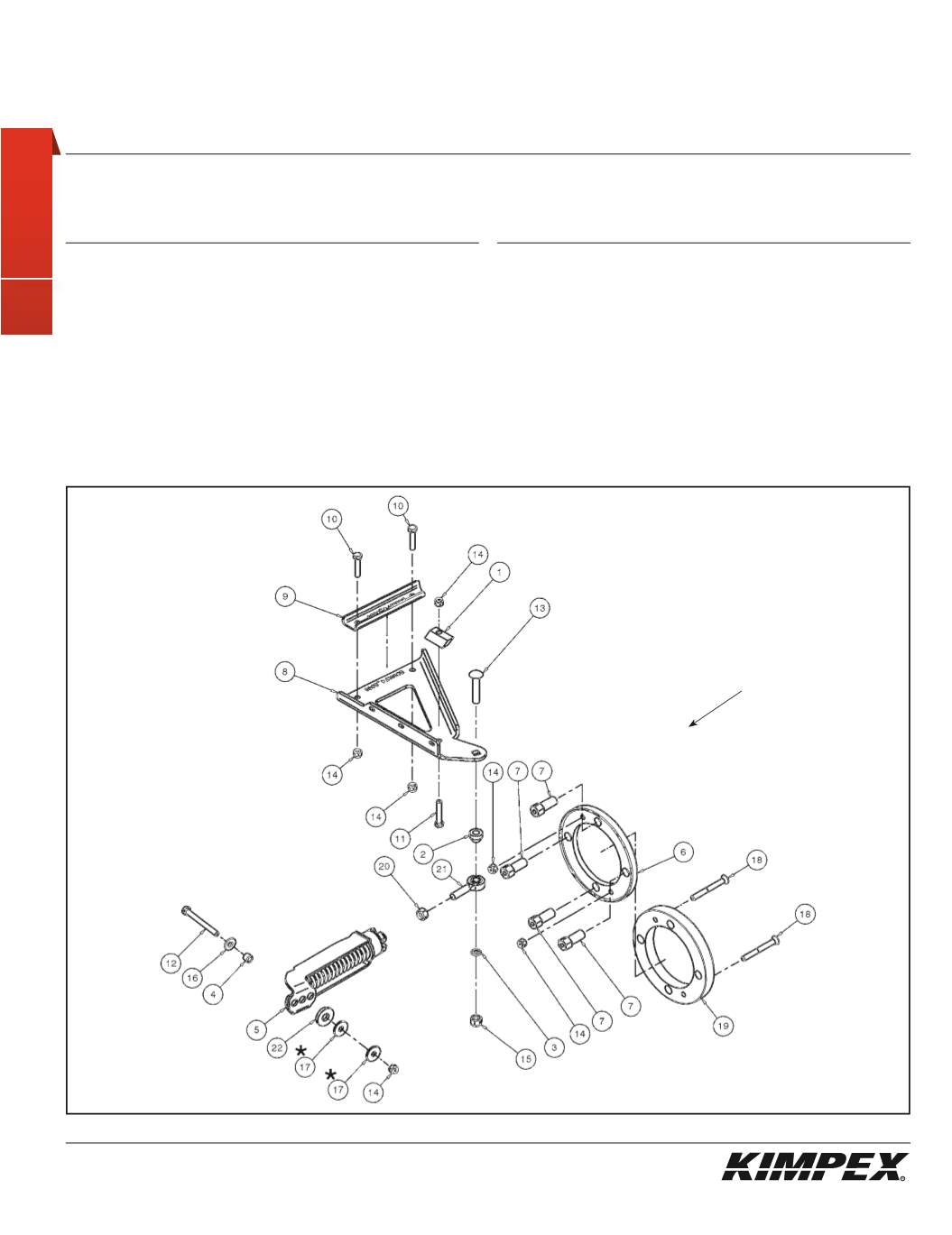

sketch A
LEFT SIDE VIEW
Front of
the ATV
*
Commander Wide Track and WTX Models Only.
