FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375412
For Commander Wide Track, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
3
REAR LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Tightening spacer
Q2212-10082
2
2
Rubber bushing
2510039-1-30-6000
6
3
Bushing spacer tube
2510039-3-20-2000
2
4
Rear anti-rotation tube
7810304-40-1000
2
5
Rear left A-arm bracket
2810153-4000
1
Rear right A-arm bracket
2810153-3000
1
6
Main axle adapter
2810153-5000
2
7
Rear A-arm bracket guide
2810153-8000
2
8
3/8” nc “T” nut
2810153-9000
8
9
9/16” O.D. X .397” I.D. X 3/8”
spacer
Q2212-10067
4
10
3/8” nc X 4” hex bolt
S1711-00632-052
2
11
5/16” nc X 2-3/4” U-bolt
S2215-D1639-002
2
12
1/4” nc X 3/4” carriage bolt
S2412-0C012-0A2
4
13
3/8” nc X 1-1/2” carriage bolt
S2412-0E024-0A2
4
14
5/8” nc nut
S4111-11000-022
2
15
1/4” nc self-locking nut
S4186-10400-022
4
Ref. Description
Item No.
Qty
16
5/16” nc self-locking nut
S4186-10500-022
4
17
3/8” nc self-locking nut
S4186-10600-022
10
18
5/8” nc self-locking nut
S4186-11000-022
2
19
5/16” dia flat washer
S4612-00500-002
4
20
3/8” dia flat washer
S4612-00600-002
4
21
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022
2
22
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W
4
23
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082
4
24
3/8” nc X 2-1/4”
Allen socket machine screw
S3161-B0D36-000
4
25
3/8” nc X 1-1/4” hex Bolt
S1711-00610-052
2
26
3/8” dia lock washer
S4511-00600-002
2
27
3/8” dia flat washer Gr. 8
S4612-00600-0S1
2

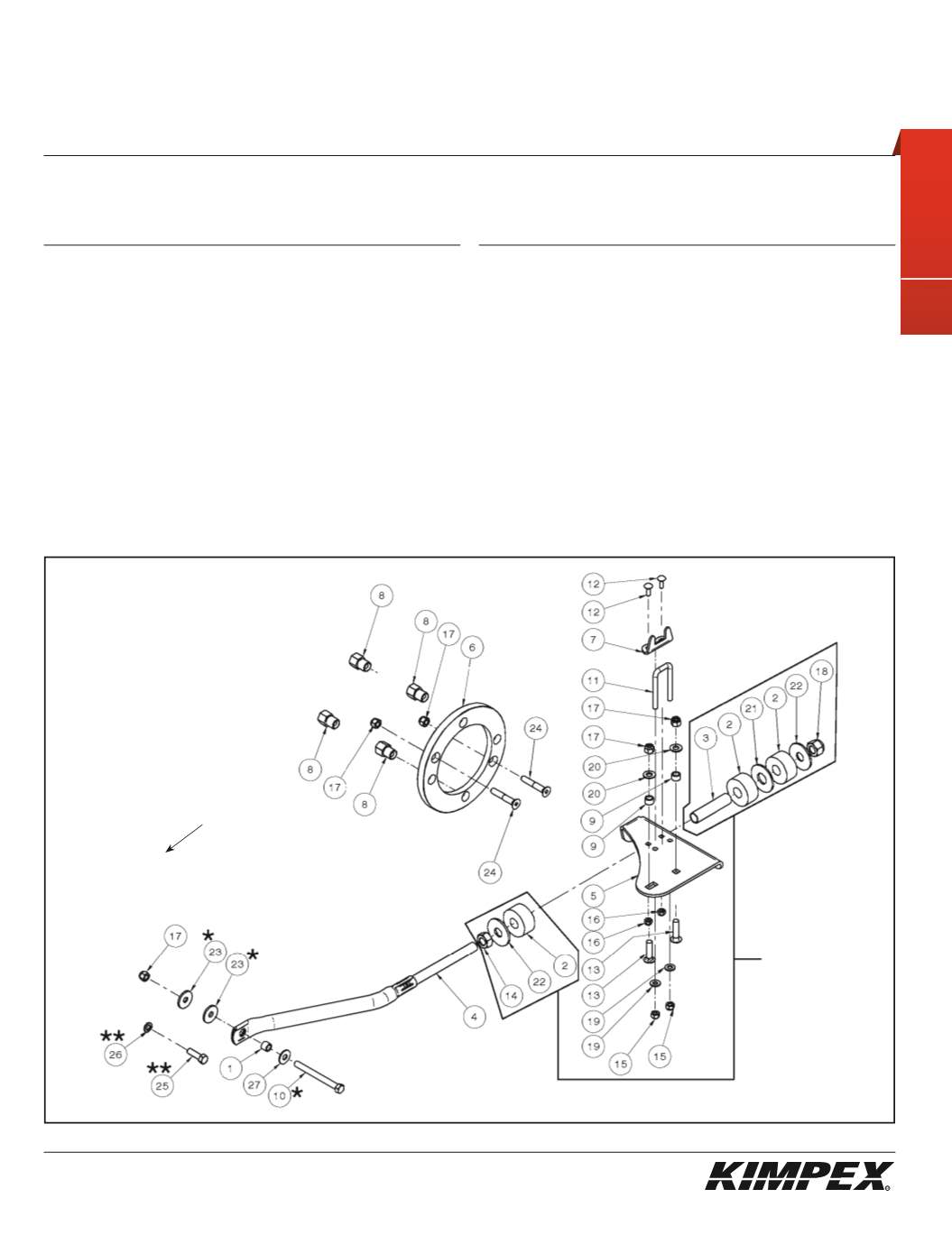

sketch B
*
Commander Wide Track and
WTX Models Only.
**
Commander TREX 2.0 Model Only.
LEFT SIDE VIEW
373032
Rear of
the ATV
