FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375413
For Commander Wide Track, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
2
Not used
in this kit
Front of
the ATV

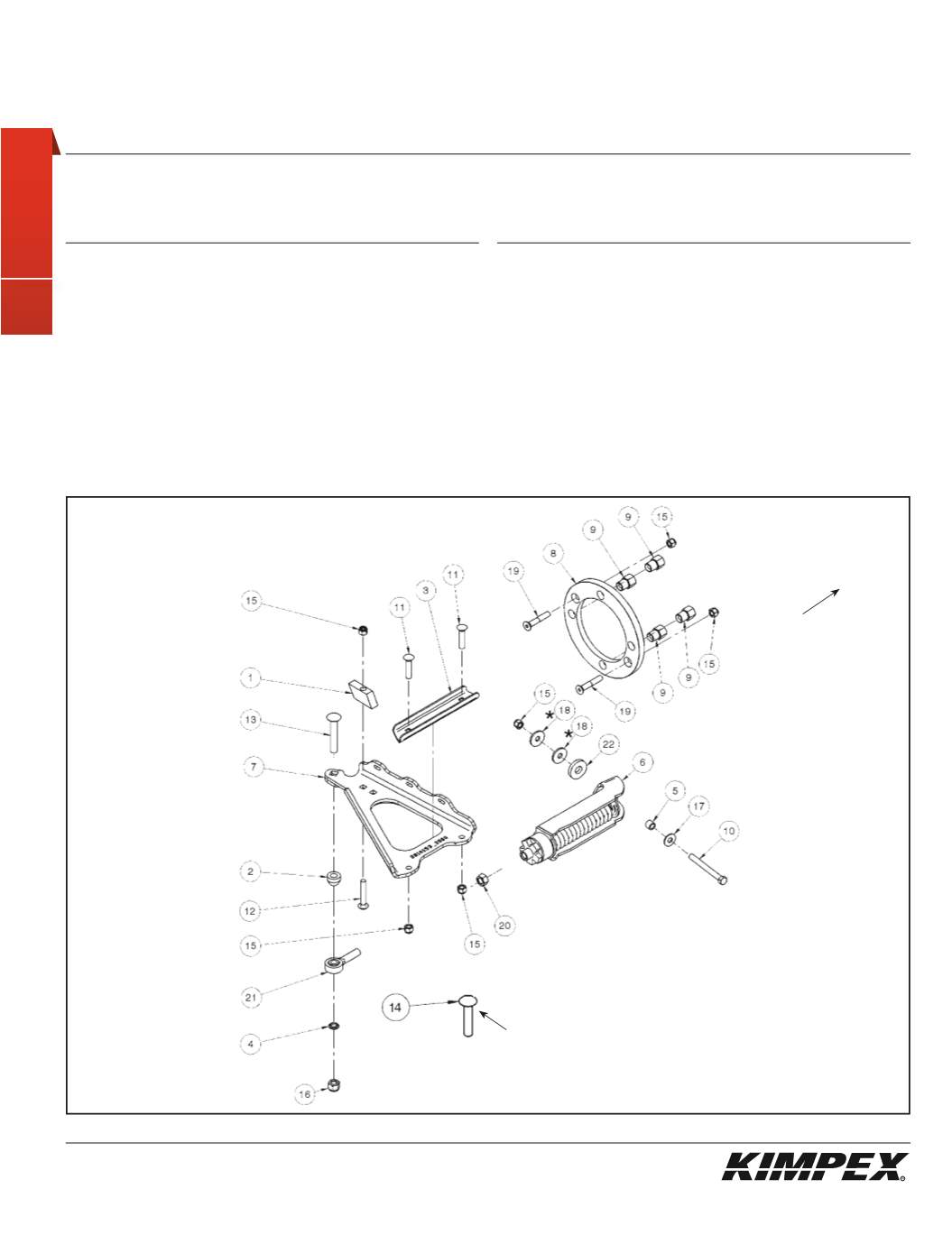

FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Clamping block
2510039-1-20-1000
2
2
Large ball joint spacer
2510039-1-20-2000
2
3
Front left A-arm clamping plate
2510039-2-20-2000
1
Front right A-arm clamping plate 2510039-1-20-3000
1
4
Short ball joint spacer
2510039-1-20-4000
2
5
Tightening spacer
Q2212-10082
2
6
Front anti-rotation assembly
7810304-10A
2
7
Front left A-arm bracket
2810153-2000
1
Front right A-arm bracket
2810153-1000
1
8
Main axle adapter
2810153-5000
2
9
3/8” nc “T” nut
2810153-9000
8
10
3/8” nc X 3-3/4” hex bolt
S1711-00630-052
2
11
3/8” nc X 1-3/4” carriage bolt
S2412-0E028-0A2
4
12
3/8” nc X 2-1/4” carriage bolt
S2412-0E036-0A2
2
Ref. Description
Item No.
Qty
13
1/2” nc X 3” carriage bolt
S2412-0G048-0A2
2
14
1/2” nc X 2-1/2” carriage bolt
(Not used in this kit)
S2412-0G040-0A2
2
15
3/8” nc self-locking nut
S4186-10600-022
12
16
1/2” nc self-locking nut
S4186-10800-022
2
17
3/8” dia flat washer
S4612-00600-0S1
2
18
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082
4
19
3/8” nc X 2-1/4”
Allen socket machine screw
S3161-B0D36-000
4
20
1/2” nf nut
S4111-20800-022
2
21
1/2” nf ball joint
S9113-C0500-002
2
22
Neoprene flat washer
7810304-2000
2
LEFT SIDE VIEW
sketch A
*
Commander
Wide Track and WTX
Models Only.
