FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375201
For “Commander Wide Track” and “Commander Trek” Track Kit
MOUNTING INSTRUCTIONS
8
SNOWPLOW ADAPTER INSTALLATION
(see sketch H)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it fromaccidentally
falling during the installation. If not properly secured/
supported, serious physical injury could occur.
1)
Fasten the two hooks (#
A
) onto the snowplow adapter (#
B
)
using six
5/16” nc X 3/4”
carriage bolts (#
C
) and six
5/16” nc
self-
locking nuts (#
D
) (included in the snowplow adapter kit no.
073297) as illustrated.
(see sketch I)
2)
Fasten the
(2)
rear anti-rotation arm supports (#
6
) onto the
snowplow adapter (#
B
) using the
(2)
rear anti-rotation arm
support spacers (#
5
),
(4) 3/8” nc X 1-1/4”
carriage bolts (#
11
),
(4) 3/8” nc
self-locking nuts (#
18
),
(2) 5/16” nc X 1”
carriage bolts
(#
14
), and
(2) 5/16” nc
self-locking nuts (#
17
).
NOTE :
Refer to the snowplow adapter mounting
instructions (no. 273204) to finish the installation.
• TO FINISH THE INSTALLATION OF “COMMANDER
WIDE TRACK” MODELS, SEE PAGES 9 AND 10.
• TO FINISH THE INSTALLATION OF “COMMANDER
TREK” MODELS, SEE PAGES 11 AND 12.

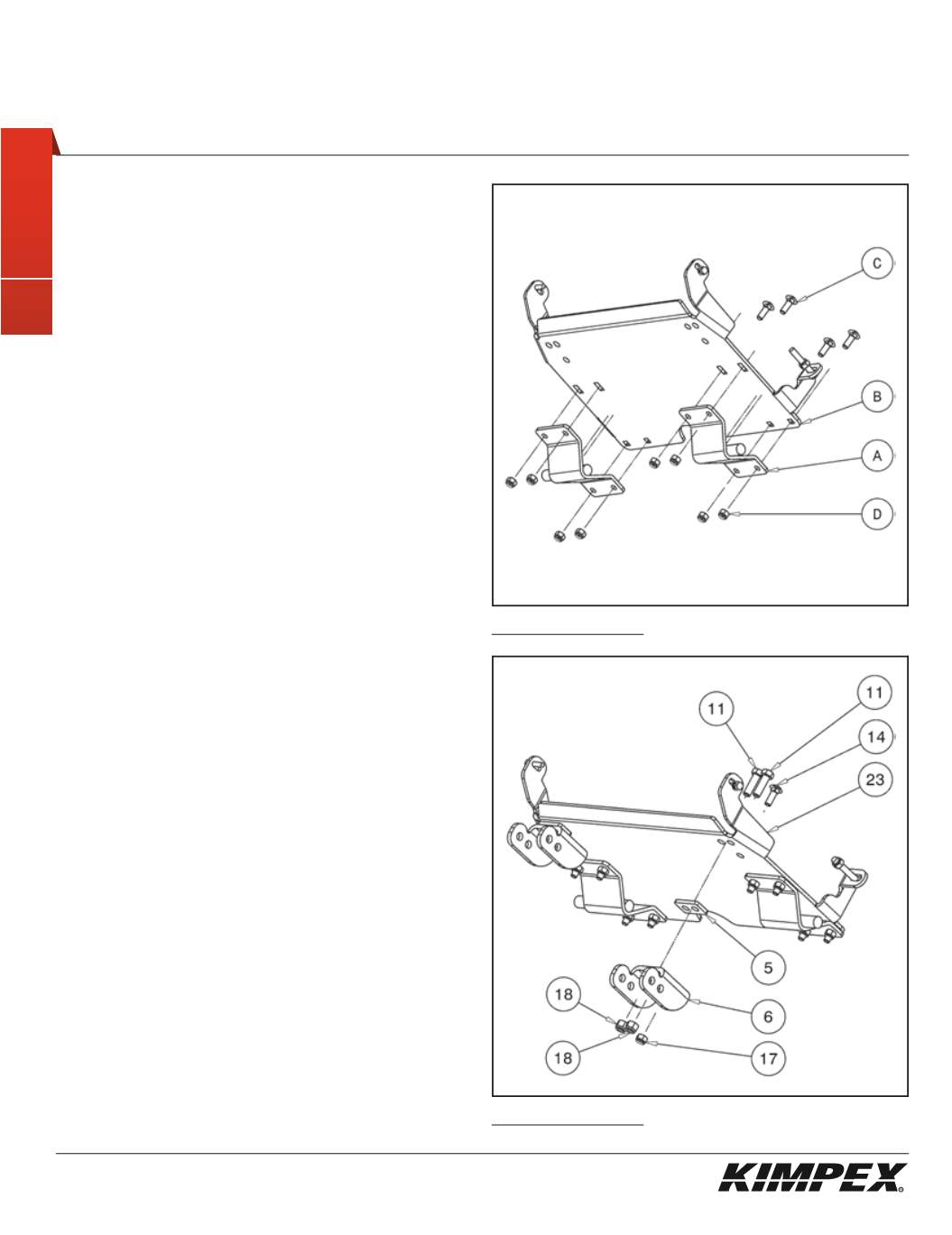

sketch H
sketch I
