FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375201
For “Commander Wide Track” and “Commander Trek” Track Kit
MOUNTING INSTRUCTIONS
10
“COMMANDER WIDE TRACK”
REAR ANTI-ROTATION INSTALLATION
(see sketch M)
WARNING :
Prior to installation, turn off
the engine, put in two-wheel driving mode
and the transmission in neutral, and block
the wheels.
1)
Raise the rear of the ATV off the ground and
remove the wheels.
WARNING :
When the ATV is raised, make
sure that it is properly secured/supported
to prevent it from accidentally falling during
the installation. If not properly secured/
supported, serious physical injury could
occur.
2)
Screw the
5/8” nc
nut (#
15
) onto the threaded
part of the anti-rotation arm (#
4
).
3)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer
(#
21
) and the bushing spacer tube (#
2
) onto the
threaded part of the anti-rotation arm (#
4
).
4)
Install the rubber bushing (#
1
) over the bushing
spacer tube (#
2
).
5)
Slide the anti-rotation arm assembly into the hole
of the rear right anti-rotation arm bracket (#
7
).
(see sketch N)
6)
Fasten the other end of the rear anti-rotation arm
(#
4
) onto the rear anti-rotation arm support (#
6
)
installed in
step 2 at the “SNOWPLOW
ADAPTER INSTALLATION”
using the
3/8” nc X 3”
hex bolt (#
12
) and the
3/8” nc
nylock nut (#
18
).
(see sketch M)
7)
Install the rubber bushing (#
1
), the
3/4” I.D. X 2”
O.D. X 1/8”
flat washer (#
20
), and the other rubber
bushing (#
1
) over the bushing spacer tube (#
2
).
8)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer
(#
21
) onto the threaded part of the anti-rotation
arm (#
4
).
9)
Screw the
5/8” nc
self-locking nut (#
19
) onto the
threaded part of the anti-rotation arm (#
4
). Do
not overtighten.
NOTE :
Refer to the Track Kit manual to
complete the installation.
10)
Repeat
steps 2
to
9
for the opposite side.

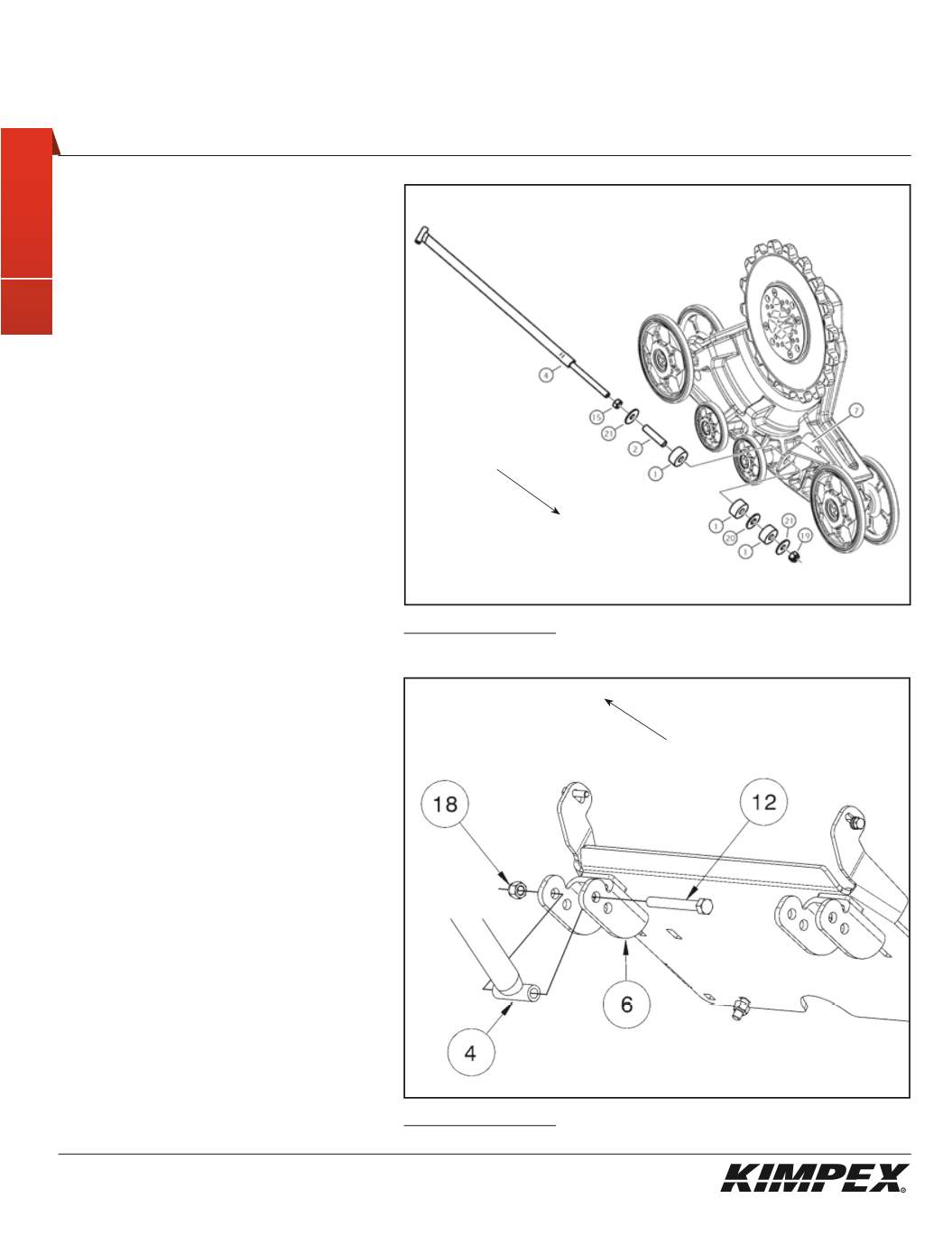

sketch M
RIGHT
REAR VIEW
Rear of the ATV
sketch N
Rear of the ATV
