FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375201
For “Commander Wide Track” and “Commander Trek” Track Kit
MOUNTING INSTRUCTIONS
6
FRONT ANTI-ROTATION INSTALLATION
(see sketch E)
NOTE :
Pay special attention to the orientation given to spacers (#1 and #2) during installation.
1)
Assemble the ball joint (#
17
) and the
1/2” nf
nut (#
12
) to the front anti-rotation assembly (#
5
).
2)
Install the large ball joint spacer (#
1
) with the narrow part facing down onto the
1/2” nc X 2-1/2”
carriage bolt (#
11
) installed in
step 3 of
the “FRONT A-ARM BRACKET INSTALLATION” section.
3)
Install the ball joint of the anti-rotation assembly (#
17
) onto the bolt (#
11
), below the large ball joint spacer (#
1
). Install the short ball
joint spacer (#
2
) with the narrow part facing up, below the anti-rotation assembly (#
5
).
4)
Tighten the assembly with the
1/2” nc
self-locking nut (#
14
). Torque to 55 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and
risk of loss of control over the vehicle, as well as risk of personal injury.
5)
Rotate the anti-rotation assembly (#
5
) towards the center of the ATV to prevent it from interfering with the installation of the Track Kit.
NOTE :
Refer to the Track Kit manual to complete the installation.
6)
Repeat
steps 1
to
5
for the opposite side.
IMPORTANT :
Make sure to use the correct mounting hole on the anti-rotation (#5) when you assemble to the Track Kit
(see sketch E).

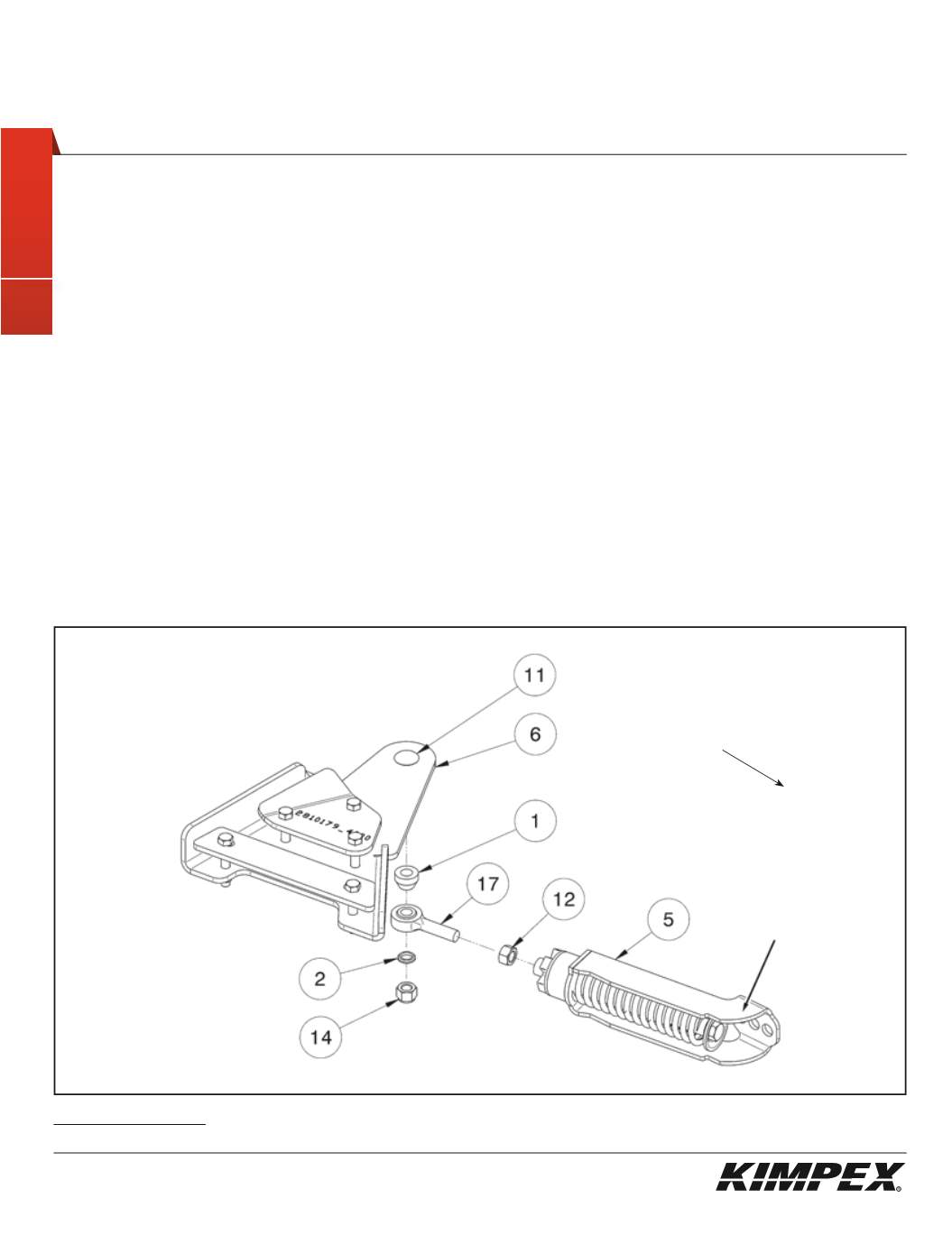

sketch E
LEFT
FRONT VIEW
Front of the ATV
MOUNTING HOLE
