ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373613
For "Commander" track kit / Suzuki Vinson 500
Front of
the ATV
FRONT ANTI-ROTATION INSTALLATION
(see sketch D)
NOTE :
Pay special attention to the orientation given to spacers (#1 and #2) during installation.
1)
Install the large ball joint spacer (#
1
) with the narrow part facing down onto the
1/2” nc X 2-1/2”
carriage bolt (#
9
) installed in
step 3 of
the “FRONT A-ARM BRACKET INSTALLATION” section.
2)
Install the ball joint of the anti-rotation assembly (#
4
) onto the bolt (#
9
), below the large ball joint spacer (#
1
). Install the short ball joint
spacer (#
2
) with the narrow part facing up, below the anti-rotation assembly (#
4
).
3)
Tighten the assembly with the
1/2” nc
self-locking nut (#
11
). Torque to 55 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and risk
of loss of control over the vehicle, as well as risk of personal injury.
4)
Rotate the anti-rotation assembly (#
4
) towards the center of the ATV to prevent it from interfering with the installation of the Track Kit.
NOTE :
Refer to the Track Kit manual for the correct adjustment (section 3, page 17).
5)
Repeat
steps 1
to
4
for the opposite side.

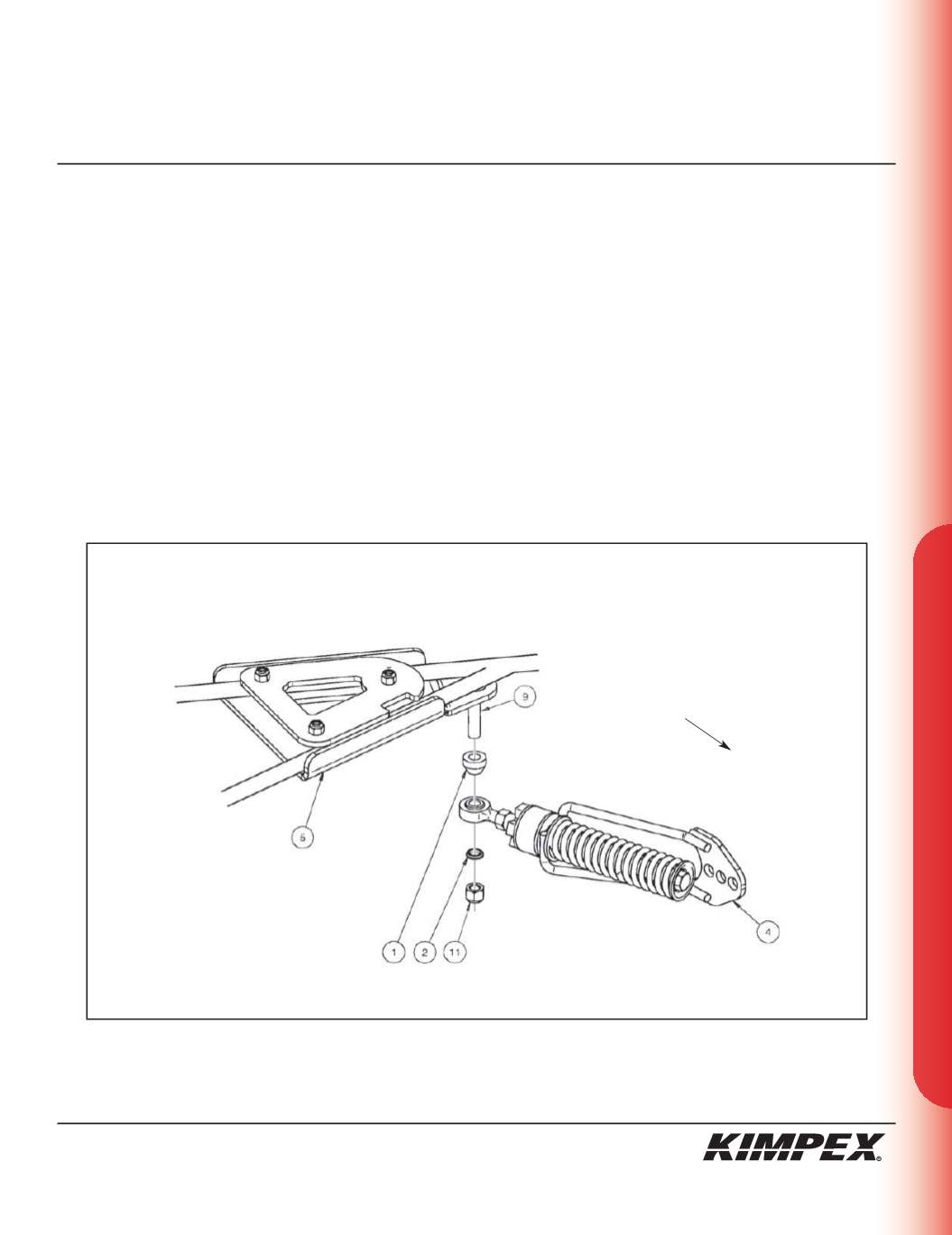

sketch D
LEFT
FRONT VIEW
