ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373612
For "Commander" track kit / Suzuki King Quad
REAR ANTI-ROTATION INSTALLATION
(see sketch G)
1)
Screw the
5/8” nc
nut (#
9
) onto the threaded part of the anti-rotation tube (#
2
).
2)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
5
) and the bushing spacer tube (#
4
) onto the threaded part of the anti-rotation tube
(#
2
).
3)
Install the rubber bushing (#
11
) over the bushing spacer tube (#
4
).
4)
Slide the anti-rotation assembly into the hole on the bottom of the rear A-arm bracket (#
1
).
5)
Install the rubber bushing (#
11
), the
3/4” I.D. X 2” O.D. X 1/8”
flat washer (#
10
), and the other rubber bushing (#
11
) over the bushing spacer
tube (#
4
).
6)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
5
) onto the threaded part of the anti-rotation tube (#
2
).
7)
Screw the
5/8” nc
self-locking nut (#
8
) onto the threaded part of the anti-rotation tube (#
2
). Do not overtighten.
NOTE :
Refer to the Track Kit manual for the correct adjustment (section 3, page 17).
8)
Repeat
steps 1
to
7
for the opposite side.

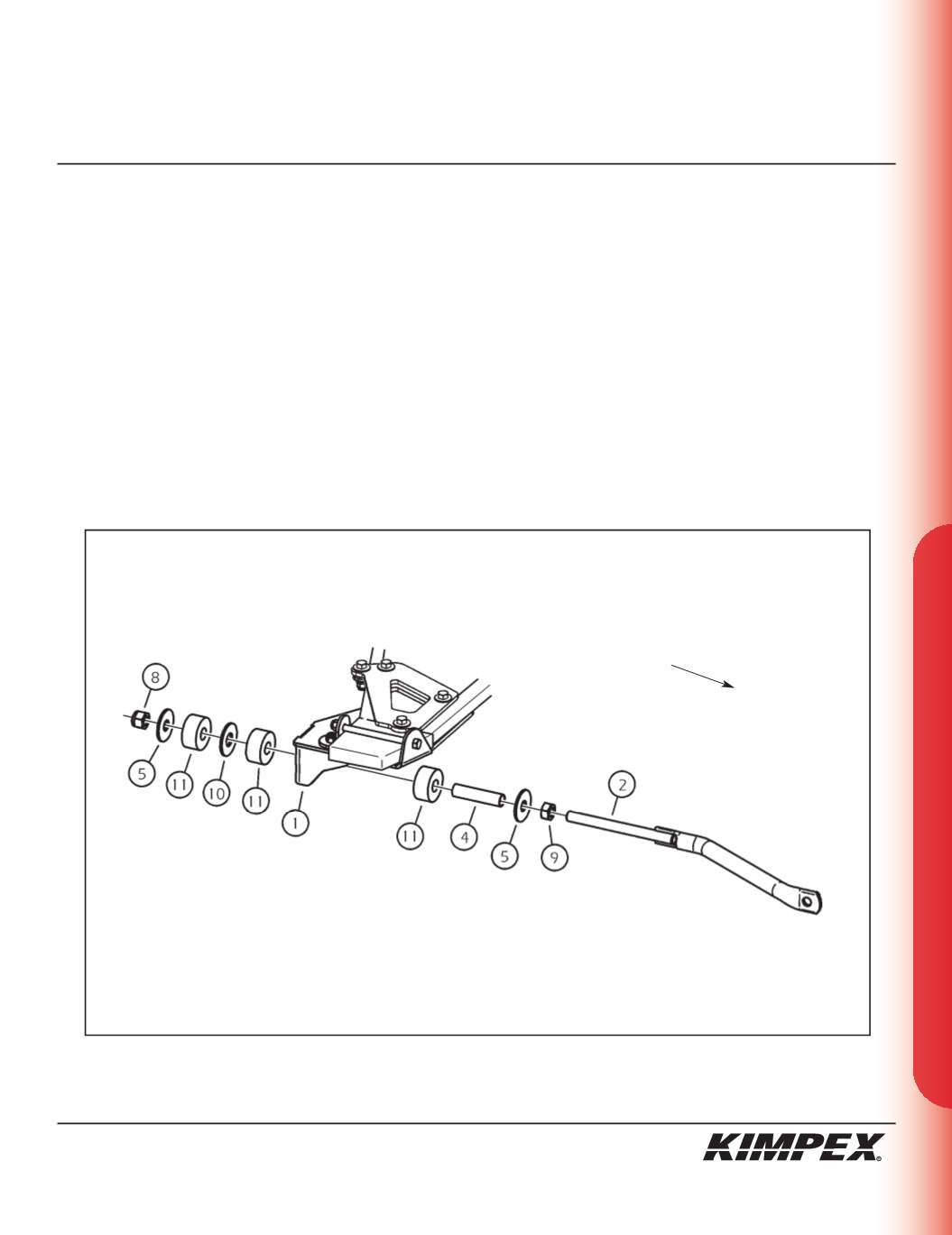

sketch G
LEFT
REAR VIEW
Rear of the ATV
