ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373612
For "Commander" track kit / Suzuki King Quad
FRONT ANTI-ROTATION INSTALLATION
(see sketch D)
NOTE :
Pay special attention to the orientation given to spacers (#5 and #6) during installation.
1)
Install the large ball joint spacer (#
6
) with the narrow part facing down onto the
1/2” nc X 2-1/2”
carriage bolt (#
11
) installed in
step 3 of
the “FRONT A-ARM BRACKET INSTALLATION” section.
2)
Install the ball joint of the front anti-rotation assembly (#
13
) onto the bolt (#
11
), below the large ball joint spacer (#
6
). Install the short
ball joint spacer (#
5
) with the narrow part facing up, below the anti-rotation assembly (#
13
).
3)
Tighten the assembly with the
1/2” nc
self-locking nut (#
10
). Torque to 55 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and risk
of loss of control over the vehicle, as well as risk of personal injury.
4)
Rotate the anti-rotation assembly (#
13
) towards the center of the ATV to prevent it from interfering with the installation of the Track Kit.
NOTE :
Refer to the Track Kit manual for the correct adjustment (section 3, page 17).
5)
Repeat
steps 1
to
4
for the opposite side.

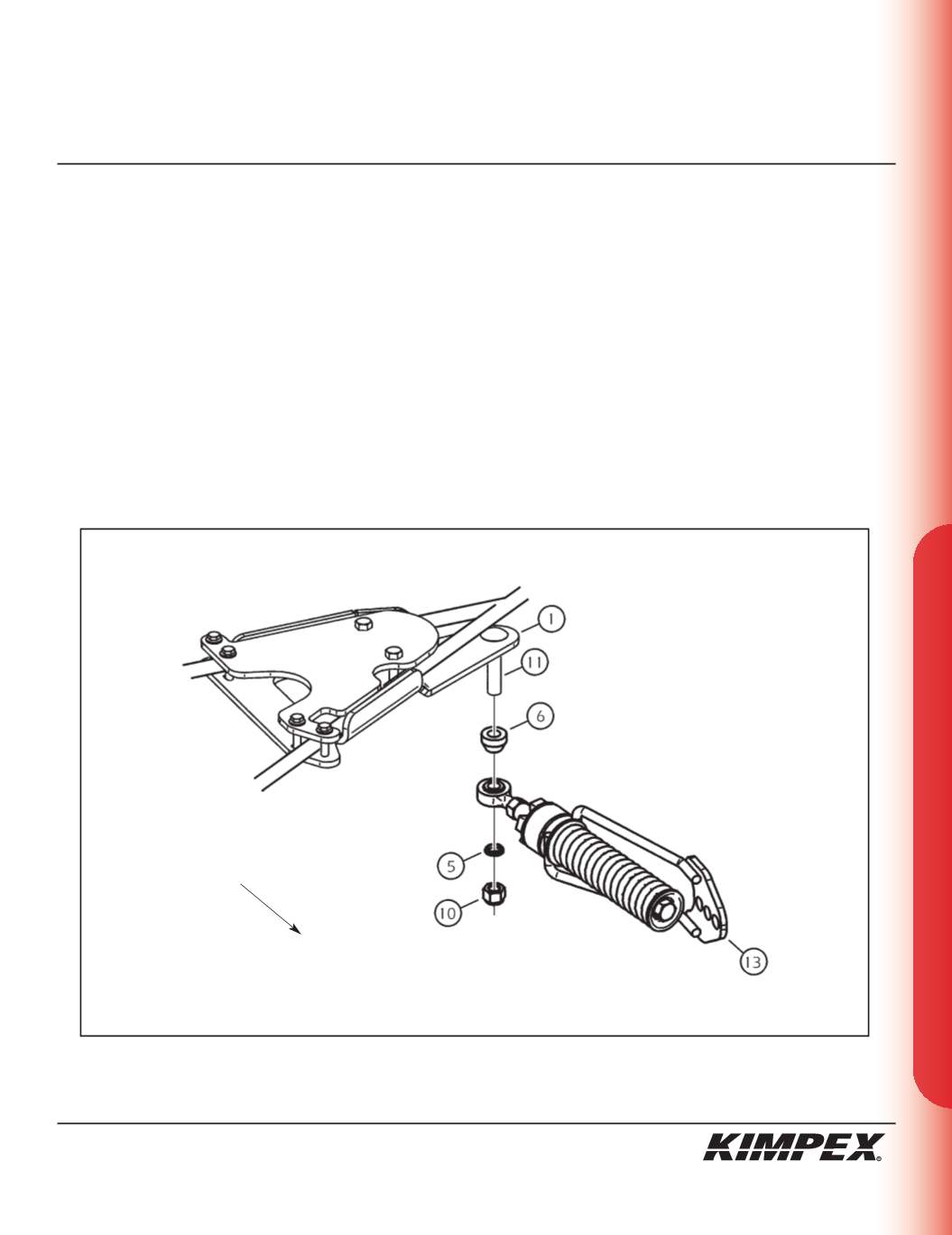

sketch D
LEFT
FRONT VIEW
Front of the ATV
