ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373612
For "Commander" track kit / Suzuki King Quad
Rear of
the ATV
REAR A-ARM BRACKET INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Assemble the rear tightening bended plate (#
14
) onto the rear
left A-arm bracket (#
1
) using the
3/8” nc X 1”
carriage bolt (#
16
)
and the
3/8” nc
self-locking nut (#
12
) (screw the first threads
only).
(see sketch F)
4)
Place the rear left A-arm bracket (#
1
) below the rear lower
A-arm. Install the
3/8” nc X 6”
hex bolt (#
15
) and the
3/8” nc
self-
locking nut (#
12
) above the rear lower A-arm (screw the first
threads only).
5)
Install the rear A-arm clamping plate (#
17
) and fasten using
(4)
3/8” nc X 2-1/4”
hex bolts (#
18
),
(6) 3/8” dia
flat washers (#
7
), and
(4)
3/8” nc
self-locking nuts (#
12
).
6)
Tighten all the bolts. Torque the
3/8” nc
nuts (#
12
) to 25 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
7)
Repeat
steps 2
to
6
for the opposite side.

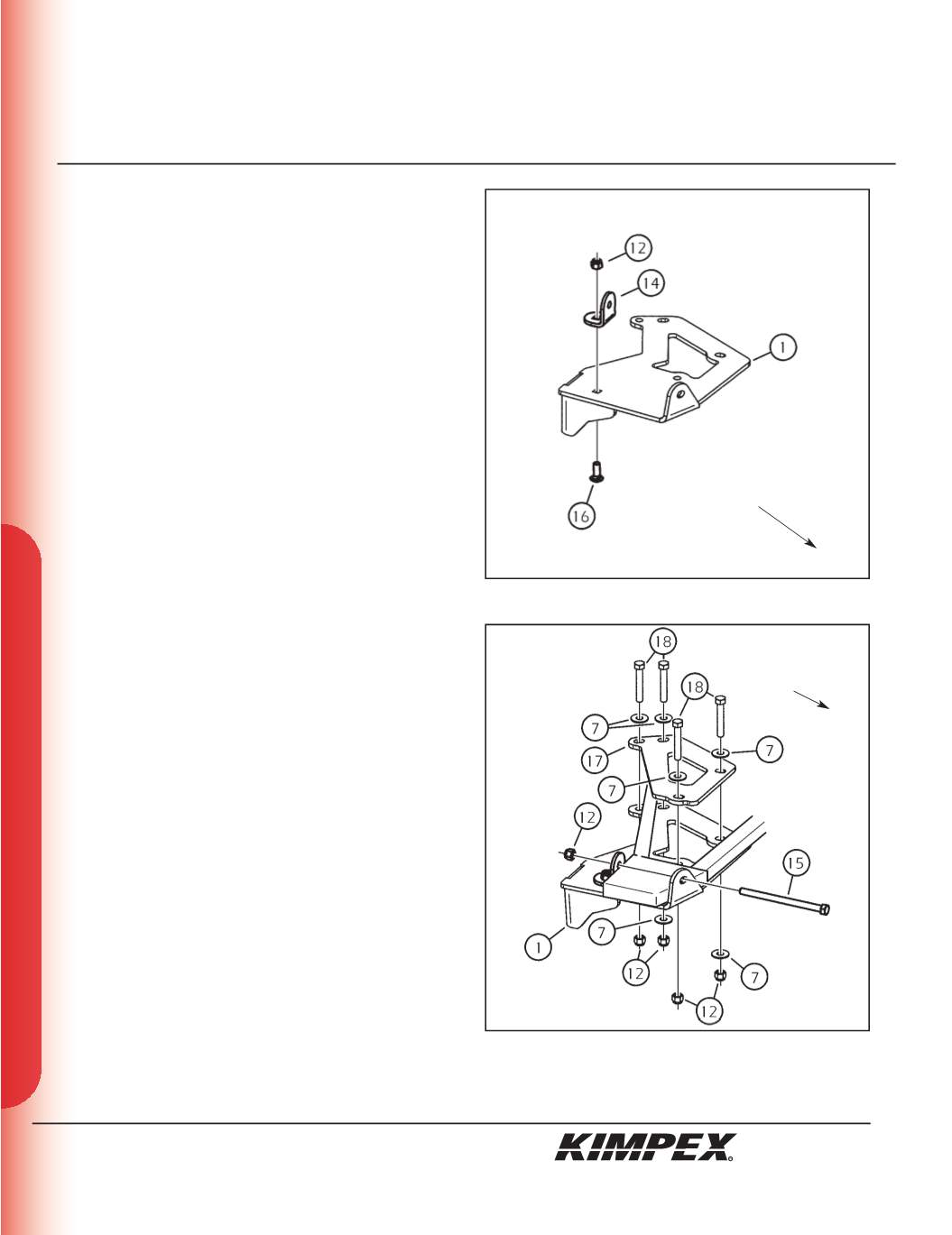

sketch E
LEFT
REAR VIEW
LEFT
REAR
VIEW
Rear of the ATV
sketch F
