ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373613
For "Commander" track kit / Suzuki Vinson 500
(see sketch J)
5)
Fasten the other end of the rear anti-rotation arm (#
5
) onto the
rear anti-rotation arm support (#
4
) installed in
step 1 at the
“SNOWPLOW ADAPTER INSTALLATION”
using the
3/8” nc X 3”
hex bolt (#
11
) and the
3/8” nc
nylock nut (#
15
).
(see sketch K)
6)
Install the rubber bushing (#
1
), the
3/4” I.D. X 2” O.D. X 1/8”
flat
washer (#
17
), and the other rubber bushing (#
1
) over the
bushing spacer tube (#
2
).
7)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
18
) onto the
threaded part of the anti-rotation arm (#
5
).
8)
Screw the
5/8” nc
self-locking nut (#
16
) onto the threaded part of
the anti-rotation arm (#
5
). Do not overtighten.
NOTE :
Refer to the Track Kit manual for the correct
adjustment (section 3, page 17).
9)
Repeat
steps 1
to
8
for the opposite side.

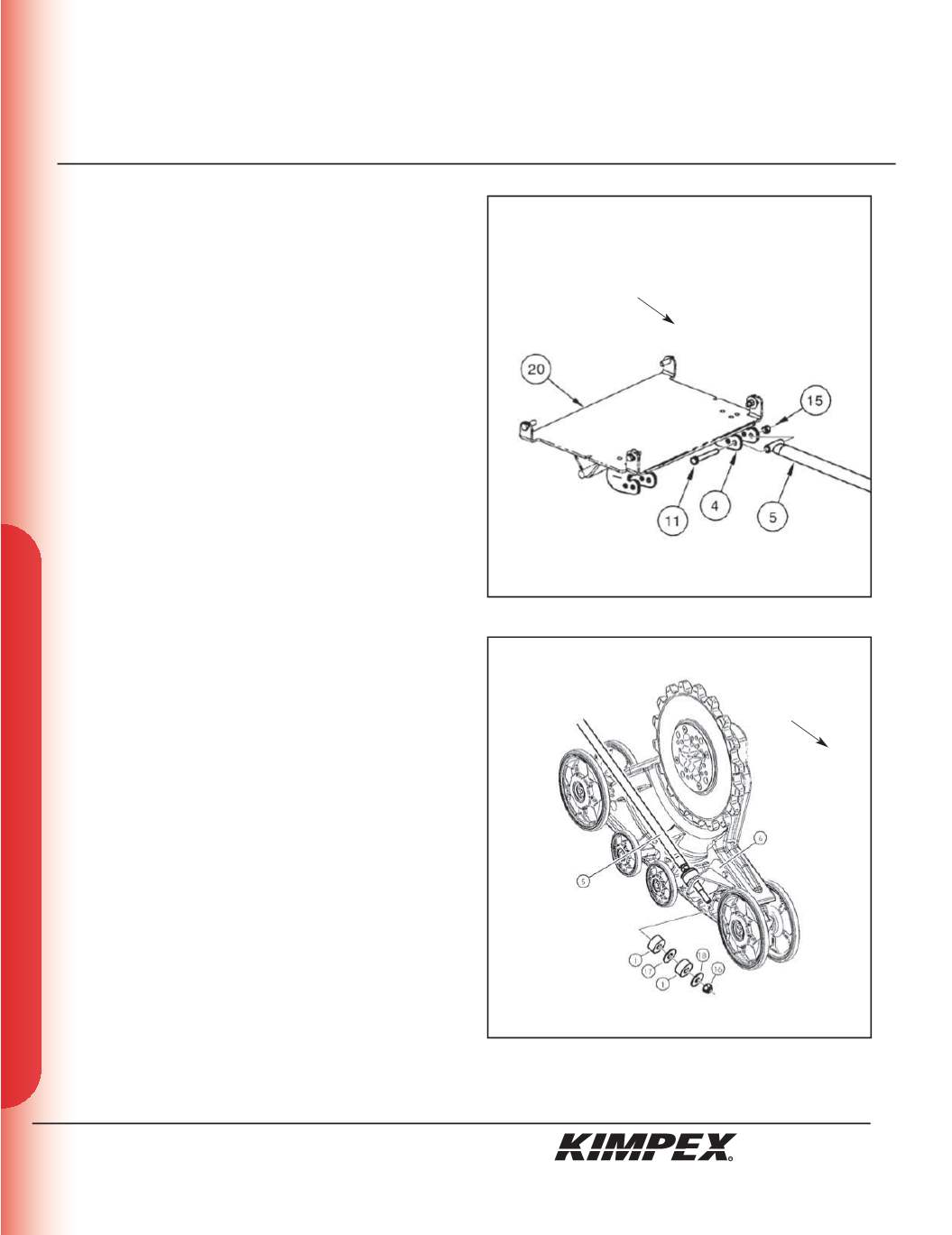

sketch J
Rear of
the ATV
sketch K
RIGHT
REAR VIEW
Rear of
the ATV
