ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373710
For "Commander" track kit / Yamaha Grizzly

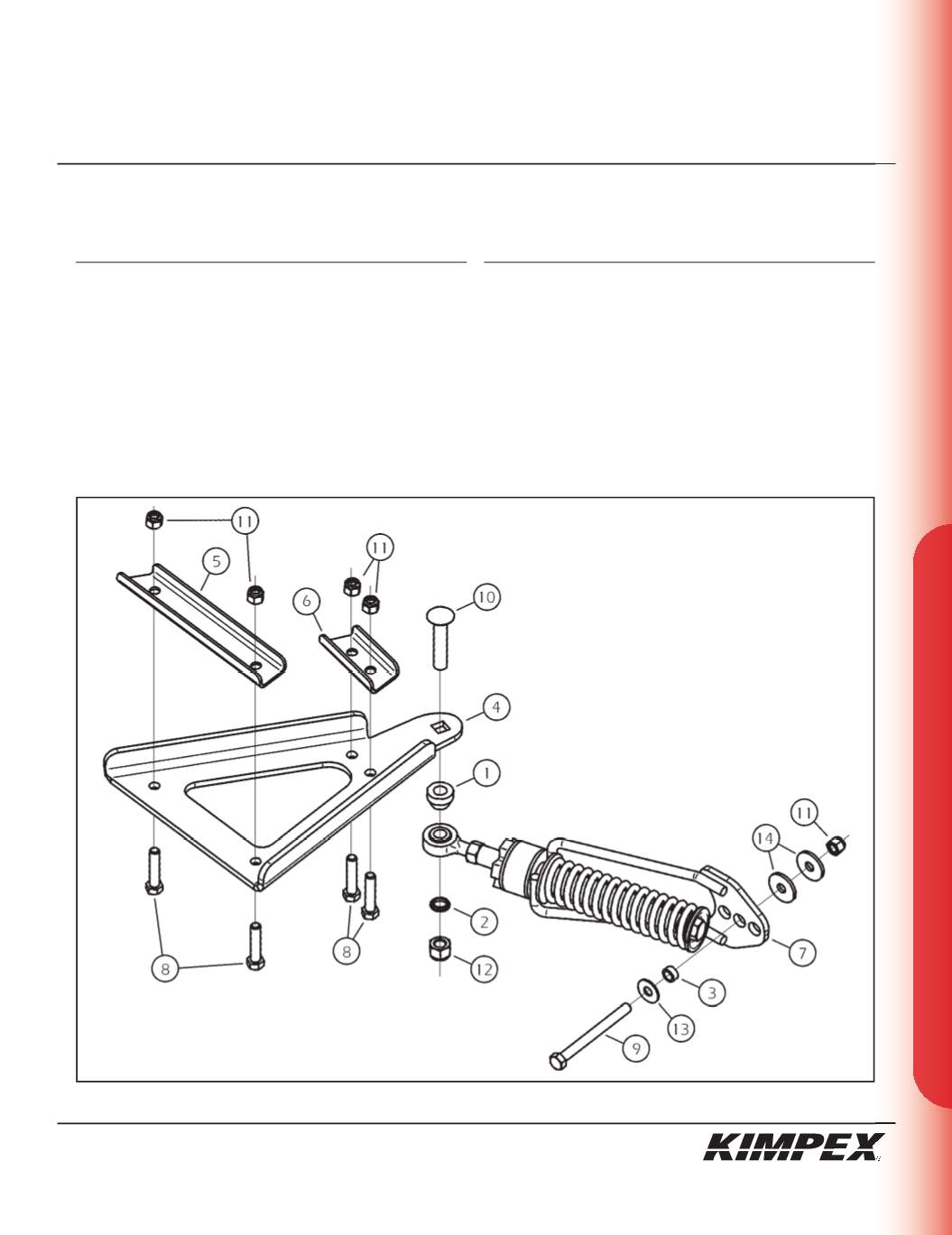

FRONT LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Front left sub-table plate
2810148-2000
1
Front right sub-table plate
2810148-1000
1
5
Internal front left sub-table
clamping plate
2810148-6000
1
Internal front right sub-table
clamping plate
2810148-5000
1
6
External front sub-table
clamping plate
2810148-7000
2
Ref. Description
Item No.
Qty
7
Front anti-rotation assembly
2810153-10
2
8
3/8” nc X 1-3/4” hex bolt
S1711-00614-052 8
9
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
10
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
11
3/8” nc self-locking nut
S4186-10600-022 10
12
1/2” nc self-locking nut
S4186-10800-022 2
13
3/8” dia flat washer
S4612-00600-002 2
14
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
