ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373710
For "Commander" track kit / Yamaha Grizzly

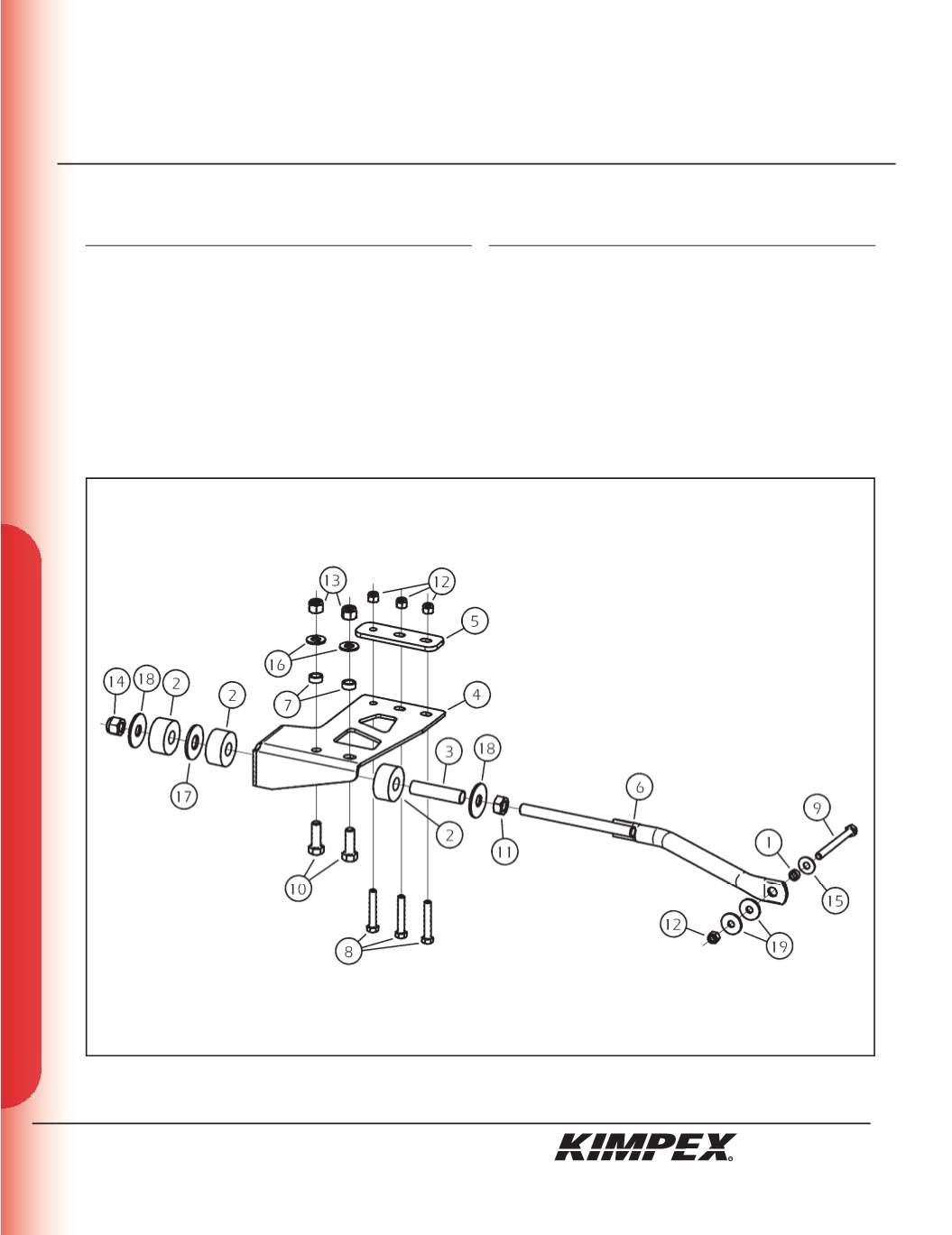

REAR LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Tightening spacer
2510039-1-30-4000 2
2
Rubber bushing
2510039-1-30-6000 6
3
Bushing spacer tube
2510039-3-20-2000 2
4
Rear left sub-table plate
2810148-4000
1
Rear right sub-table plate
2810148-3000
1
5
Tightening plate
2810148-8000
2
6
Rear anti-rotation tube
2810153-20-1000 2
7
.530” I.D. X 3/4” O.D. X 5/16”
spacer
Q2212-20041
4
8
3/8” nc X 2-1/4” hex bolt
S1711-00618-052 6
9
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
10
1/2” nc X 1-1/2” hex bolt
S1711-00812-052 4
Ref. Description
Item No.
Qty
11
5/8” nc nut
S4111-11000-022 2
12
3/8” nc self-locking nut
S4186-10600-022 8
13
1/2” nc self-locking nut
S4186-10800-022 4
14
5/8” nc self-locking nut
S4186-11000-022 2
15
3/8” dia flat washer
S4612-00600-002 2
16
1/2” dia flat washer
S4612-00800-002 4
17
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
18
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
19
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
