ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373710
For "Commander" track kit / Yamaha Grizzly
REAR SUB-TABLE INSTALLATION
(see sketch C)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the sub-
tables. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Install the
(2) 1/2” nc X 1-1/2”
hex bolts (#
10
) into the intended
mounting holes of the internal part of the rear left sub-table
plate (#
4
). Slide the
(2) .530” I.D. X 3/4” O.D. X 5/16”
spacers (#
7
) onto
the bolts (#
10
) (one spacer on each bolt).
4)
Place the rear sub-table plate (#
4
) below the rear lower a-arm.
Install the
(2) 1/2” dia
flat washers (#
16
) and the
(2) 1/2” nc
self-
locking nuts (#
13
) on the top of the rear lower a-arm (screw the
first threads only).
5)
Install the
(3) 5/16” nc X 2-3/4”
hex bolts (#
8
) over the rear lower
a-arm into the intended mounting holes of the rear sub-table
plate (#
4
). Install the tightening plate (#
5
) and the
(3) 3/8” nc
self-
locking nuts (#
12
).
6)
Tighten all the bolts. Torque the
1/2” nc
nuts (#
13
) to 55 ft-lbs and
the
3/8” nc
nuts (#
12
) to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.

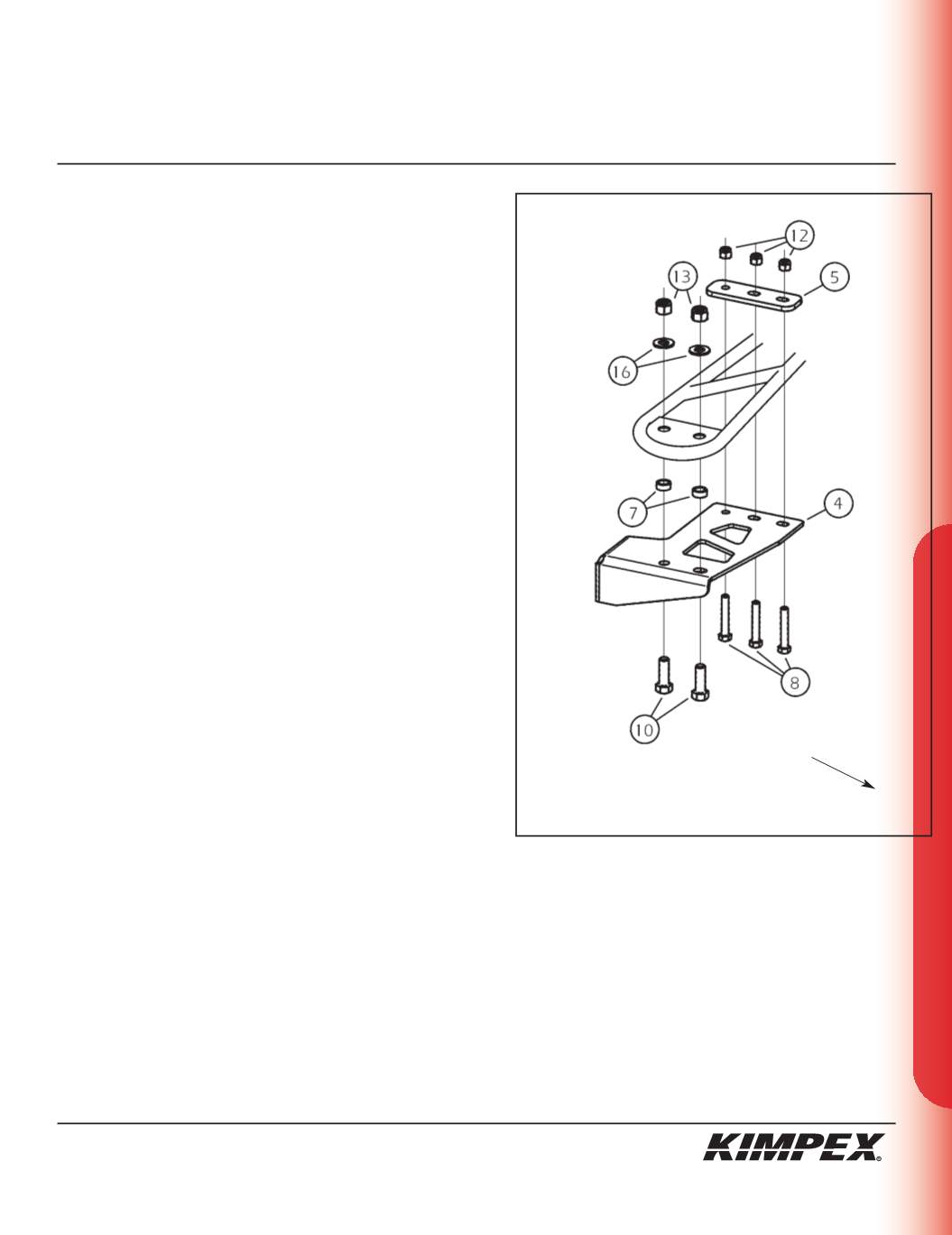

sketch C
LEFT
REAR VIEW
Rear of the ATV
