ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373711
For "Commander" track kit / Yamaha Kodiak 400, 450 (indepndent suspension)
REAR A-ARM BRACKET INSTALLATION
(see sketch C)
WARNING :
Prior to installation, turn off the engine, put in two-wheel driving mode, and block the wheels.
1)
Raise the rear of the ATV off the ground and remove the wheels.
WARNING :
When the ATV is raised, make sure that it is properly secured/supported to prevent it from accidentally
falling during the installation of the sub-tables. If not properly secured/supported, serious physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be reinstalled later.
3)
Install the rear left A-arm bracket (#
5
) under the lower front A-arm so that the two parts fit snugly.
4)
Install the external (#
6
) and internal (#
7
) rear A-arm bracket clamping plate above the lower rear A-arm and fasten it to the A-arm bracket
(#
5
) using the
(4) 3/8” nc X 2”
hex bolts (#
8
) and the
(4) 3/8” nc
self-locking nuts (#
11
). Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently deform the assembly.
5)
Repeat
steps 2
to
4
for the opposite side.

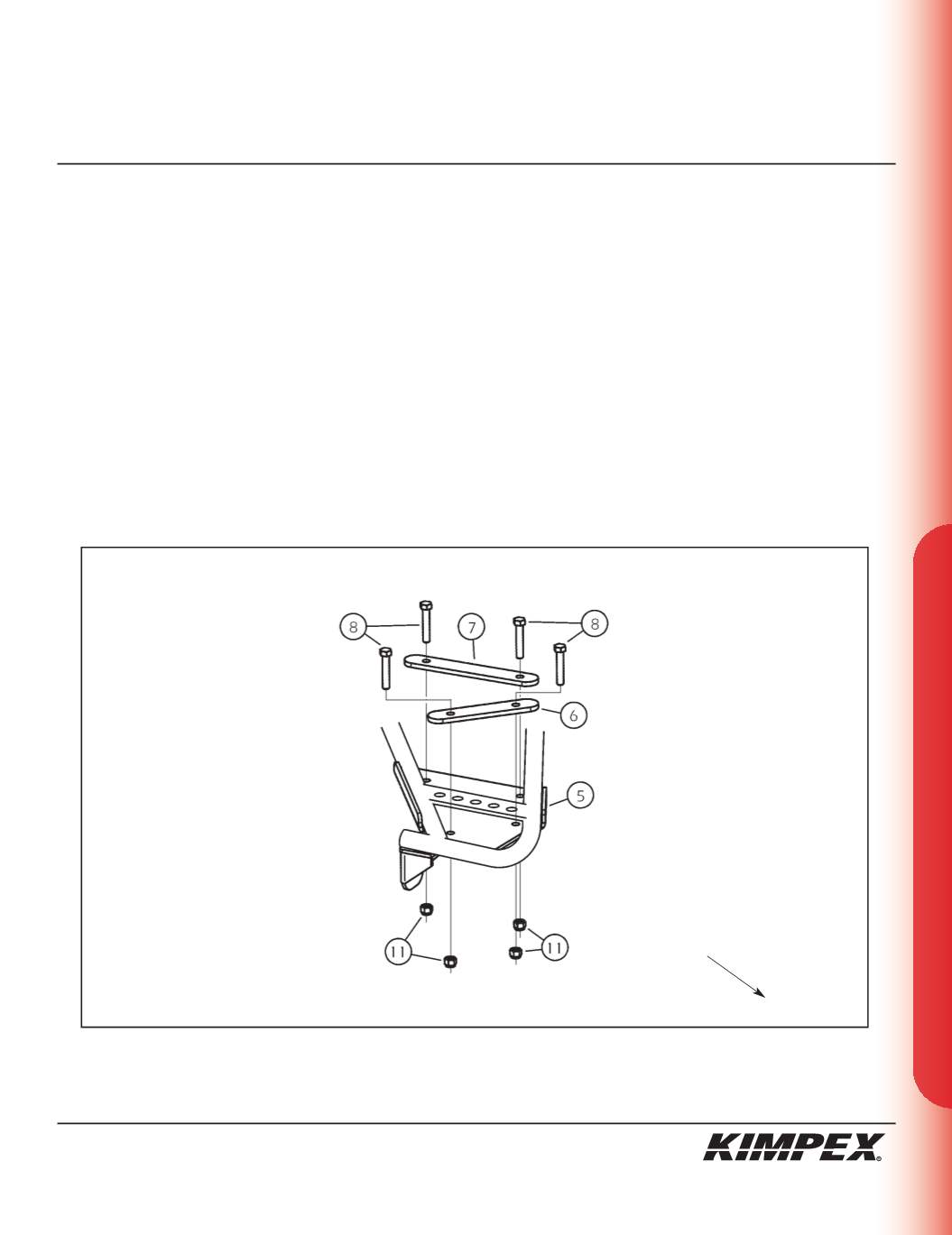

sketch C
LEFT
REAR VIEW
Rear of the ATV
