ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373714
For "Commander" track kit / Yamaha Grizzly 2007
FRONT LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Front left A-arm bracket
2810202-2000
1
Front right A-arm bracket
2810202-1000
1
2
Front left A-arm clamping plate 2810202-6000
1
Front right A-arm clamping plate 2810202-5000
1
3
5/16” nc self-locking nut
S4186-10500-022 4
4
Short ball joint spacer
2510039-1-20-4000 2
5
Large ball joint spacer
2510039-1-20-2000 2
6
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
7
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
8
3/8” dia flat washer
S4612-00600-002 2
Ref. Description
Item No.
Qty
9
1/2” nc self-locking nut
S4186-10800-022 2
10
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
11
Tightening spacer
2510039-1-30-4000 2
12
3/8” nc self-locking nut
S4186-10600-022 8
13
Front anti-rotation assembly
2810153-10
2
14
5/16” dia flat washer
S4612-00500-002 2
15
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 6
16
1/4” nc X 2” U-bolt
S2215-C1832-002 2
17
5/16” nc X 2-1/4” U-bolt
S2215-D2436-002 2
18
1/4” nc self-locking nut
S4186-10400-022 4
19
1/4” dia flat washer
S4612-00400-002 2

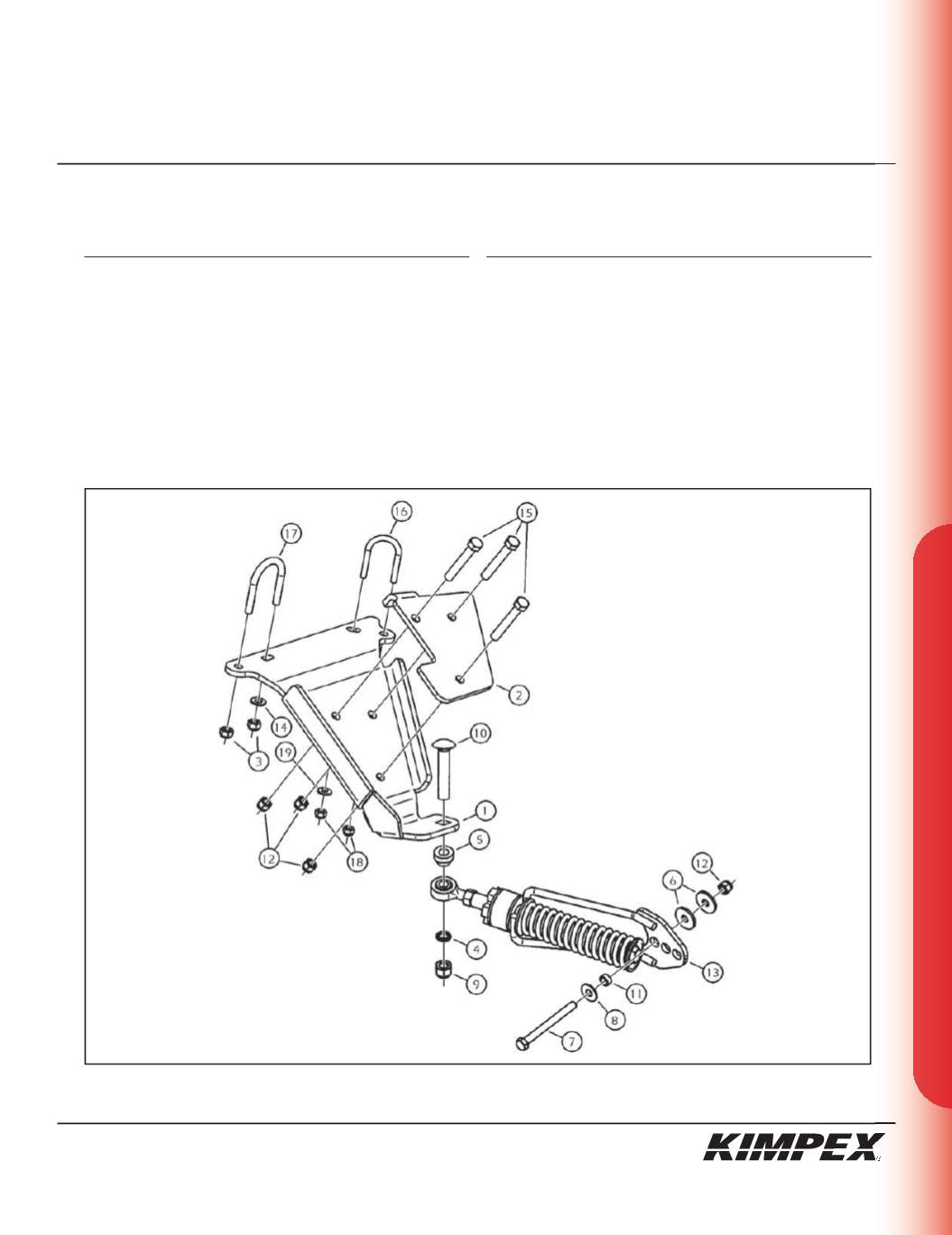

sketch A
