ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373714
For "Commander" track kit / Yamaha Grizzly 2007

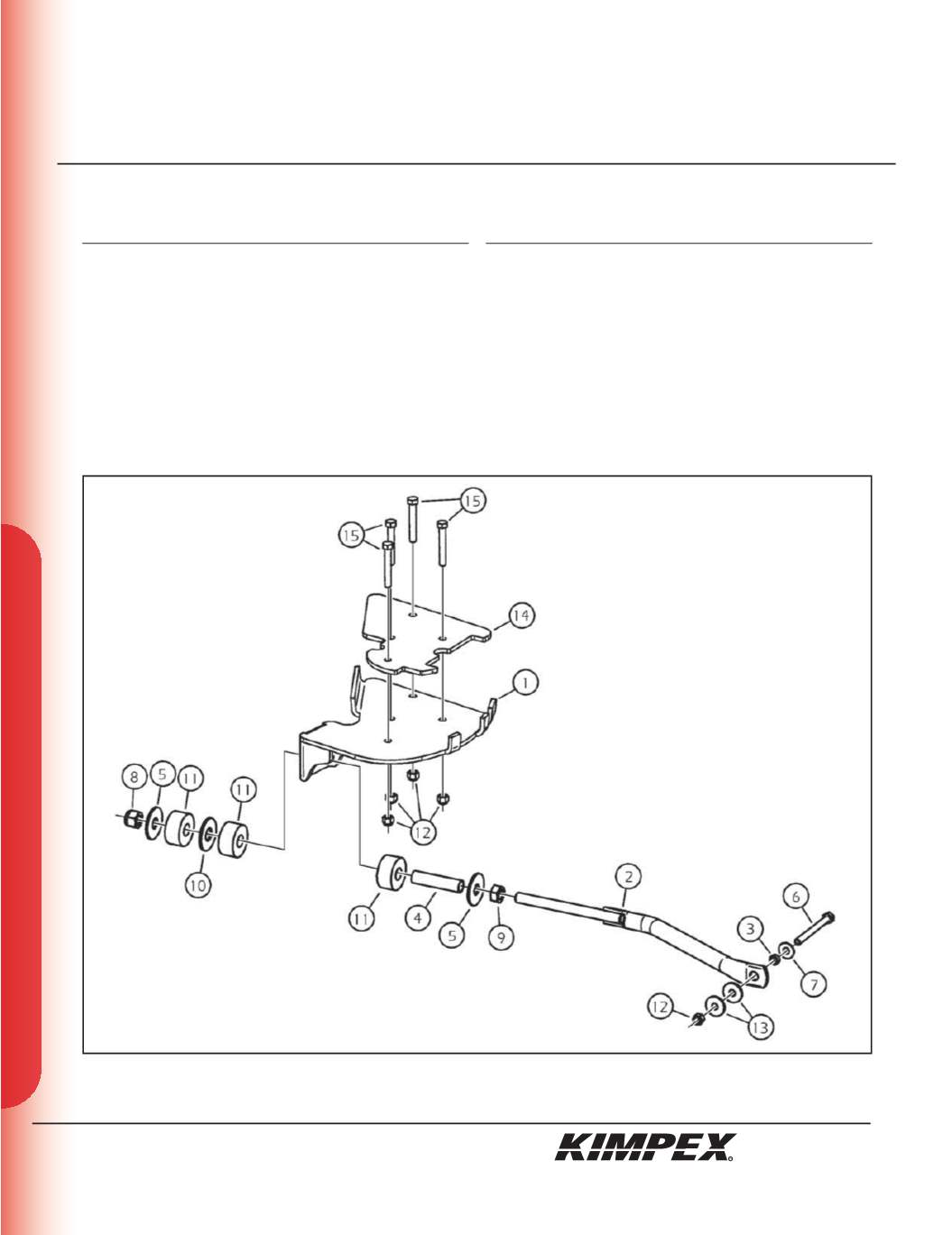

REAR LEFT AND RIGHT A-ARM BRACKETS
Ref. Description
Item No.
Qty
1
Rear left A-arm bracket
2810202-4000
1
Rear right A-arm bracket
2810202-3000
1
2
Rear anti-rotation tube
2810153-20-1000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Bushing spacer tube
2510039-3-20-2000 2
5
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
6
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
7
3/8” dia flat washer
S4612-00600-002 2
8
5/8” nc self-locking nut
S4186-11000-022 2
Ref. Description
Item No.
Qty
9
5/8” nc nut
S4111-11000-022 2
10
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
11
Rubber bushing
2510039-1-30-6000 6
12
3/8” nc self-locking nut
S4186-10600-022 10
13
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
14
Rear A-arm clamping plate
2810202-7000
2
15
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 8
sketch B
