ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373610
For "Commander" track kit / Suzuki King Quad
REAR ANTI-ROTATION INSTALLATION
(see sketch E)
1)
Screw the
5/8” nc
nut (#
13
) onto the threaded part of the anti-rotation tube (#
7
).
2)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
20
) and the bushing spacer tube (#
3
) onto the threaded part of the anti-rotation
tube (#
7
).
3)
Install the rubber bushing (#
2
) over the bushing spacer tube (#
3
).
4)
Slide the anti-rotation assembly into the hole on the bottom of the rear sub-table plate (#
4
).
5)
Install the rubber bushing (#
2
), the
3/4” I.D. X 2” O.D. X 1/8”
flat washer (#
19
), and the other rubber bushing (#
2
) over the bushing spacer
tube (#
3
).
6)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
20
) onto the threaded part of the anti-rotation tube (#
7
).
7)
Screw the
5/8” nc
self-locking nut (#
16
) onto the threaded part of the anti-rotation tube (#
7
). Do not overtighten.
NOTE :
Refer to the track kit manual for the correct adjustment.
8)
Repeat
steps 1
to
7
for the opposite side.

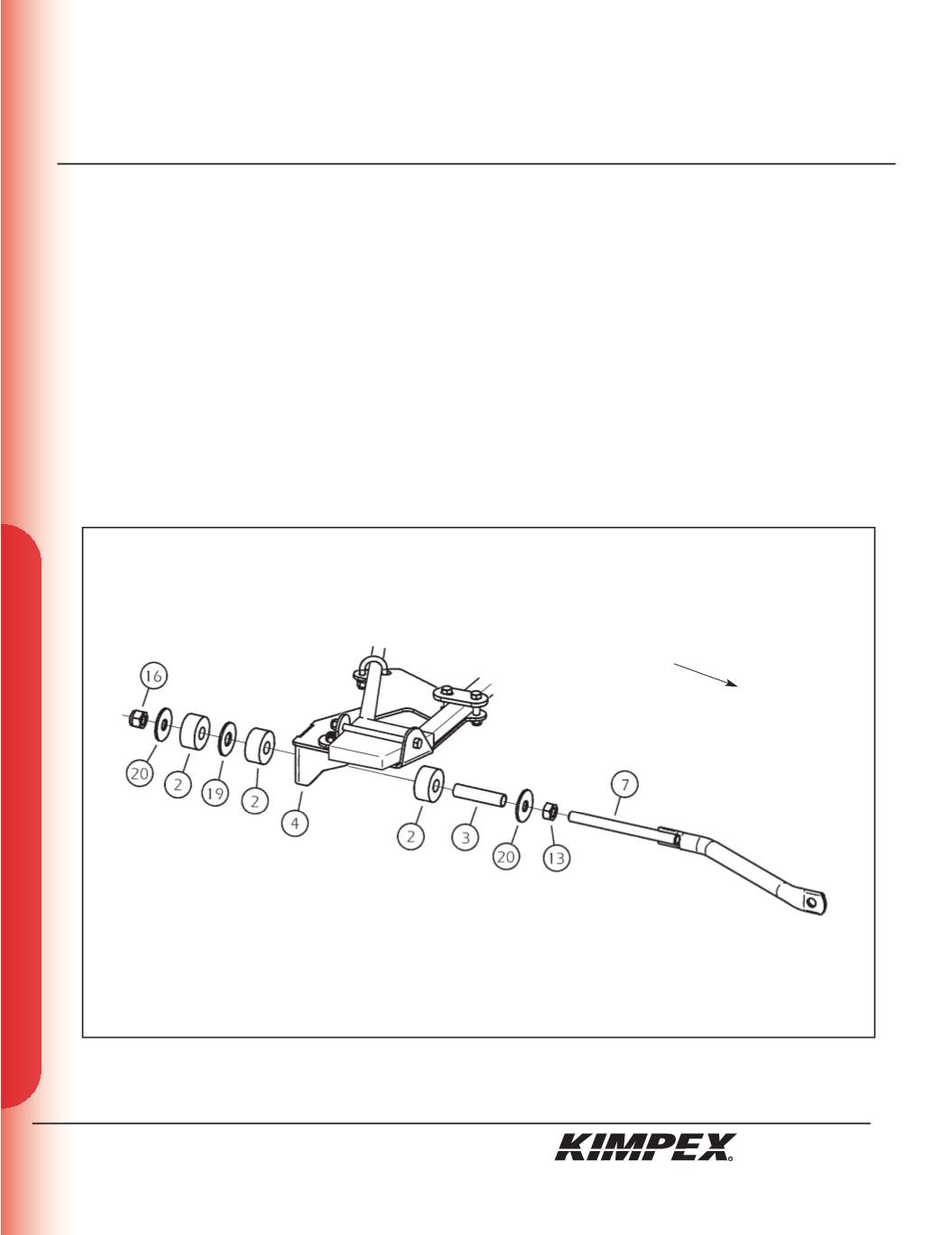

sketch E
LEFT
REAR VIEW
Rear of the ATV
