ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373610
For "Commander" track kit / Suzuki King Quad

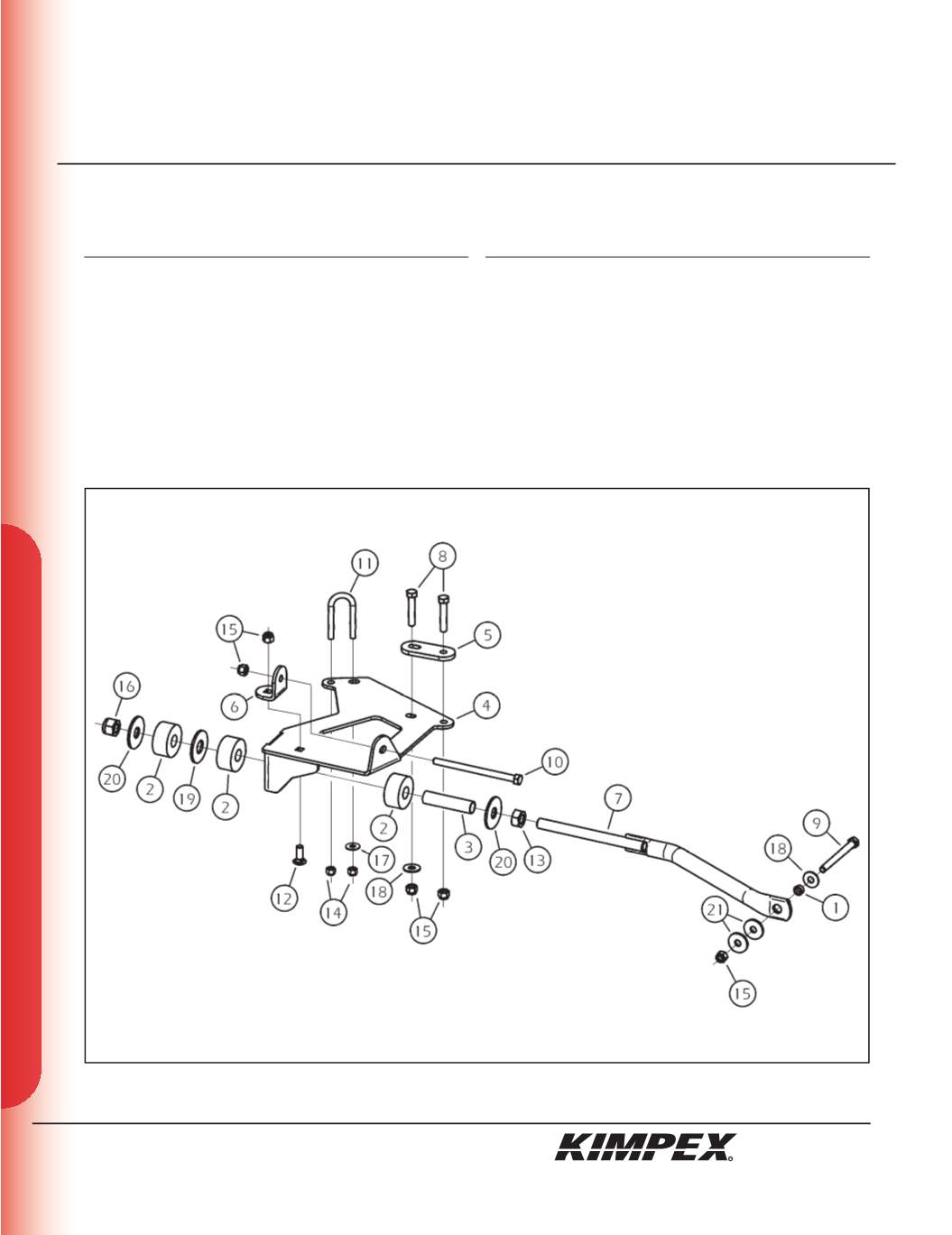

REAR LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Tightening spacer
2510039-1-30-4000 2
2
Rubber bushing
2510039-1-30-6000 6
3
Bushing spacer tube
2510039-3-20-2000 2
4
Rear left sub-table plate
2810151-4000
1
Rear right sub-table plate
2810151-3000
1
5
External tightening plate
2810151-8000
2
6
Internal tightening bended plate 2810151-9000
2
7
Rear anti-rotation tube
2810153-20-1000 2
8
3/8” nc X 2” hex bolt
S1711-00616-052 4
9
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
10
3/8” nc X 5-1/2” hex bolt
S1711-00644-052 2
11
5/16” nc X 2.188” U-bolt
S2215-D1635-002 2
12
3/8” nc X 1” carriage bolt
S2412-0E016-0A2
2
Ref. Description
Item No.
Qty
13
5/8” nc nut
S4111-11000-022 2
14
5/16” nc self-locking nut
S4186-10500-022 4
15
3/8” nc self-locking nut
S4186-10600-022 10
16
5/8” nc self-locking nut
S4186-11000-022 2
17
5/16” dia flat washer
S4612-00500-002 2
18
3/8” dia flat washer
S4612-00600-002 4
19
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
20
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
21
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
