ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373610
For "Commander" track kit / Suzuki King Quad

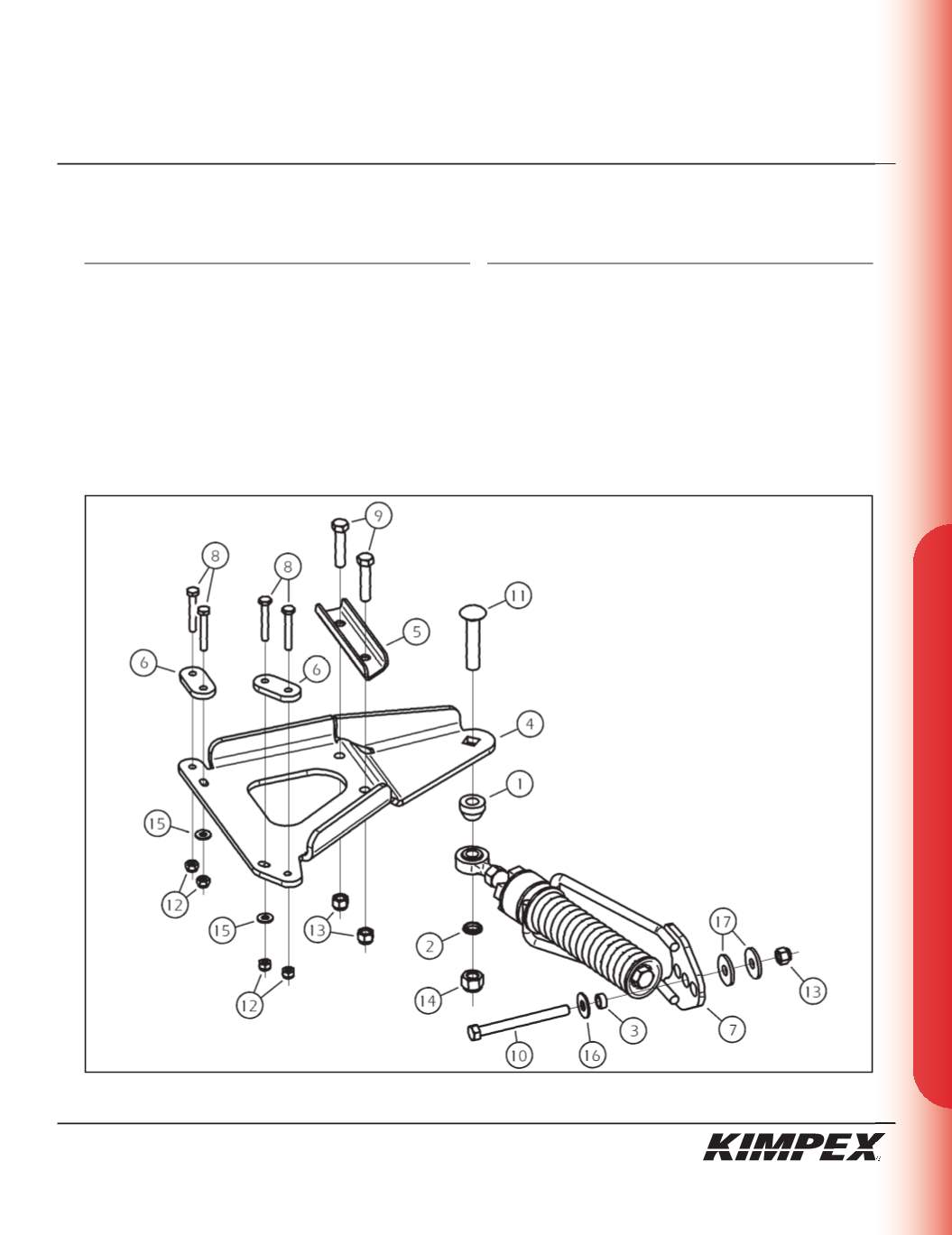

FRONT LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Front left sub-table plate
2810151-2000
1
Front right sub-table plate
2810151-1000
1
5
External front left sub-table
clamping plate
2810151-6000
1
External front right sub-table
clamping plate
2810151-5000
1
6
Internal front sub-table
clamping plate
2810152-6000
4
7
Front anti-rotation assembly
2810153-10
2
Ref. Description
Item No.
Qty
8
1/4” nc X 1-3/4” hex bolt
S1711-00414-052 8
9
3/8” nc X 1-3/4” hex bolt
S1711-00614-052 4
10
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
11
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
12
1/4” nc self-locking nut
S4186-10400-022 8
13
3/8” nc self-locking nut
S4186-10600-022 6
14
1/2” nc self-locking nut
S4186-10800-022 2
15
1/4” dia flat washer
S4612-00400-002 4
16
3/8” dia flat washer
S4612-00600-002 2
17
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
