KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
A-2810189 (F-00)
2810189
1/7
ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373612
For "Commander" track kit / Suzuki King Quad
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Front left A-arm bracket
2810189-2000
1
Front right A-arm bracket
2810189-1000
1
2
3/8” nc self-locking nut
S4186-10600-022 6
3
1/4” nc self-locking nut
S4186-10400-022 8
4
1/4” dia flat washer
S4612-00400-002 12
5
Short ball joint spacer
2510039-1-20-4000 2
6
Large ball joint spacer
2510039-1-20-2000 2
7
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
Ref. Description
Item No.
Qty
8
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
9
3/8” dia flat washer
S4612-00600-002 2
10
1/2” nc self-locking nut
S4186-10800-022 2
11
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
12
Tightening spacer
2510039-1-30-4000 2
13
Front anti-rotation assembly
2810153-10
2
14
Front A-arm clamping plate
2810189-5000
2
15
3/8” nc X 2-1/4” hex bolt
S1711-00618-052 4
16
1/4” nc X 2-1/4” hex bolt
S1711-00418-052 8

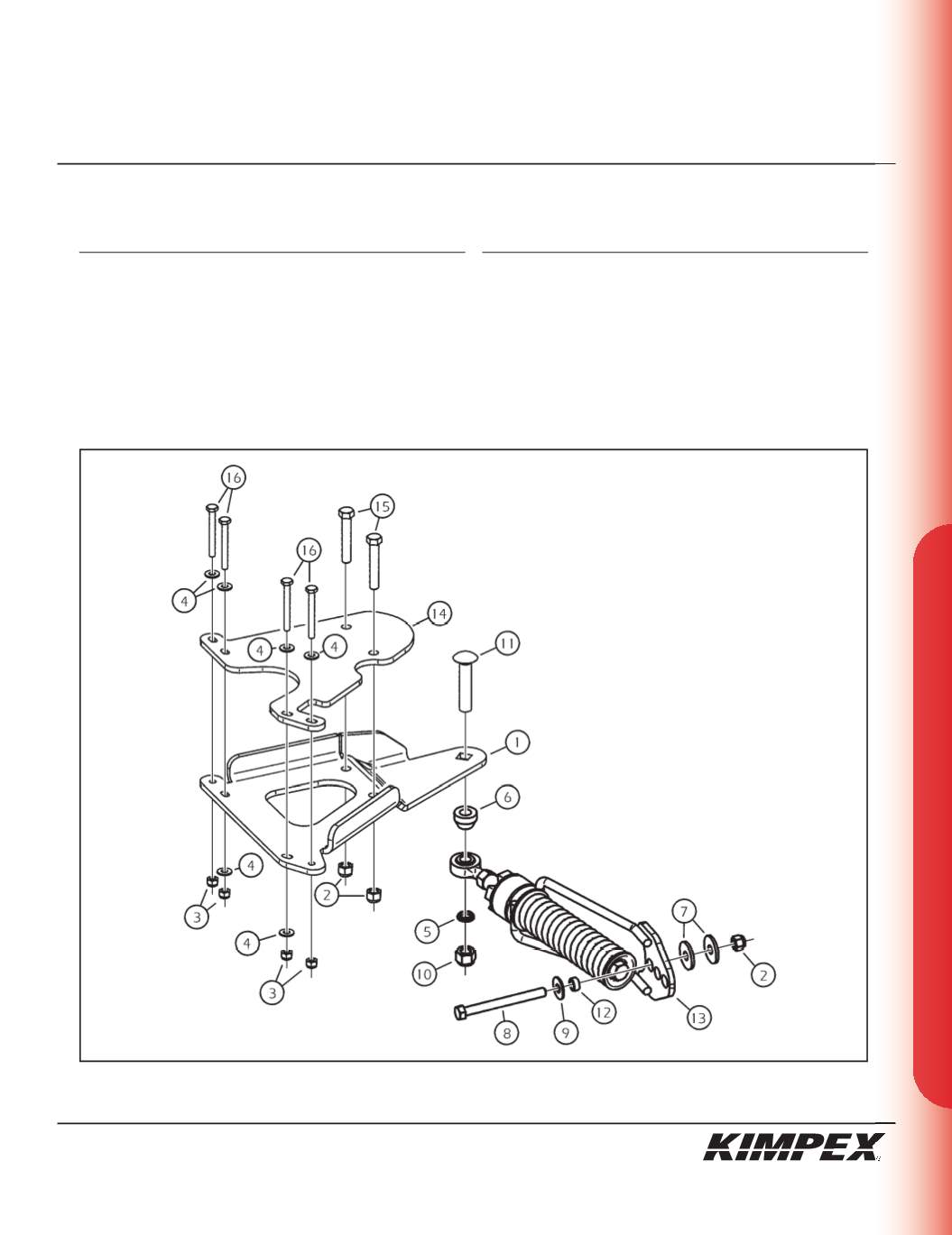

sketch A
