ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373612
For "Commander" track kit / Suzuki King Quad
FRONT A-ARM BRACKET INSTALLATION
(see sketch C)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the front of the ATV off the ground and remove the
wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the front left CV shield. Do not discard. They will be
reinstalled later.
3)
Insert the
1/2” nc X 2-1/2”
carriage bolt (#
11
) into the hole
intended in the front left A-arm bracket (#
1
).
4)
Install the front left A-arm bracket (#
1
) under the lower front
A-arm so that the two parts fit snugly.
5)
Install the front A-arm clamping plate (#
14
) above the lower
front A-arm and fasten it to the A-arm bracket (#
1
) using the
(4) 1/4” nc X 2-1/4”
hex bolts (#
16
),
(6) 1/4” dia
flat washers (#
4
),
(4) 1/4” nc
self-locking nuts (#
3
),
(2) 3/8” nc X 2-1/4”
hex bolts (#
15
),
and
(2) 3/8” nc
self-locking nuts (#
2
). Torque the
1/4” nc
self-locking
nuts (#
3
) to 7 ft-lbs and the
3/8” nc
self-locking nuts (#
2
) to
20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

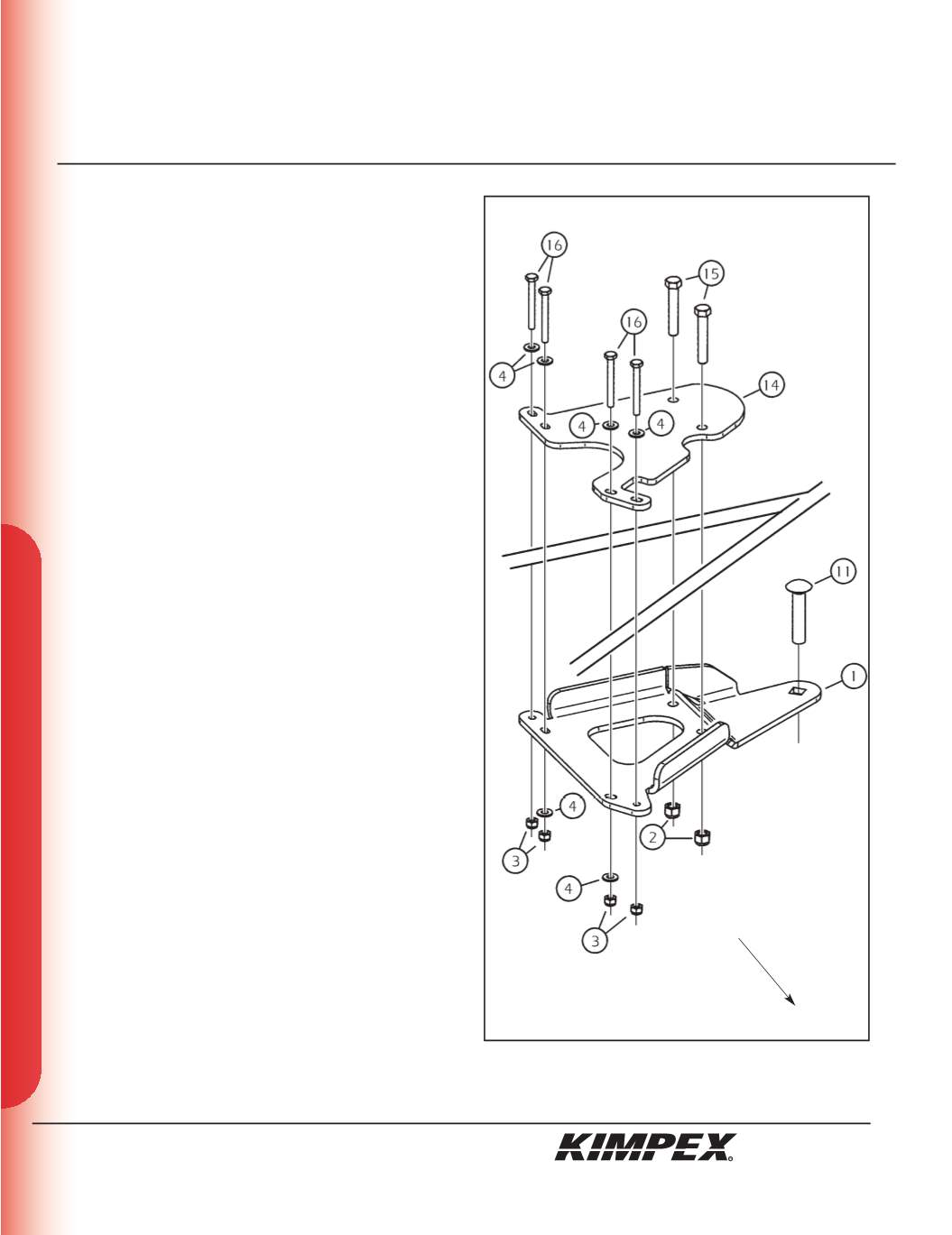

sketch C
LEFT
FRONT VIEW
Front of the ATV
