ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374750
FOR " COMMANDER WIDE TRACK, WTX AND TREX UTV " / YAMAHA RHINO
REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Rubber bushing
2510039-1-30-6000 6
2
Bushing spacer tube
2510039-3-20-2000 2
3
Flat washer
2510235-10-1000 4
4
Main axle adapter
2810149-9000
2
5
Rear left A-arm bracket
2810271-2000
1
Rear right A-arm bracket
2810271-1000
1
6
Rear A-arm clamping plate
2810203-6000
2
7
Rear anti-rotation tube
7810304-30-1000 2
8
Spring limiter kit
(2 spring limiters per kit)
299935
2
9
Tightening spacer
Q2212-10093
2
10
M10 X 30mm hex bolt
S1211-10030-0D1 8
11
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 2
Ref. Description
Item No.
Qty
12
3/8” nc X 4-1/4” hex bolt
S1711-00634-052 2
13
3/8” nc X 2-1/2” carriage bolt
S2412-0E040-0A2 10
14
5/8” nc nut
S4111-11000-052 2
15
M10 wheel nut
S4178-M010M-028 8
16
3/8” nc self-locking nut
S4186-10600-022 14
17
5/8” nc self-locking nut
S4186-11000-022 2
18
3/8” dia flat washer
S4612-00600-0S1
2
19
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
20
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
21
3/8” nc X 1-1/2” hex bolt
S1711-00612-052 2
22
3/8” dia lock washer
S4511-00600-002 2

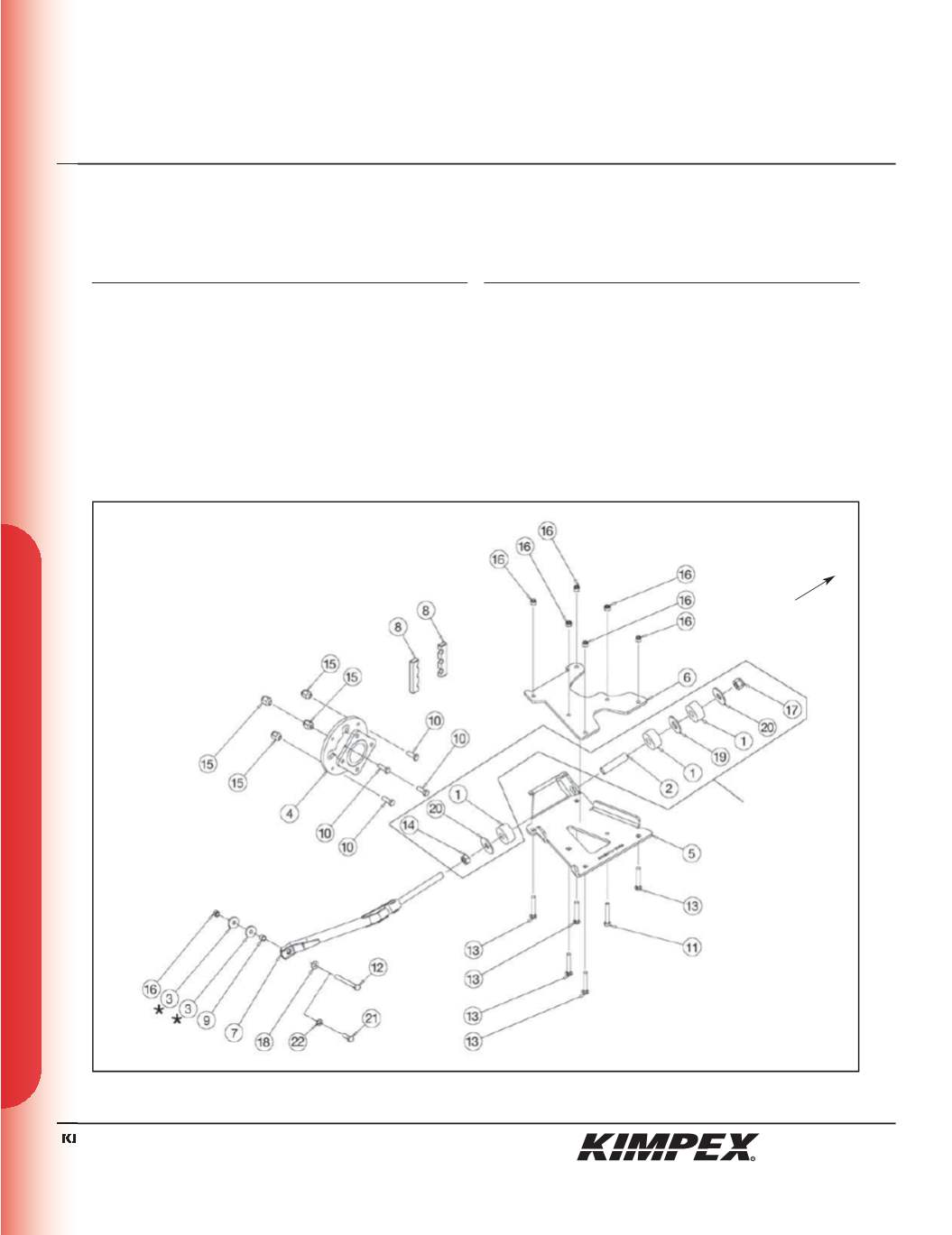

sketch B
LEFT SIDE SHOWN
Front of
the ATV
*
Commander Wide Track Models Only.
