MOUNTING INSTRUCTIONS

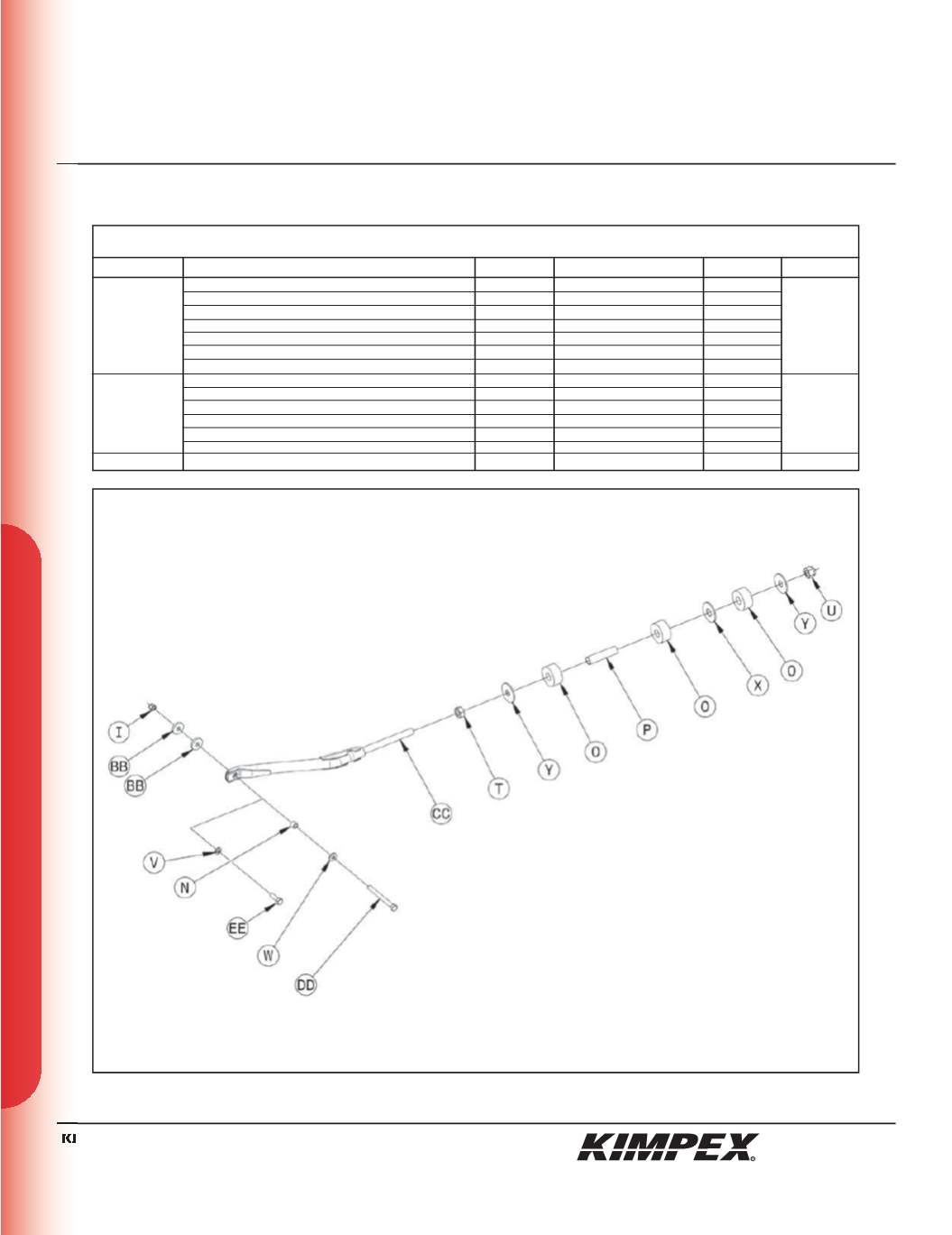

FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374740
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " / YAMAHA RHINO
sketch D
3/8” nc self-locking nut
I
S4186-10600-022
1
Flat washer
BB
2510235-10-1000
2
Tightening spacer
N Q2212-10082
1
3/8” nc X 1-1/4” hex bolt
EE
S1711-00610-052
1
3/8” nc X 4” hex bolt
DD S1711-00632-052
1
3/8” dia lock washer
V
S4511-00600-002
1
3/8” dia flat washer
W S4612-00600-002
1
Rubber bushing 60 Duro
O 2510039-1-30-6000
3
Bushing spacer tube
P
2510039-3-20-2000
1
5/8” nc nut
T
S4111-11000-022
1
5/8” nc self-locking nut
U
S4186-11000-022
1
3/4” I.D. X 2” O.D. X 1/8” flat washer
X
S4612-01200-022
1
17mm I.D. X 50mm O.D. X 3mm flat washer
Y
S4612-M1600-01W
2
375543
Rear anti-rotation tube
CC
2810203-7000
1
2
REAR ANTI-ROTATION SPARE PARTS
Item No.
Qty / ATV
Quantity
Reference
Description
Item No. included
2
2
375542
373032
