ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374750
FOR " COMMANDER WIDE TRACK, WTX AND TREX UTV " / YAMAHA RHINO
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Rubber stopper
2500028-1-2010
2
2
Large ball joint spacer
2510039-1-20-2000 2
3
Short ball joint spacer
2510039-1-20-4000 2
4
Tightening spacer
2510039-1-30-4000 2
5
Flat washer
2510235-10-1000 4
6
Front left A-arm bracket
2810203-2000
1
Front right A-arm bracket
2810203-1000
1
7
Front anti-rotation assembly
2810304-1000
2
8
Front A-arm clamping plate
2810203-5000
2
9
Front left limiter bracket
2810203-9000
1
Front right limiter bracket
2810203-8000
1
10
Spring limiter kit
(2 spring limiters per kit)
299935
2
11
U-bracket
Q2112-20007
2
12
1/4” nc X 1-1/4” hex bolt
S1711-00410-052 2
13
3/8” nc X 3-3/4” hex bolt
S1711-00630-052 2
14
1/4” nc X 1-1/8” U-bolt
S2215-C1832-002 4
15
5/16” nc X 1-3/4” carriage bolt
S2412-0D028-0A2 2
16
3/8” nc X 2-1/4” carriage bolt
S2412-0E036-0A2
8
17
1/2” nc X 3” carriage bolt
S2412-0G048-0A2 2
18
1/2” nf nut
S4111-20800-022 2
19
1/4” nc self-locking nut
S4186-10400-022 10
20
5/16” nc self-locking nut
S4186-10500-022 2
21
3/8” nc self-locking nut
S4186-10600-022 10
22
1/2” nc self-locking nut
S4186-10800-022 2
23
1/4” dia flat washer
S4612-00400-002 12
24
5/16” dia flat washer
S4612-00500-002 2
25
3/8” dia flat washer
S4612-00600-002 8
26
Ball joint
S9113-C0500-002 2
27
Protective plate
2810203-30-1000 1
28
3/8” nc X 4” hex bolt
S1711-00632-052 2
29
Neoprene flat washer
7810304-2000
2
30
3/8” dia flat washer Gr.8
S4612-00600-0S1
2

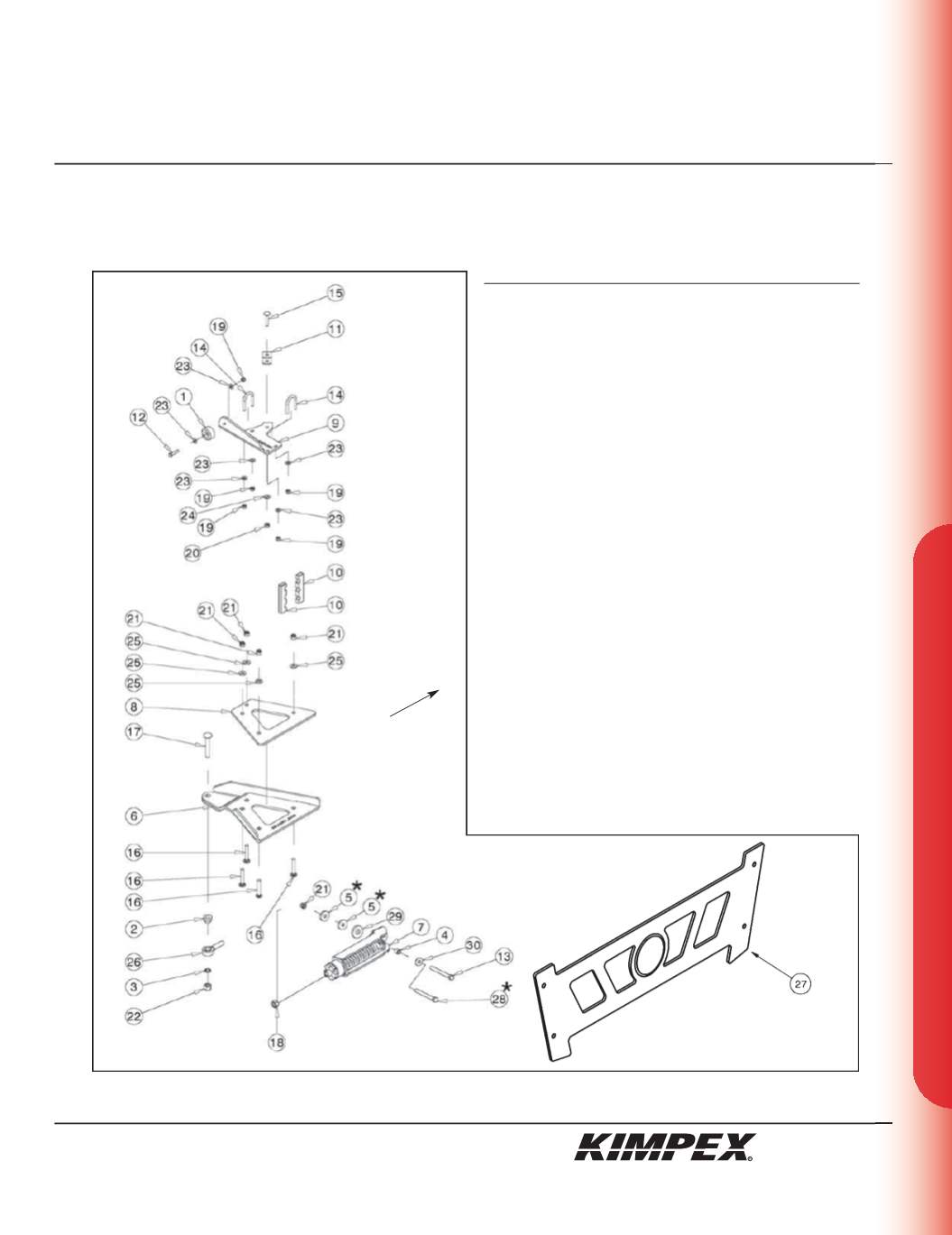

sketch A
LEFT SIDE SHOWN
Front of
the ATV
*
Commander Wide Track and WTX
Models Only.
1/11
