ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374750
FOR " COMMANDER WIDE TRACK, WTX AND TREX UTV " / YAMAHA RHINO
COMMANDER WIDE TRACK AND WTX
REAR ANTI-ROTATION INSTALLATION
(see sketch P)
1)
Assemble the free extremity of the rear anti-rotation
(#
7
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4-1/4”
hex bolt
(#
12
), the
3/8” dia
flat washer (#
18
), the tightening
spacer (#
9
), the
(2)
washers (#
3
), and the
3/8” nc
self-
locking nut (#
16
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual to complete
the installation.

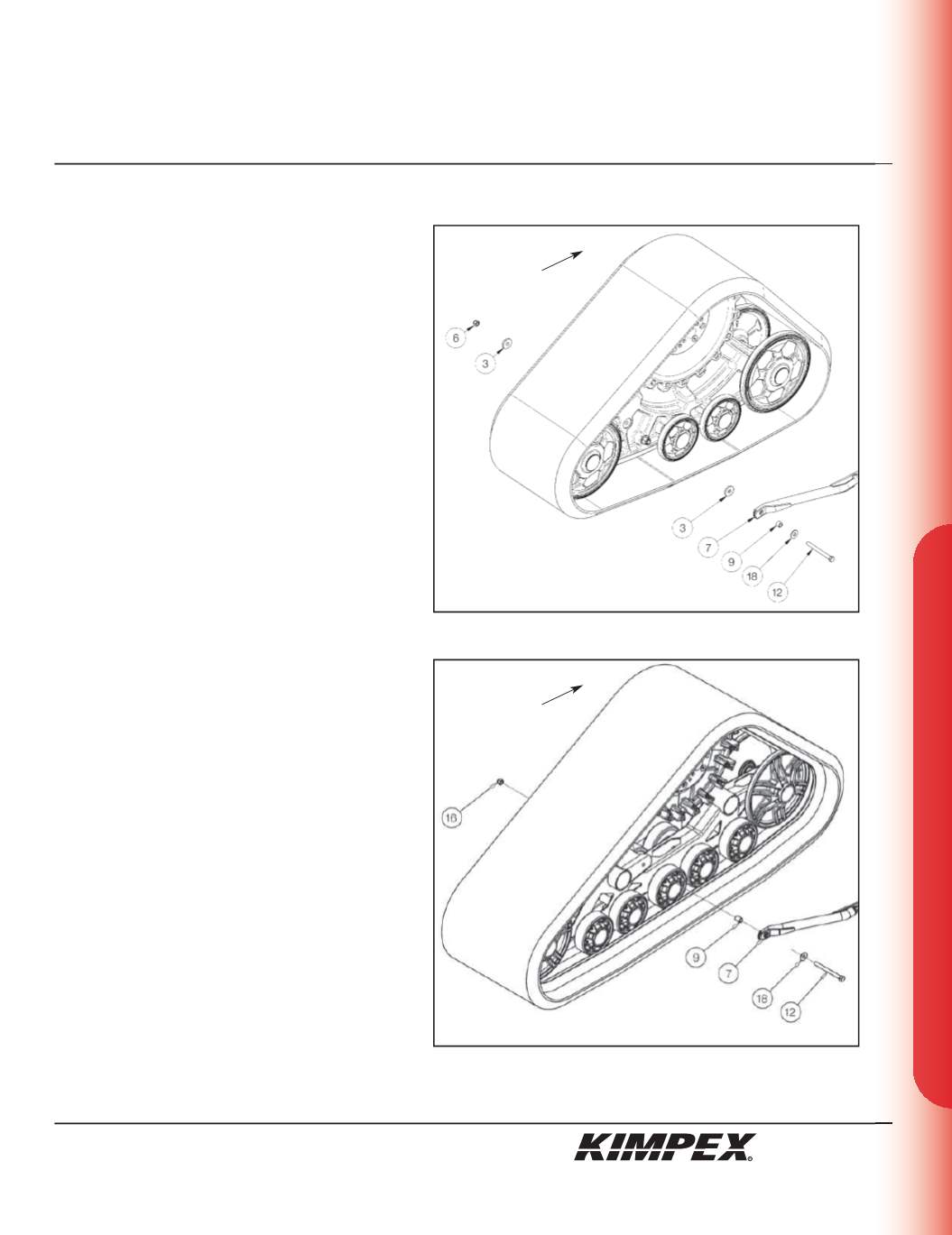

sketch P
LEFT
REAR VIEW
Front of
the ATV
COMMANDER TREX UTV
REAR ANTI-ROTATION INSTALLATION
(see sketch Q)
1)
Assemble the free extremity of the rear anti-rotation
(#
7
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4-1/4”
hex bolt
(#
12
), the
3/8” dia
flat washer (#
20
), the tightening
spacer (#
9
), and the
3/8” nc
self-locking nut (#
16
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual to complete
the installation.
sketch Q
LEFT
REAR VIEW
Front of
the ATV
