MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 375012
FOR " COMMANDER WIDE TRACK, WTX AND TREX 2.0 " / ARCTIC CAT 500, 650
Front of the ATV
sketch F
LEFT
FRONT VIEW

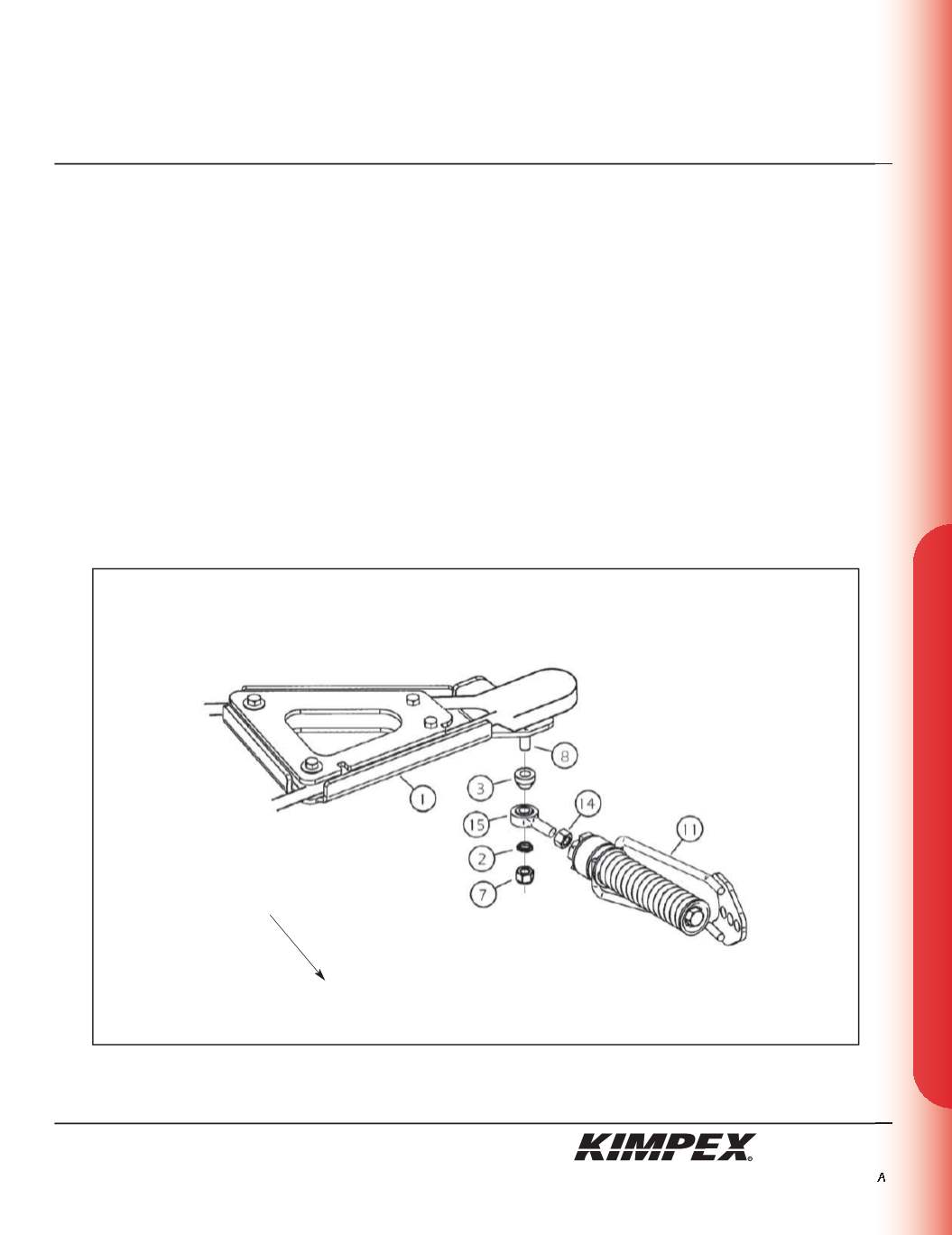

FRONT ANTI-ROTATION INSTALLATION
(see sketch F)
NOTE :
Pay special attention to the orientation given to spacers (#2 and #3) during installation.
1)
Assemble the ball joint (#
15
) and the
1/2” nf
nut (#
14
) to the front anti-rotation assembly (#
11
).
2)
Install the large ball joint spacer (#
3
) with the narrow part facing down onto the
1/2” nc X 2-1/2”
carriage bolt (#
8
) installed in
step 3 of
the “FRONT A-ARM BRACKET INSTALLATION” section.
3)
Install the ball joint of the anti-rotation assembly (#
11
) onto the bolt (#
8
), below the large ball joint spacer (#
3
). Install the short ball joint
spacer (#
2
) with the narrow part facing up, below the anti-rotation assembly (#
11
).
4)
Tighten the assembly with the
1/2” nc
self-locking nut (#
7
). Torque to 55 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and risk
of loss of control over the vehicle, as well as risk of personal injury.
5)
Rotate the anti-rotation assembly (#
11
) towards the center of the ATV to prevent it from interfering with the installation of the track kit.
NOTE :
Refer to the track kit manual for the correct adjustment.
6)
Repeat
steps 1
to
5
for the opposite side.
