STEERING LIMITER KIT
Kimpex
#
375023
For Commander WIDE TRACK, WTX, and TREX UTV Track Kits
MOUNTING INSTRUCTIONS
1
Ref. Description
Item No.
Qty
a
U-bracket
Q2120-20001
2
b
9/16" O.D. X .39" I.D. X .69"
tightening sleeve
Q2212-10093
2
c
5/16" nc X 2" hex bolt
S1711-00516-052 2
d
5/16" nc nut
S4186-10600-022 2

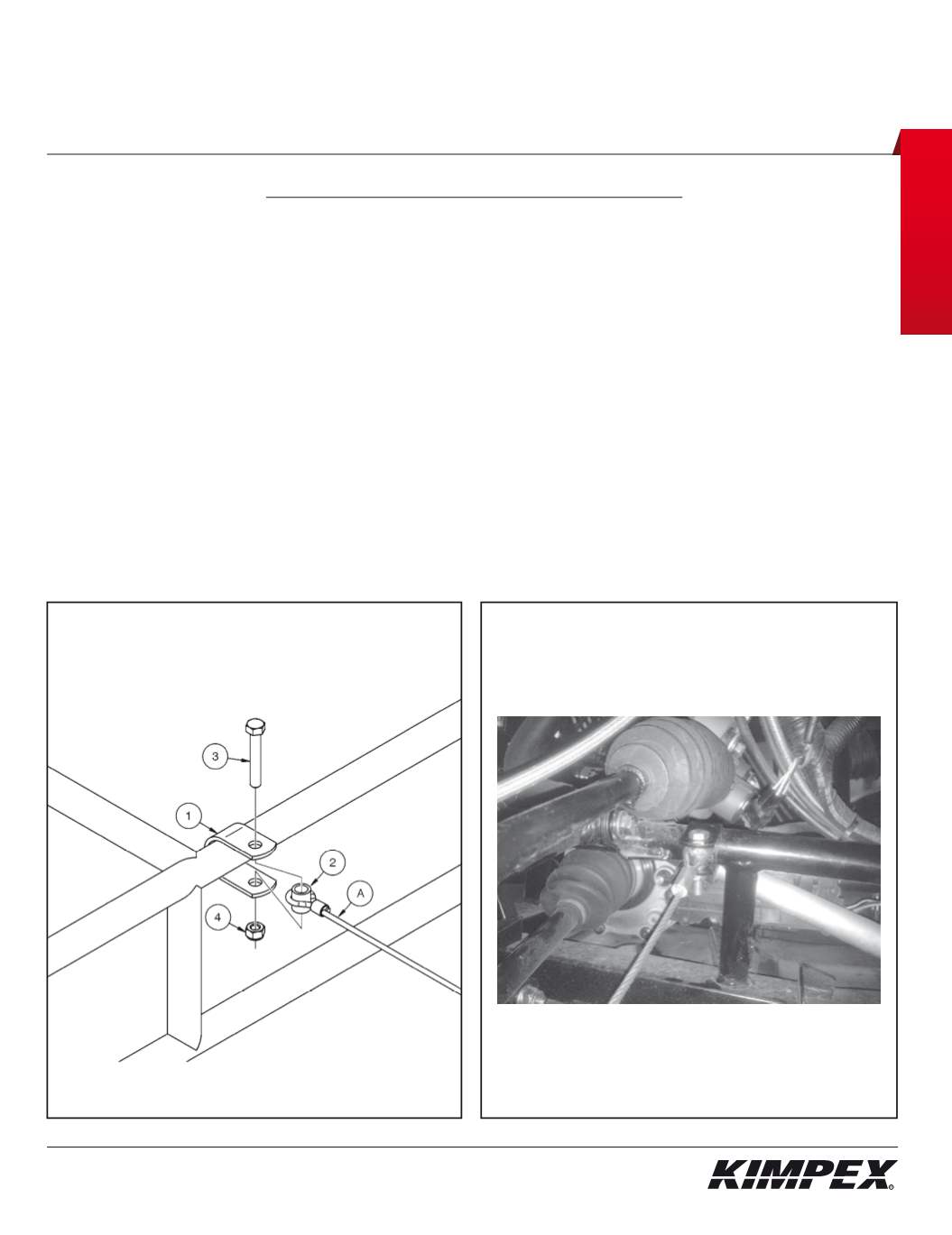

1)
Position the U-bolt
a
onto the tube of the vehicle's frame.
2)
Insert the
9/16" O.D. X .39" I.D. X .69"
tightening sleeve
b
into the eyelet of the limiter cable (#
A
- supplied with the Kit
No.
374040
) and fasten to the U-bolt
a
using the
5/16" nc X 2"
hex bolt
c
and the
5/16" nc
nut
d
. Tighten until the
tightening sleeve
b
does not move.
3)
Repeat steps for the opposite side.
NOTE: Refer to the Track Kit manual for the other end of the limiter cable installation.
