ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 375112
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " / BRP TRAXTER

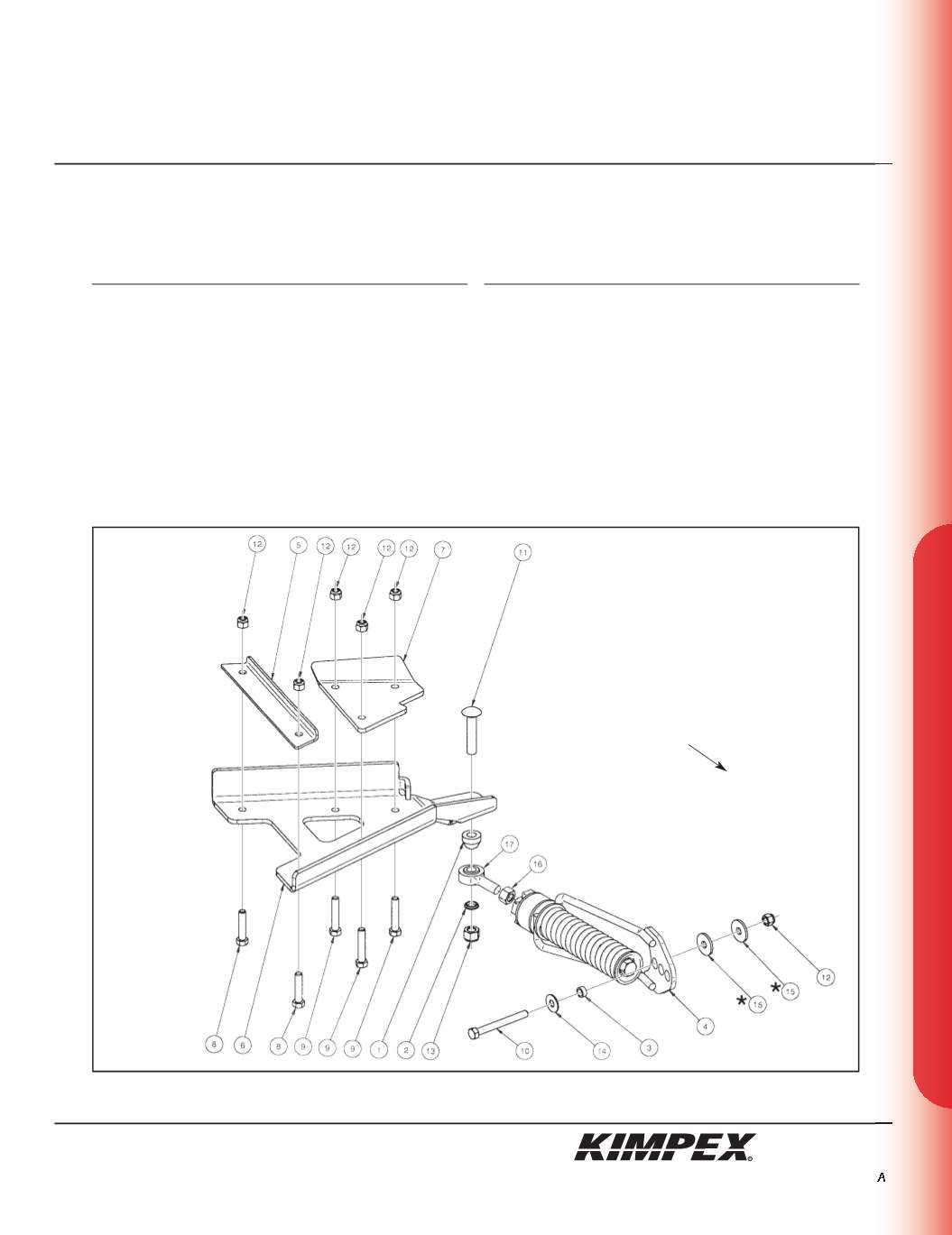

LEFT SIDE VIEW
Front of
the ATV
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Front anti-rotation assembly
2810203-50
2
5
Internal front A-arm clamping plate 2810157-5000
2
6
Front left A-arm bracket
2810263-2000
1
Front right A-arm bracket
2810263-1000
1
7
External front left A-arm
clamping plate
2810183-5000
1
External front right A-arm
clamping plate
2810183-4000
1
Ref. Description
Item No.
Qty
8
3/8” nc X 1-3/4” hex bolt
S1711-00614-052 4
9
3/8” nc X 2” hex bolt
S1711-00616-022 6
10
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
11
1/2” nc X 2-1/2” carriage bolt
S2412-0G040-0A2 2
12
3/8” nc self-locking nut
S4186-10600-022 12
13
1/2” nc self-locking nut
S4186-10800-022 2
14
3/8” dia flat washer
S4612-00600-002 2
15
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
16
1/2” nf nut
S4111-20800-022 2
17
1/2” nf ball joint
S9113-C0500-002 2
sketch A
*
“Commander Trek»
Models Only.
