ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374750
FOR " COMMANDER WIDE TRACK, WTX AND TREX UTV " / YAMAHA RHINO
LIMITER INSTALLATION

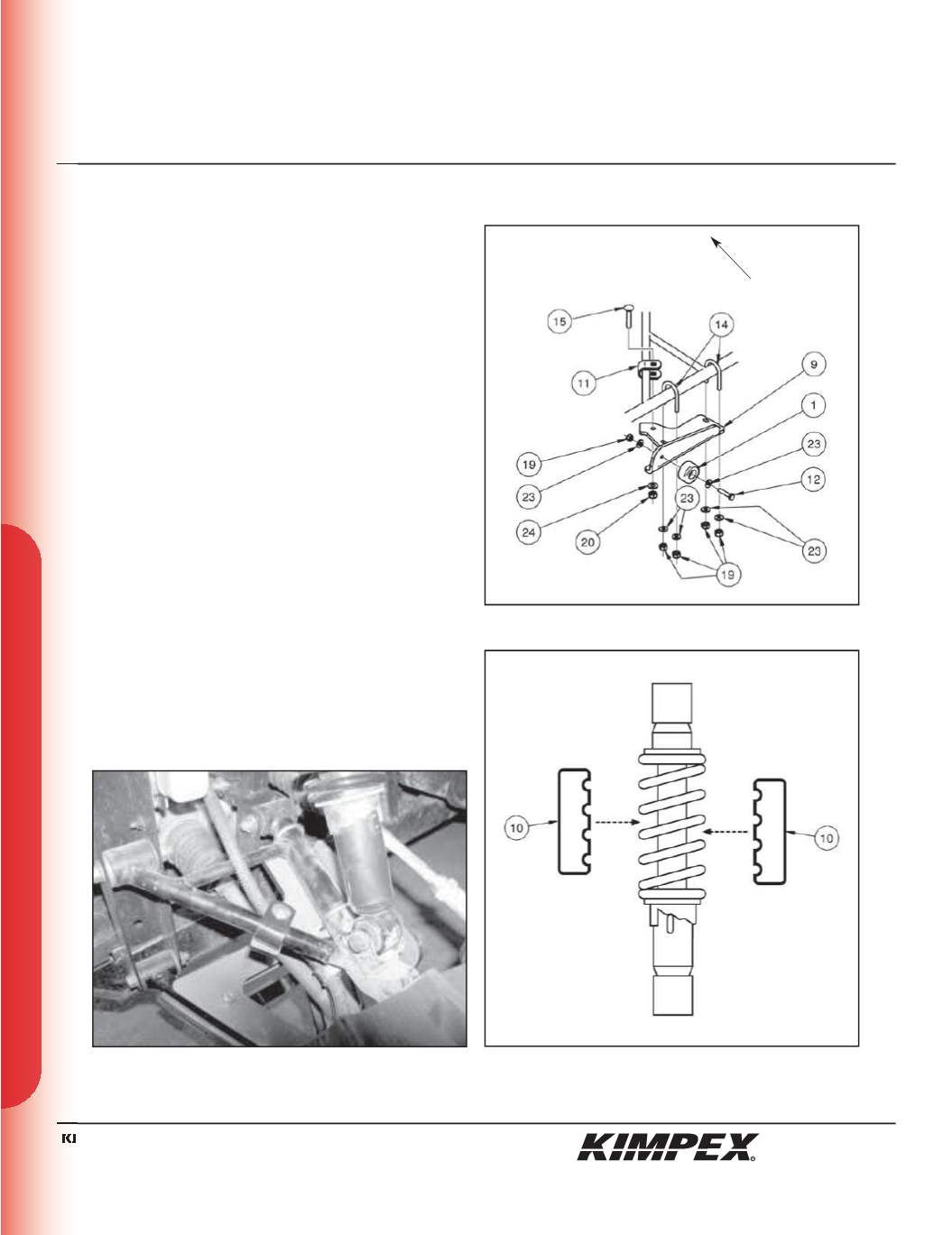

(see sketch G)
1)
Fasten the rubber stopper (#
1
) to the front left limiter bracket
(#
9
) using a
1/4” nc X 1-1/4”
hex bolt (#
12
),
(2) 1/4” dia
flat washers
(#
23
), and a
1/4” nc
self-locking nut (#
19
).
2)
Install the limiter bracket (#
9
) under the upper front a-arm so
that the two parts fit snugly.
3)
Fasten the limiter bracket (#
9
) to the upper front a-arm using
(2) 1/4” nc X 1-1/8”
U-bolts (#
14
),
(4) 1/4” dia
flat washers (#
23
),
(4) 1/4” nc
self-locking nuts (#
19
), and the U-bracket (#
11
), the
5/16” nc X 1-3/4”
carriage bolt (#
15
), the
5/16” dia
flat washer (#
24
),
and the
5/16” nc
self-locking nut (#
20
).
(see sketch H)
4)
Install the
(2)
spring limiters (#
10
) on both sides of the
suspension spring.
5)
Reinstall the front CV shield removed during
step 2 of the
“FRONT A-ARM BRACKET INSTALLATION” section
using
the original hardware.
6)
Repeat
steps 1
to
5
for the opposite side.
sketch F
LEFT
FRONT VIEW
sketch G
Front of the ATV
6/11
