MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374740
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " / YAMAHA RHINO
REAR A-ARM BRACKET INSTALLATION
(see sketch I)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the rear of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Place the rear left A-arm bracket (#
5
) below the rear lower a-arm
so that the two parts fit snugly.
4)
Install the rear A-arm clamping plate (#
6
) above the lower front
a-arm and fasten it to the A-arm bracket (#
5
) using the
(5)
3/8” nc X 2-1/2”
carriage bolts (#
13
), the
3/8” nc X 2-1/2”
hex bolt
(#
11
), and the
(6) 3/8” nc
self-locking nuts (#
16
).
Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
(see sketch J)
5)
Install the
(2)
spring limiters (#
8
) on both sides of the suspension
spring.
6)
Repeat
steps 2
to
5
for the opposite side.

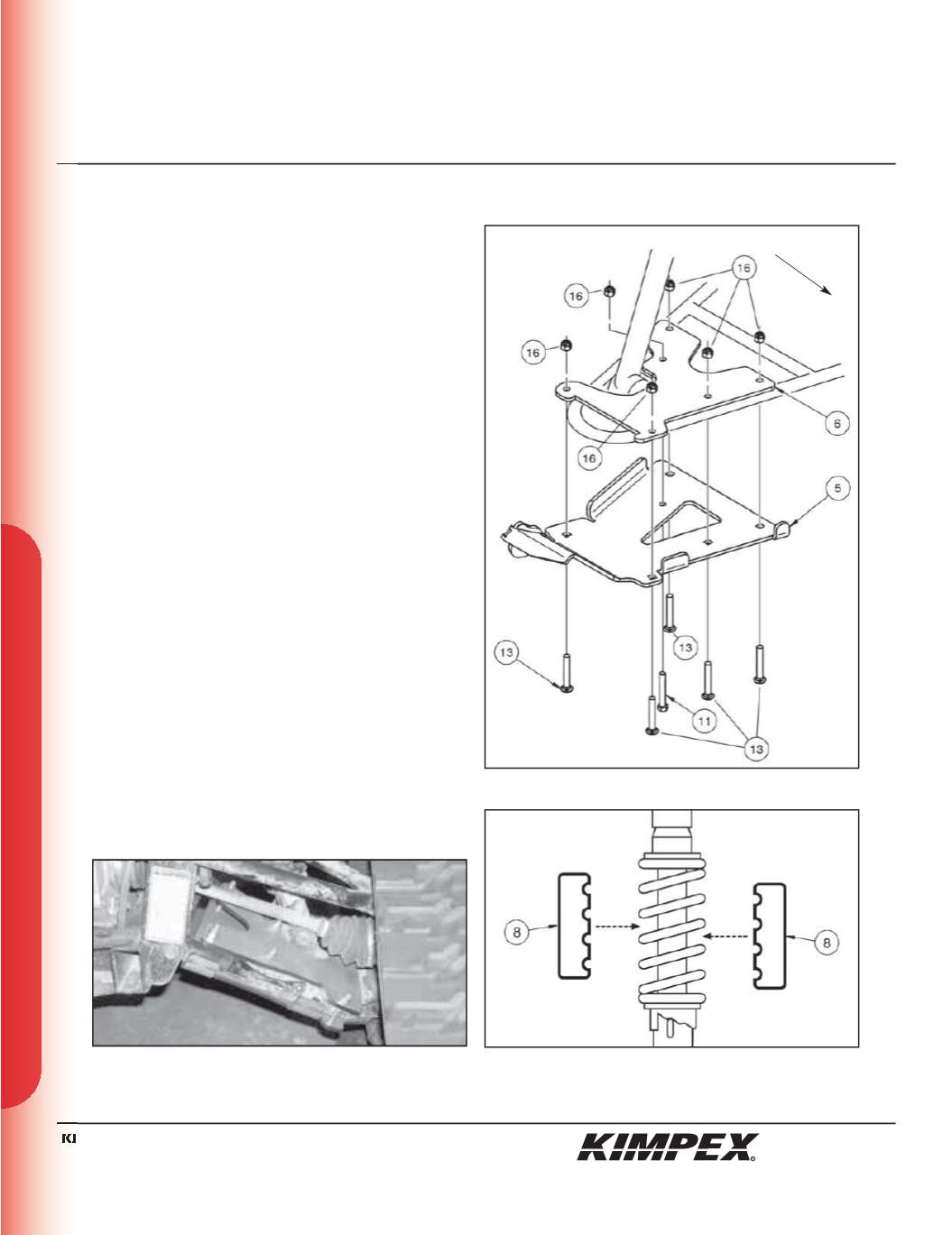

sketch I
LEFT
REAR VIEW
Rear of the ATV
sketch J
8/10
