ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374730
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK " / YAMAHA RHINO
sketch M
sketch N

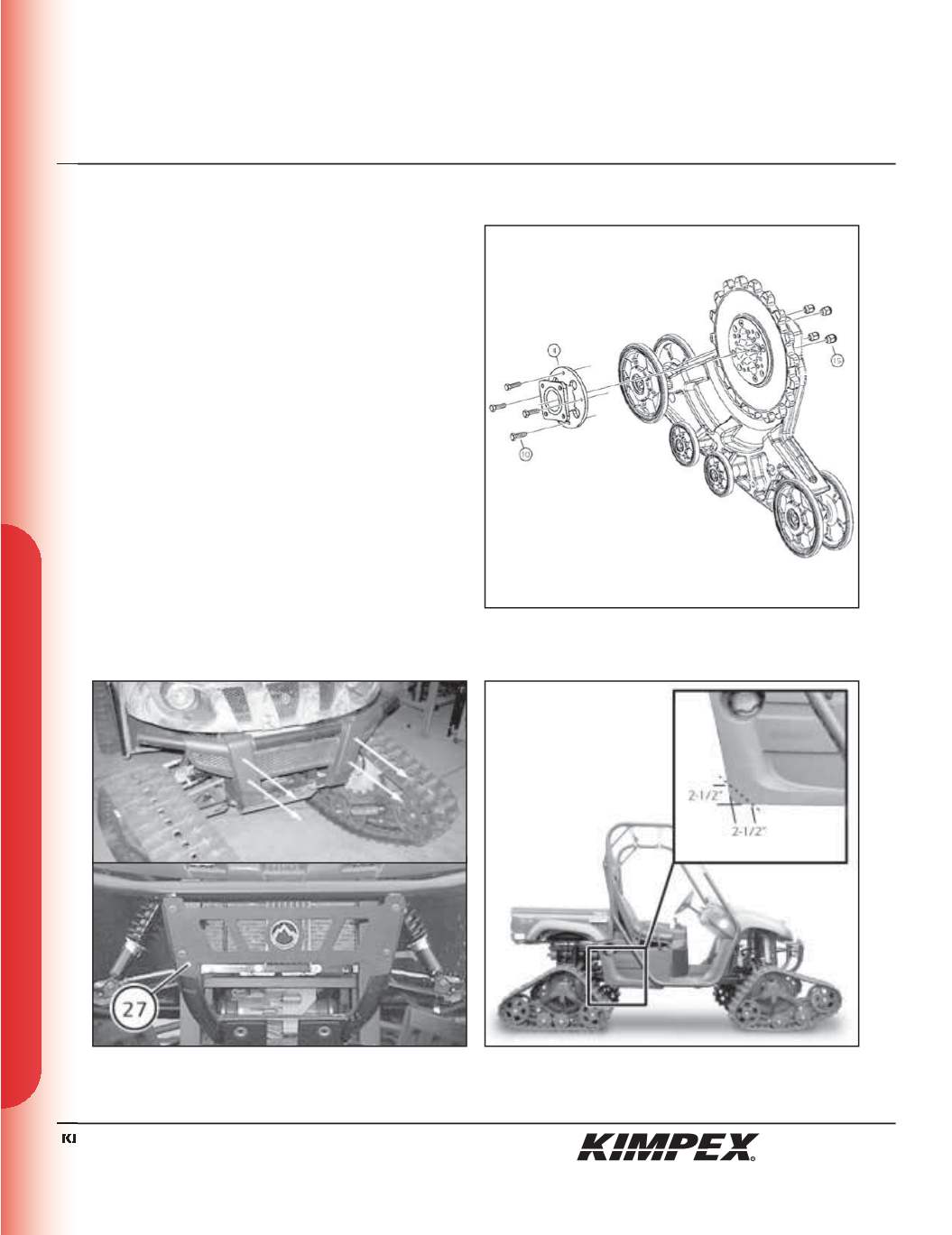

MAIN AXLE ADAPTER INSTALLATION (see sketch L)
1)
Apply a threadlocker (Loctite) on bolt threads and install the
(4)
M10 X 30mm
hex bolts (#
10
) into the threaded holes of the main axle
adapter (#
4
) as illustrated.
2)
Position and fasten the main axle adapter (#
4
) onto the hub of the
vehicle using the original wheel nuts. Apply the tightening torque
specified in your ATV owner’s manual.
3)
Position and fasten the Track Kit to the main axle adapter (#
4
) using
the
(4) M10
wheel nuts (#
15
).
Torque to 25 ft-lbs.
NOTE :
Recheck torque of the wheel nuts (#15) after one
hour of use.
4)
Repeat
steps 1
to
3
for the opposite side.
PROTECTIVE PLATE INSTALLATION
(see sketch M)
1)
Remove the original bolts retaining the front plastic protective plate
to the vehicle.
2)
Position and fasten the protective plate (#
27
) using the bolts
removed in
step 1
.
(see sketch N)
3)
To allow rear track kit to move freely, cut the rear fenders as illustrated.
