ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374750
FOR " COMMANDER WIDE TRACK, WTX AND TREX UTV " / YAMAHA RHINO
FRONT ANTI-ROTATION INSTALLATION
(see sketch E)
NOTE :
Pay special attention to the orientation given to
spacers (#2 and #3) during installation.
1)
Assemble the ball joint (#
26
) and the
1/2” nf
nut (#
18
) to the
front anti-rotation assembly (#
7
).
2)
Install the large ball joint spacer (#
2
) with the narrow part facing
down onto the
1/2” nc X 3”
carriage bolt (#
17
) installed in
step 3
at the “FRONT A-ARM BRACKET INSTALLATION” section
.
3)
Install the ball joint of the anti-rotation assembly (#
26
) onto the
bolt (#
17
), below the large ball joint spacer (#
2
).
Install the short ball joint spacer (#
3
) with the narrow part facing
up, below the anti-rotation assembly (#
7
).
4)
Tighten the assembly with the
1/2” nc
self-locking nut (#
22
).
Torque to 65 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened,
there is a risk of them becoming loose, of parts detaching
and risk of loss of control over the vehicle, as well as risk
of personal injury.
5)
Rotate the anti-rotation assembly (#
7
) towards the center of the
vehicle to prevent it from interfering with the installation of the
Track Kit.
NOTE :
Refer to the Track Kit manual to complete the
installation.
6)
Repeat
steps 1
to
5
for the opposite side.

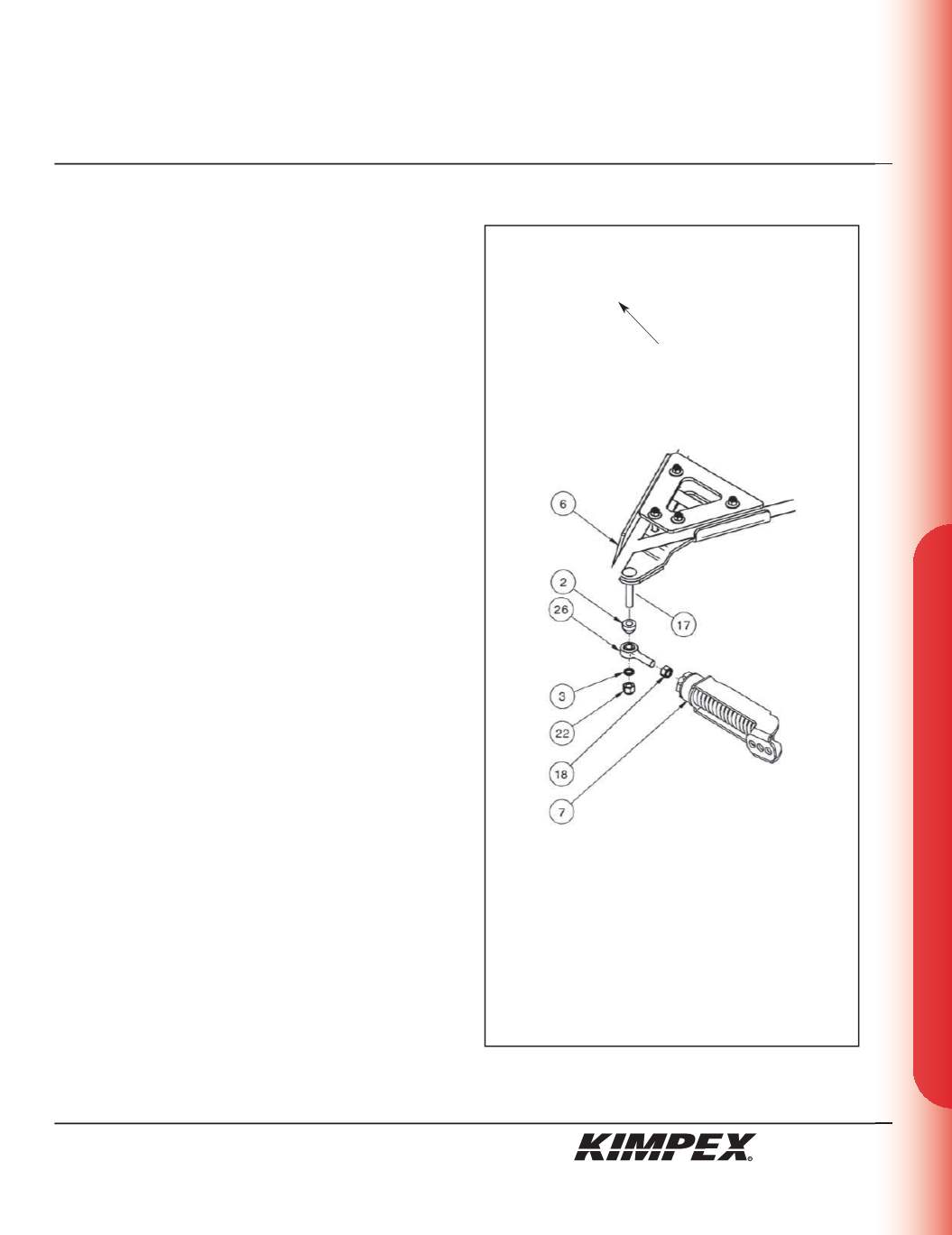

sketch E
LEFT
FRONT VIEW
Front of the ATV
5/11
