ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374430
FOR " COMMANDER WIDE TRACK " AND " COMMANDER TREK HD " TRACK KIT / POLARIS RANGER RZR
REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Spacer
201197
2
2
Rubber bushing
2510039-1-30-6000 6
3
Bushing spacer tube
2510039-3-20-2000 2
4
Support washer
2510235-10-1000 4
5
Main axle adapter
2810153-5000
2
6
3/8” nf “T” nut
2810153-9000
8
7
Rear anti-rotation tube
2810203-7000
2
8
Rear interior A-arm clamping plate
(2 holes)
2810247-3-2000
4
9
Rear exterior A-arm clamping plate
(3 holes)
2810247-3-3000
2
10
Rear left A-arm bracket
2810247-4-1000
1
Rear right A-arm bracket
2810247-3-1000
1
11
Tightening spacer
Q2212-10082
2
12
3/8” nc X 1-1/4” hex bolt
S1711-00610-052 2
13
3/8” nc X 4” hex bolt
S1711-00632-052 2
Ref. Description
Item No.
Qty
14
3/8” nc X 2-1/4” carriage bolt
S2412-0E036-0A2 12
15
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000 4
16
5/8” nc nut
S4111-11000-022 2
17
3/8” nc self-locking nut
S4186-10600-022 16
18
5/8” nc self-locking nut
S4186-11000-022 2
19
3/8” dia lock washer
S4511-00600-002 2
20
3/8” dia flat washer
(yellow zinc plated)
S4612-00600-0S1
2
21
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
22
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
23
3/8” dia flat washer
S4612-00600-002 4
24
3/8” nc X 2-3/4” hex bolt
S1711-00622-052 2

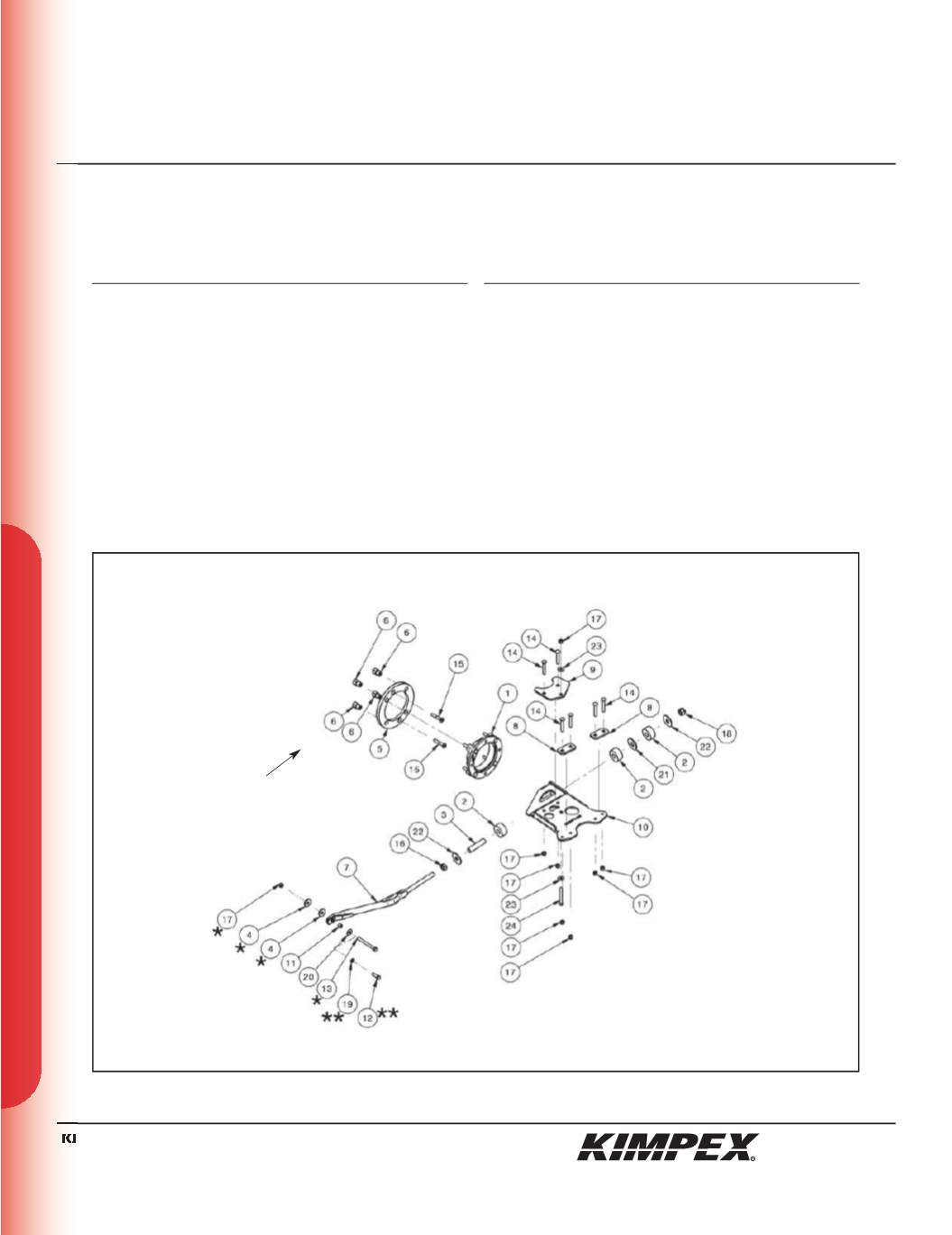

sketch B
*
“Commander Wide Track” Models Only.
**
“Commander Trek HD” Models Only.
Front of
the ATV
LEFT SIDE VIEW
