FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374360
For “Commander Wide Track” and “Commander Trex UTV” Track Kits
MOUNTING INSTRUCTIONS
12
COMMANDER WIDE TRACK
REAR ANTI-ROTATION INSTALLATION
(see sketch M)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4-1/4”
hex bolt
(#
10
), the
3/8” dia (yellow zinc plated)
flat washer (#
18
), the
tightening spacer (#
7
), the support washers (#
3
), and
the
3/8” nc
self-locking nut (#
14
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual for the
correct adjustment.

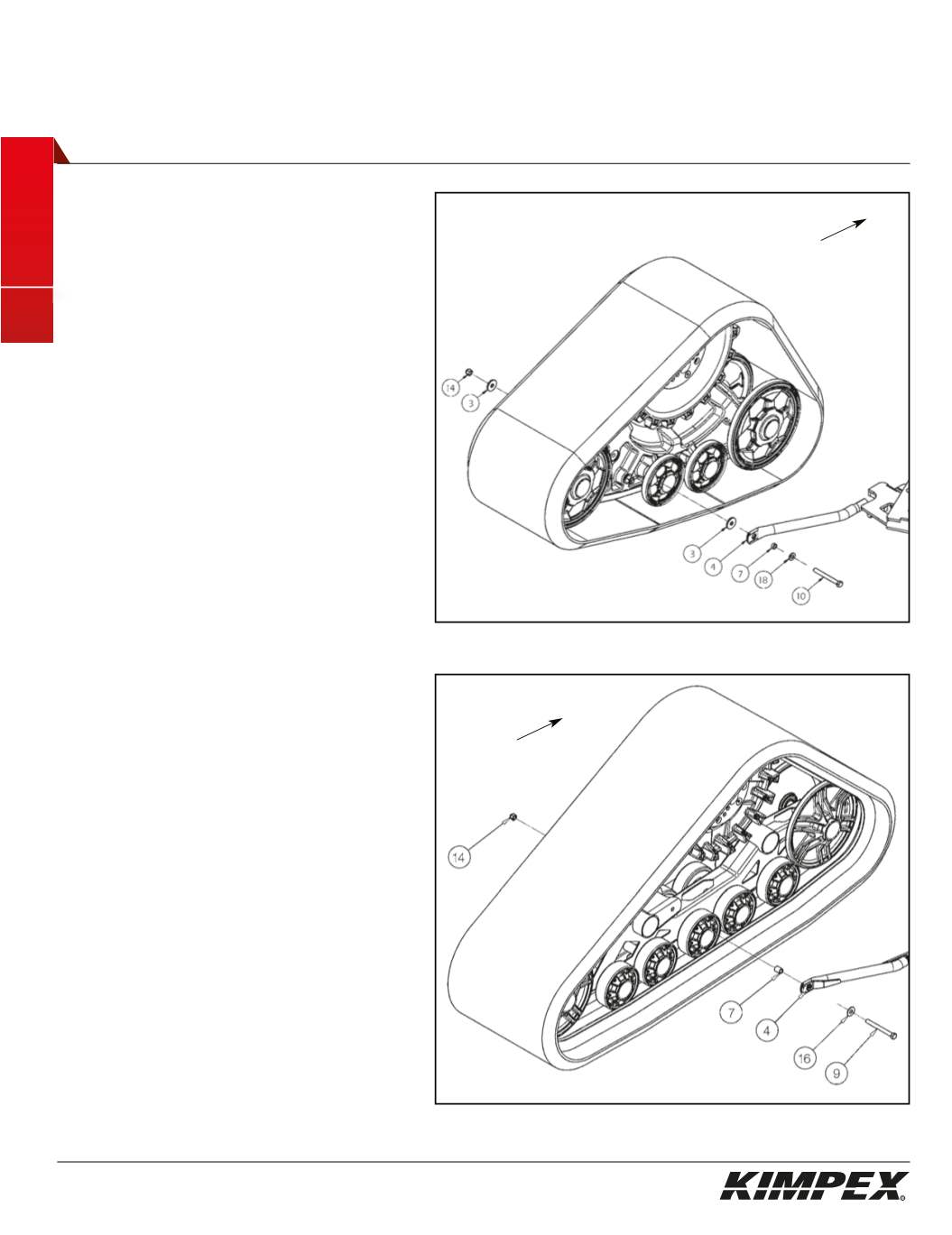

sketch M
LEFT
REAR VIEW
Front of the ATV
COMMANDER TREX UTV
REAR ANTI-ROTATION INSTALLATION
(see sketch N)
1)
Assemble the free extremity of the rear anti-rotation
(#
4
) to the hole made for this purpose in the plastic
frame of the Track Kit using the
3/8” nc X 4-1/2”
hex bolt
(#
9
), the
3/8” dia
flat washer (#
16
), the tightening
spacer (#
7
), and the
3/8” nc
self-locking nut (#
14
).
Apply a tightening torque of 23 ft-lbs.
2)
Repeat
step 1
for the opposite side.
NOTE :
Refer to the track kit manual for the
correct adjustment.
sketch N
LEFT
REAR VIEW
Front of the ATV
