FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374360
For “Commander Wide Track” and “Commander Trex UTV” Track Kits
MOUNTING INSTRUCTIONS
9
REAR A-ARM BRACKET INSTALLATION
(see sketch J)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode and the transmission in
neutral, and block the wheels.
1)
Raise the rear of the vehicle off the ground and remove the
wheels.
WARNING :
When the vehicle is raised, make sure that
it is properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the rear left CV shield. Do not discard. They will be
reinstalled later.
3)
Place the rear left A-arm bracket (#
6
) below the rear lower A-arm
so that the two parts fit snugly
4)
Install the
(4) 5/16” nc X 2-1/4”
U-bolts (#
11
) above the lower front
A-arm and fasten it to the A-arm bracket (#
6
) using the
(8)
5/16” dia (zinc plated)
flat washers (#
17
) and the
(8) 5/16” nc
self-locking nuts (#
21
). Torque to 20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
5)
Repeat
steps 2
to
4
for the opposite side.

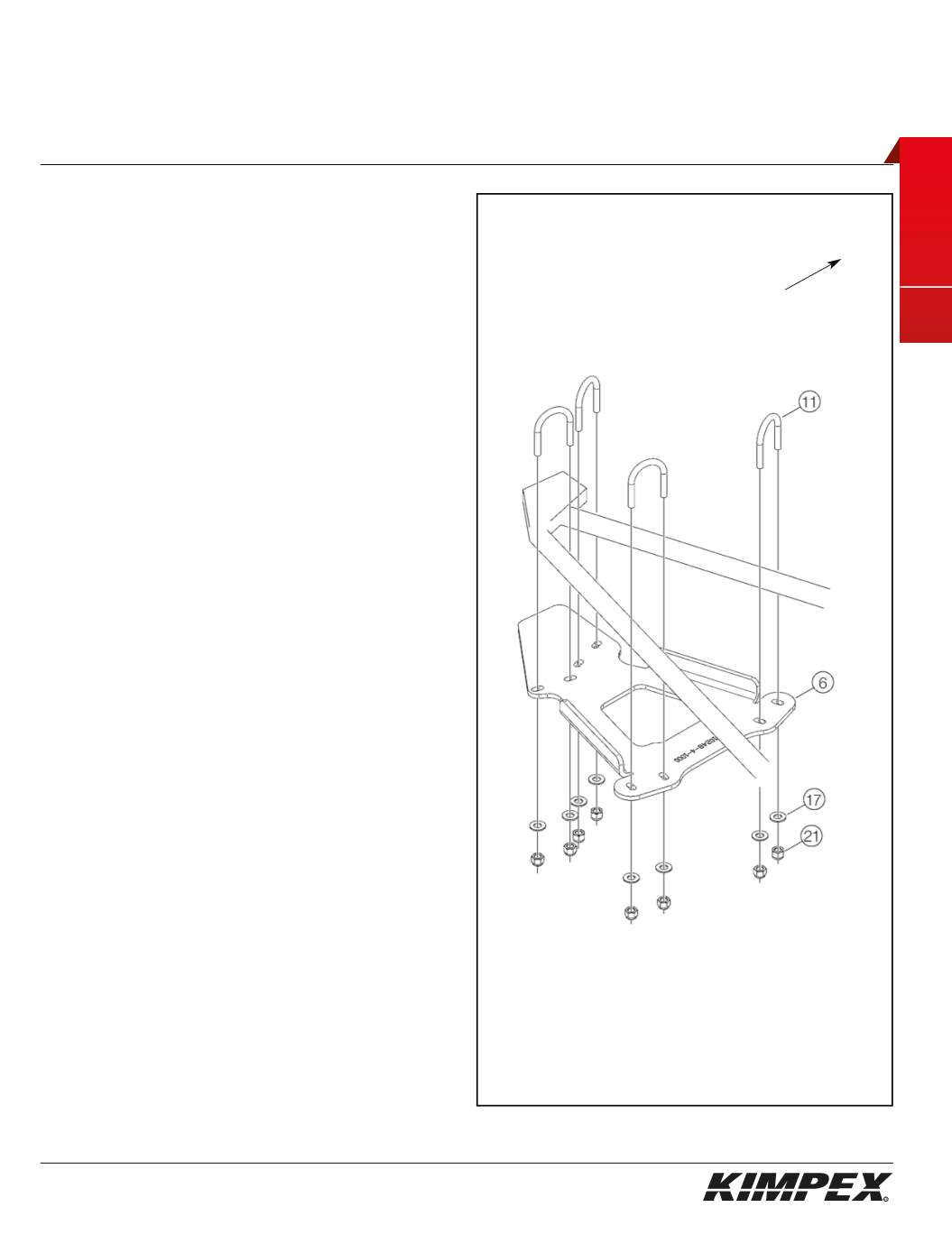

sketch J
LEFT
REAR VIEW
Front of the ATV
